Insulating Fire Brick IFB 2800

Yufengrec Fire Brick are made of high-grade refractory powder and material in good purity . During the process of production , organic and multiple filling materials are injected according to there required proportion ,the brick is compressed in vacuum and sintered under high temperature , for use in applications from 2300ºF (1260ºC) to 3000ºF (1650ºC).
Each type is formulated to meet specific thermal and physical requirements, and after firing is machined to precise tolerances. Made from high purity refractory clays and other ceramic raw materials, these IFB contain carefully graded organic filler which is burned out during manufacture to give a uniform, controlled pore structure.

Classifications Temperature :
Density :
Material:
Standard Size :
Packing:
Availability:
Quantity:
sharethis sharing button
  • JM2800

  • YUFENGREC

  • 69022000

屏幕快照 2022-03-09 上午8.52.40

Insulating Fire Brick JM28 With Light Weight For Furnace Insualtion


YUFENGREC®Insulating Fire Brick are made of high-grade refractory powder and material in good purity . During the process of production , organic and multiple filling materials are injected according to there required proportion ,the brick is compressed in vacuum and sintered under high temperature , for use in applications from 2300ºF (1260ºC) to 3000ºF (1650ºC).


Each type is formulated to meet specific thermal and physical requirements, and after firing is machined to precise tolerances. Made from high purity refractory clays and other ceramic raw materials, these IFB contain carefully graded organic filler which is burned out during manufacture to give a uniform, controlled pore structure.


Key Features

  • High temperature insulating

  • Excellent strength and thermal stability

  • Low heat storage

  • High purity

  • Excellent thermal conductivity


Applications:

  • Atmosphere furnace

  • Forge furnaces

  • Ethylene furnace sidewalls

  • Ceramic kilns

  • High temperature back-up insulation

  • Carbon baking furnaces

  • High temperature kiln linings

  • Removable furnace doors

Packed in carton box :

Brick are paved inside the cartons and normally  8 or 10 pcs of brick per carton box , this way of package is suitable for the procurement  in small quantity


Packed in wooden pallet

Bricks are paved onto the pallet in a row ,each layer shall be separated and the wooden case is wrapped by film , the cardboard around the four  side of pallet to protect bricks during long transportations



YF-IFB2800

Classification Temp.

ASTM C155-97

1540 ℃

Bulk Density

ASTM C134-95

900 kg/m3

Cold Crushing Strength

ASTM C133-97

2.8  MPa

Modulus of Rupture

ASTM C133-97

1.8 MPa

Permanent Linear Change

ASTM C210-95

%

-0.3

℃xh

1510 x 24

Thermal Conductivity

ASTM C182-88

400℃

0.30


600℃

0.32


800℃

0.35


1000℃

0.38


1200℃

0.39

Chemical Analysis


Al2O3

64%

Fe2O3

0.6%

SiO2

33%

K2O+Na2O

0.8%

The data are average results of test under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation.

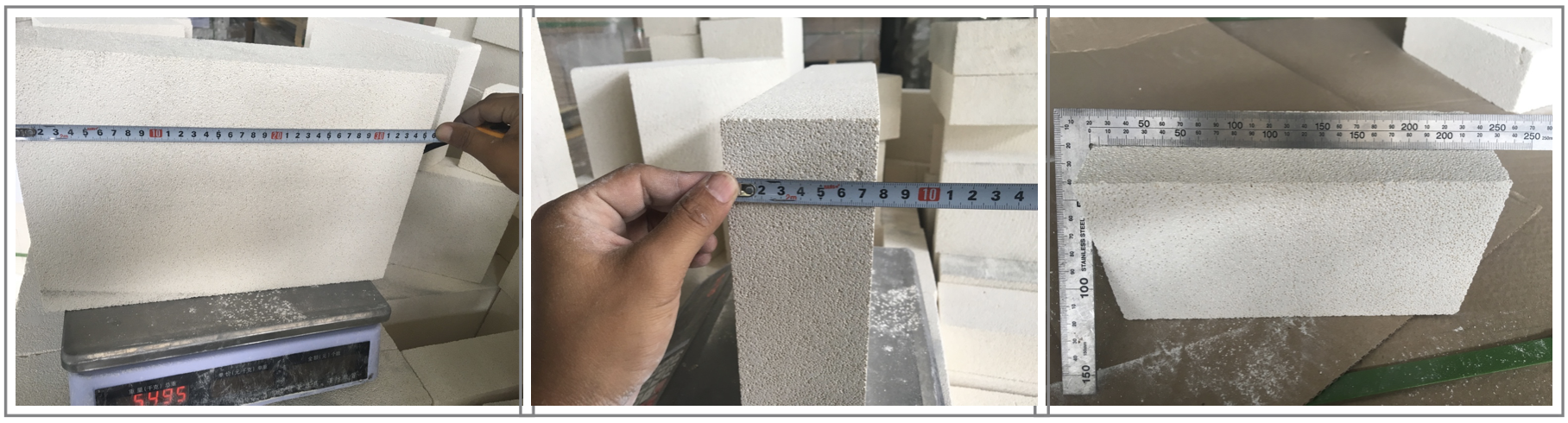

QC Inspections

屏幕快照 2022-05-20 下午2.57.47

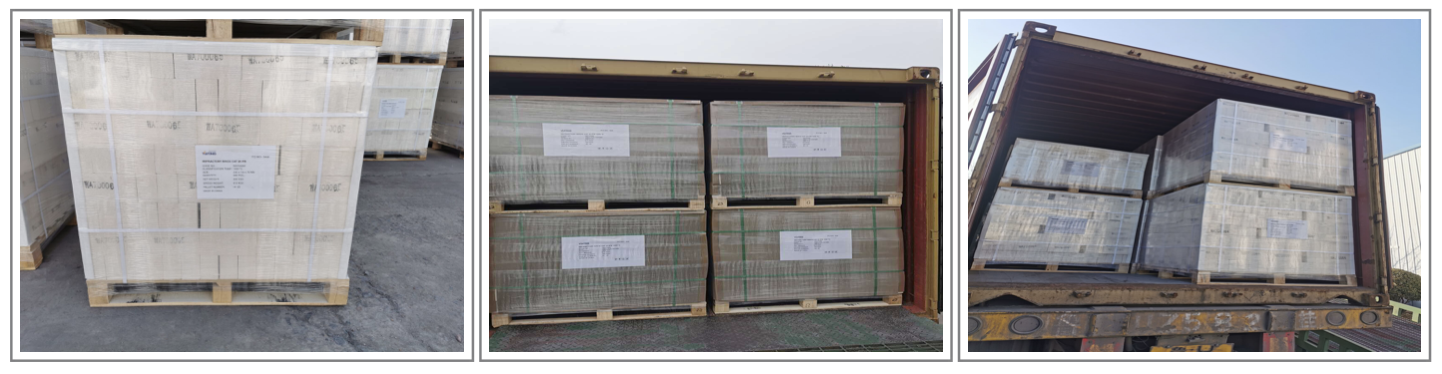

Packing and Loading

保温砖装运
