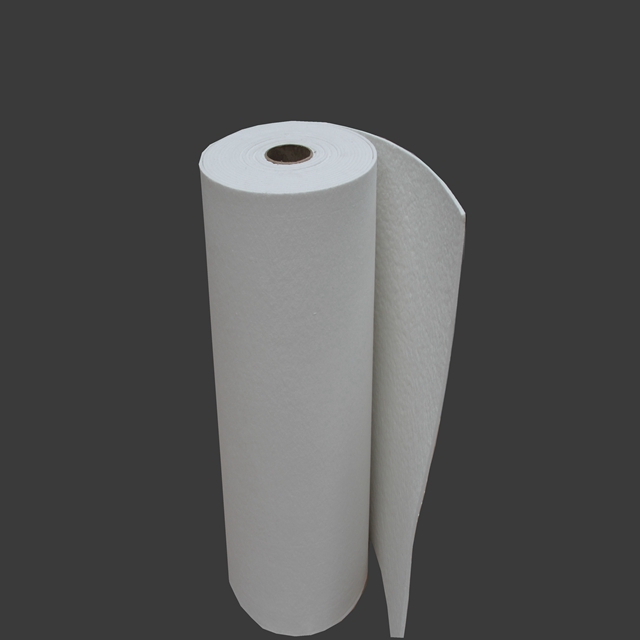

1100C Soluble Fiber Paper ,1300 Soluble Fiber Paper
YUFENGWOOL®
68061010
Yufeng Wool® Soluble Fiber Paper based on a calcium magnesium silicate chemistry. Which meets European regulatory requirements (Directive 97/69/EC)
It is recommended for continuous use at temperature up to 1000 ℃.
Soluble Ceramic fiber paper are made of soluble fiber material , which contains little sediment, High quality paper processed by Slurring ,Removing residue ,Mixing slurry ,Long-mesh shaping, Vacuum , Dehydrating, Drying , Cutting and Rolling .
Standard Size
Width: 610 mm , 1220 mm
Thickness : 1 -6 mm
Special size can be customized
Standard Size
CARTONS
Key Features
* Body-soluble
* Not contain asbestos,causticity resistance ,is not action with molten aluminum
*Low thermal conductivity
*Thermal shock resistance
*Excellent flexibility
*Excellent matching process
*Excellent flame resistance
Typical Applications
*Replacement of asbestos paper
*One-time consumable insulating applications
*Back-up lining for metal troughs
*Car field for insulating
*Hot top lining
*Thermal and electrical insulation
*Upgrade for fire glass paper and blanket
Technical Data
Unit | SOLUBLE FIBER PAPER | |||
Classification Temperature | ℃ | 1200 | ||
Max Working Temperature | ℃ | 1050 | ||
Color | White | |||
Moisture Content | % | ≤1 | ||
Organic Content | % | ≤12 | ||
Theoretical Density | Kg/M3 | 200 +/-15 | ||
Compressive Strength | Mpa | ≥ 0.3 | ||
Thermal Conductivity at mean Temp. 500 ℃ | W/m.k | ≤0.153 | ||
Shrinkage on Heating | % | 1000 ℃ x 24 h ≤ -4 | ||
The data are average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety applications or materials ,please refer to the work practices and material safety data sheet
