Ceramic Fiber Board 2300℉ 2600℉ for Industry Furnace Heat Thermal Insualtion

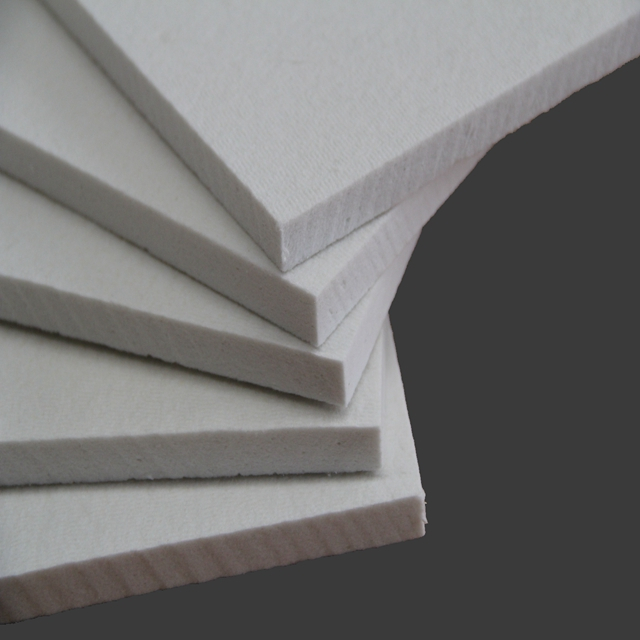

YUFENG WOOL® Ceramic Fiber Insulation Board are produced through wet forming process of ceramic fiber and binder . These ceramic fiber board are vacuum formed products , featured with High temperature Stability ,low thermal conductivity ,consistent density , excellent resistance against thermal shock and chemical attacks .

The Ceramic Fiber Board are available in a variety of temperature rating from
1100ºC (2012 ° F) to 1430ºC (2600 ° F)


Standard Thicknesses: 3 - 100 mm available

Standard Length and Widths:
900 x 600 mm , 1000 x 600 mm
1000 x 1000 mm , 1200 x 1000 mm
(any size can be customized )

Standard Packaging: Carton Boxes or Pallet

Size:
Material:
Quantity:
  • HP Ceramic Fiber Board, HZ Ceramic Fiber Board
  • YUFENGWOOL®
  • 68061010

YUFENG WOOL® Ceramic Fiber Insulation Board are produced through wet forming process of ceramic fiber and binder . These ceramic fiber board are vacuum formed products , featured with High temperature Stability ,low thermal conductivity ,consistent density , excellent resistance against thermal shock and chemical attacks .


The Ceramic Fiber Board  are available in a variety of temperature rating from

1100ºC (2012 ° F) to 1430ºC  (2600  ° F)


Standard Thicknesses: 3 - 100 mm available


Standard Length and Widths:

 900 x 600 mm ,    1000 x 600 mm

1000 x 1000 mm , 1200 x 1000 mm


Key Features

*Low thermal conductivity,save fuel

*Very low heat storage.fast heat and cool down reducing cycle times

*Excellent thermal shock resistance

*Resistant to gas erosion

*Resistant to most chemical attacks

*Easy to cut , handle and install

*Low Sound transmission

*Resist penetration by molten aluminum and other non-ferrous metal

*Contains no asbestos


Typical Applications

*Refractory lining for industrial ,furnace in wall ,roofs , doors , stacks ,etc

 *Combustion chamber liners ,boilers and heaters

 *Back up insulations for brick and monolithic refractories

 *Transfer of molten aluminum and other non-ferrous metal

 *Expansion joint board

 *Barrier against flame or heat

  *Hot face layer for high velocity or abrasive      furnace atmosphere Etc …

 *Kiln car insulation and seals

 *Continuous and batch kilns

 *Power Generation


Typical Technical Data

Item

Unit

YUFENG WOOL® STD

YUFENG WOOL®  HP

YUFENG WOOL® HZ

Bulk Density

Kg/M3

280/300/320

280/300/320

280/300/320

Classification Temperature

1260

1260

1430

Max Service Temperature

1000

1100

1350

Water Content

%

≤ 1

≤ 1

≤ 1

Permanent Linear Change

1000 ℃ x 24 hrs ≤ -3

1100 ℃ x 24 hrs ≤ -3

1350 ℃ x 24 hrs ≤ -3

Thermal Conductivity





200℃

W/m.k.

0.07

0.07

0.08

400℃

W/m.k.

0.11

0.11

0.11

500℃

W/m.k.

0.13

0.13

0.13

600℃

W/m.k.

0.10

0.15

0.15

Cold Crushing Strength

MPa

0.1-0.3

0.1-0.3

0.1-0.3

Loss of Ignition

wt %

≤7

≤ 7

≤ 7

The data are average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety applications or materials ,please refer to the work practices and material safety data sheet
