Oxide bonded Silicon Carbide (OSiC) Kiln Furniture

Oxide bonded Silicon Carbide (OSiC) Kiln Furniture

Name: Oxide bonded Silicon Carbide (OSiC) Kiln Furniture
Brand: YUFENGREC
Rating: 5.0 (32 reviews)

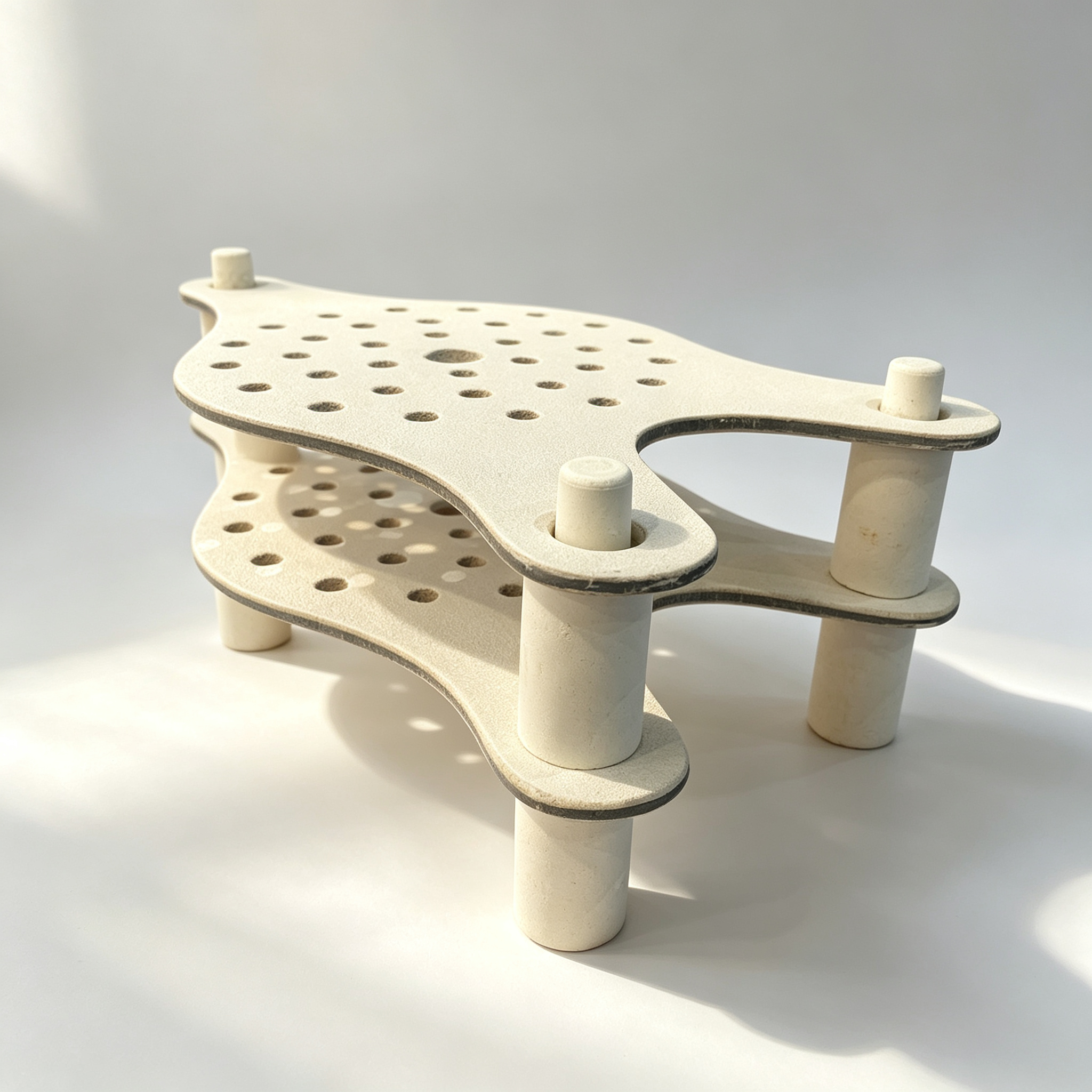

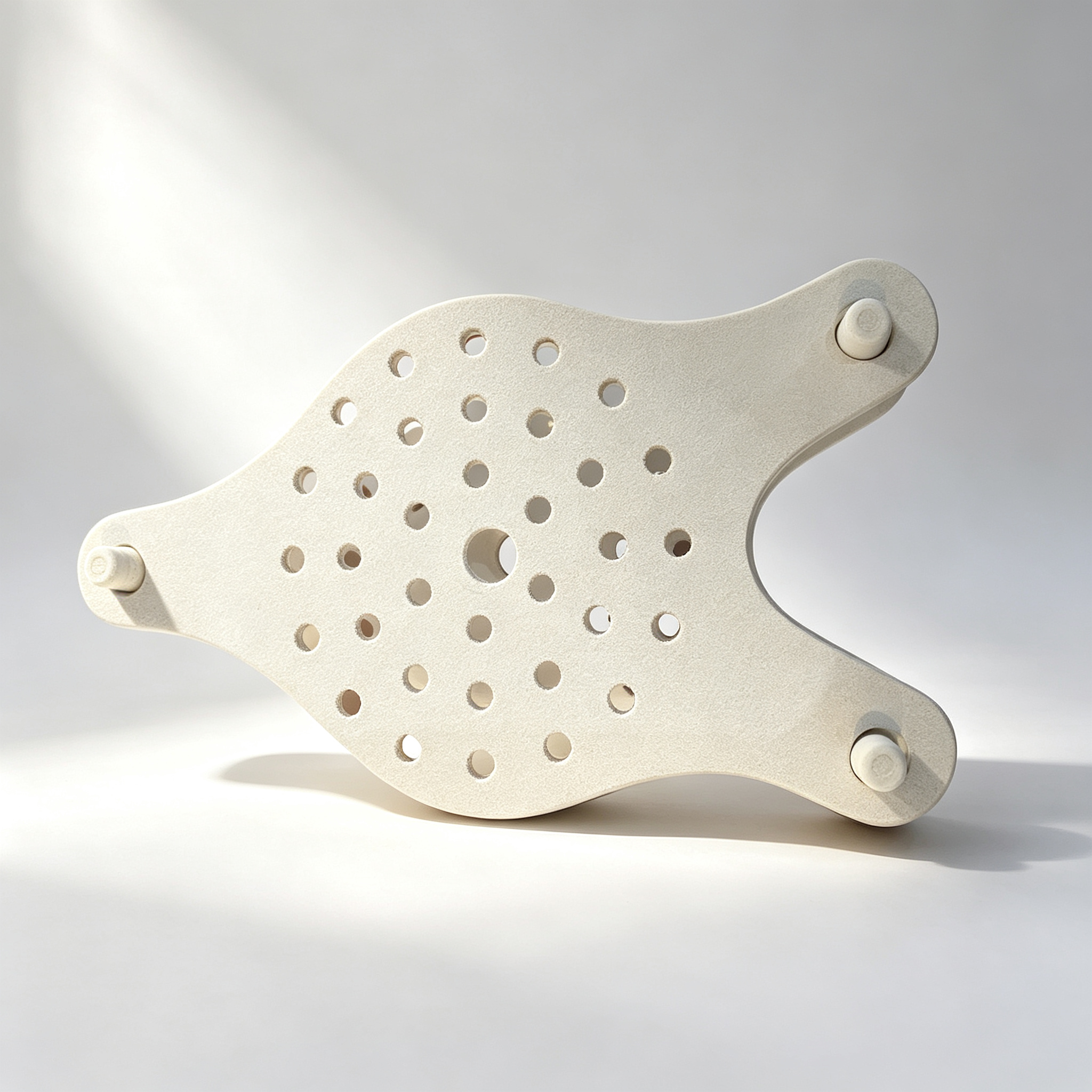

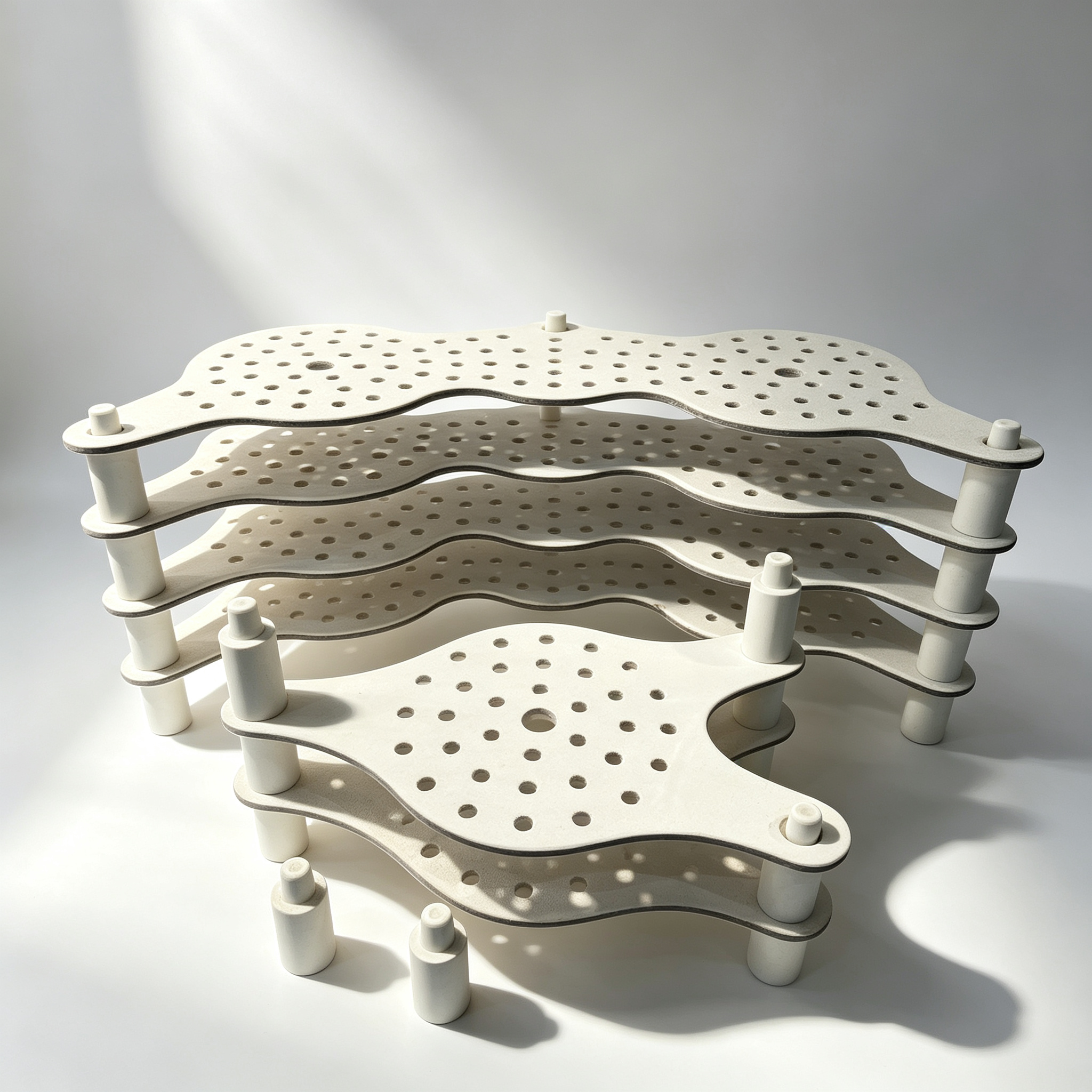

Oxide Bonded Silicon Carbide (OBSIC) Kiln Furniture with many shape avaiable ,such Batts Plates, Shelves, Setter , etc.
The reason for choosing OBSIC Kiln Furniture is due to their property of exceptional wear, corrosion resistance and has desirable refractory and chemical properties. also have excellent resistance towards oxidation and thermal shock. These batts,plates ,shelves etc. are far superior to tradition cordite-mullite based ceramics in most applications.
OBSIC Kiln Furniture is manufactured by combining oxide with silicon carbide using silica powder as the main raw material. The silicon carbide powders we use are of exceptional quality and high grade. Then it is processed by forming and drying it in shuttle fired kiln. The product formed has many beneficial properties like high-temperature volume stability, compact structure, and high-temperature flexural strength.Oxide Bonded Silicon Carbide (OBSIC) Kiln Furniture with many shape avaiable ,such Batts Plates, Shelves, Setter , etc.
The reason for choosing OBSIC Kiln Furniture is due to their property of exceptional wear, corrosion resistance and has desirable refractory and chemical properties. also have excellent resistance towards oxidation and thermal shock. These batts,plates ,shelves etc. are far superior to tradition cordite-mullite based ceramics in most applications.
OBSIC Kiln Furniture is manufactured by combining oxide with silicon carbide using silica powder as the main raw material. The silicon carbide powders we use are of exceptional quality and high grade. Then it is processed by forming and drying it in shuttle fired kiln. The product formed has many beneficial properties like high-temperature volume stability, compact structure, and high-temperature flexural strength.

Quantity:
Availability:





Inquire

Brand:
YUFENGREC

Product Description

YUFENGREC®Oxide Bonded Silicon Carbide Plate /Setters mainly composed of silicon carbide, silicon micropowder, etc., and is formed and fired under high temperature in a shuttle kiln.

The product has excellent oxidation resistance, thermal shock stability, compact structure, high temperature volume stability, high temperature bending strength and other advantages.Meanwhile ,It can maximize the utilization rate of the kiln and the energy saving rate. In addition, it has good compactness, high temperature load, not easy to deform, not easy to slag, firm seam, and the alumina coating is not easy to fall off. Long life and reduced customer defect rate

Key Feature of Oxide Bonded Silicon Carbide Plate

* High Temperature Strength .

* Outstanding Thermal Shock Resistance.

* Excellent Thermal Conductivity.

* Heavy loading weight under high temperature applications.

* Increasing the efficiency of kiln loading, save energy

* Good Anti-oxidant performance

Application of Oxide Bonded Silicon Carbide Plate

* Electronic Industry

* Sanitary Ware Industry

* Ceramic Industry

* Grinding wheel

* Magnetic Material

* Making different shape of kiln furniture

Regular Size Available of Oxide Bonded Silicon Carbide Plate

Technical Data of Nitride Bonded Silicon Carbide Kiln Furniture

Item	Unit	Typical Index
Physical Properties
Max. Application Temperature	ºC	1550
Refractoriness	SK	39
Refractoriness Under Load 0.2 MPa	ºC	1750
Bulk Density	g/cm³	2.70-2.75
Apparent Porosity	%	7-8
Compression Strength	MPa	130
Modulus of Rupture	MPa	50 (Room Temp.)
Modulus of Rupture	MPa	50 (1400 ºC)
Thermal Conductivity at 1000 ºC	Kcal/m.hr.ºC	13.5-14.5
Thermal Expansion at 1000 ºC	%	0.42-0.48
Thermal Shock Resistance		Excellent
Chemical Composition
SiC	%	90

The data are average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety applications or materials ,please refer to the work practices and material safety data sheet

QC INSPECTION TO ASSURE OF EACH PRODUCTS ACCUTE SIZE
