YUFENGREC-SISIC1380
YUFENGREC
69039000

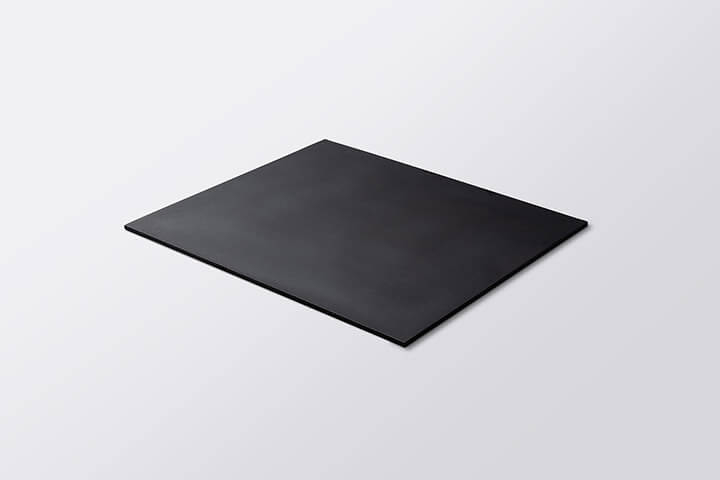

YUFENGREC®The Reaction Bonded Silicon Carbide Kiln Furniture has High Strength and Excellent Hardness , Wear and Corrosion resistance ,Oxidization Resistance and Thermal Shock Resistance ,which is one of the most popular technical ceramics .
In comparison with Recrystallized Silicon Carbide (ReSIC) AND Nitride Bonded Silicon (NBSIC),
RBSiC (SiSiC) display better performance in long term applications . The slip casting and extrusion technologies in conjunction with our net-shape sintered technologies and superior advanced machine press ability ,which enables production of complex shapes and superior sizes with tight dimensional tolerance .
RBSiC (SiSiC) cross beams are used for the loading structure systems of tunnel kilns, shuttle kilns and many other industrial kilns.
RBSiC（SiSiC）cross beams have higher strength and there are no deformations even in very high temperature. And also display long operational life. The beams are the most suitable kiln furniture for sanitary wear and electrical porcelain applications.
RBSiC（SiSiC）has excellent thermal conductivity, so it is available to save energy.
Application of SISIC Material
* New energy - lithium battery, photovoltaic
* Sanitary Ware Industry
* Electronics, Semiconductors
* Making different shape of kiln furniture *
Typical Technical Data
The data are average results of test under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation
*The Bending Strength of RBSIC(SiSiC) Beams is 250MP, safety coefficient is 5.
Concentrated Loading =the Value in the Table Accordingly x 1/L,
Uniformly Distributed Loading = the Value in the Table Accordingly x 1/L.
We are offering any other kinds of kiln furniture and engineer ceramics ware on request

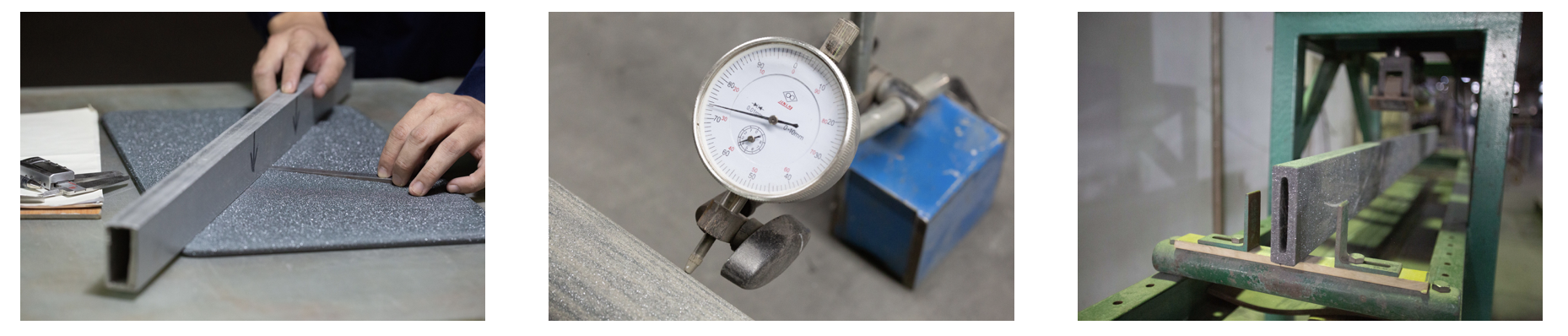

QC INSPECTION TO ASSURE OF EACH PRODUCTS ACCUTE SIZE.

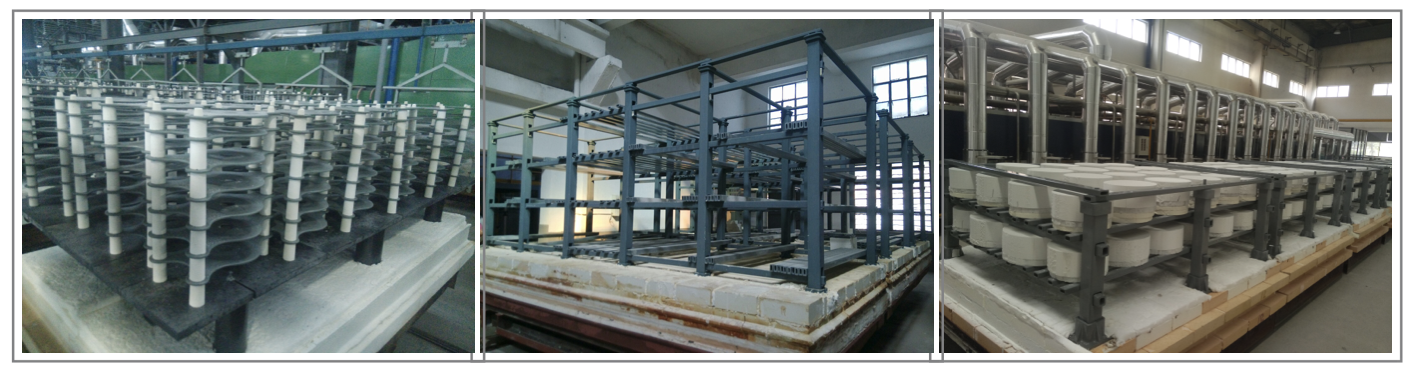

APPLICATIONS REFERERNCE
