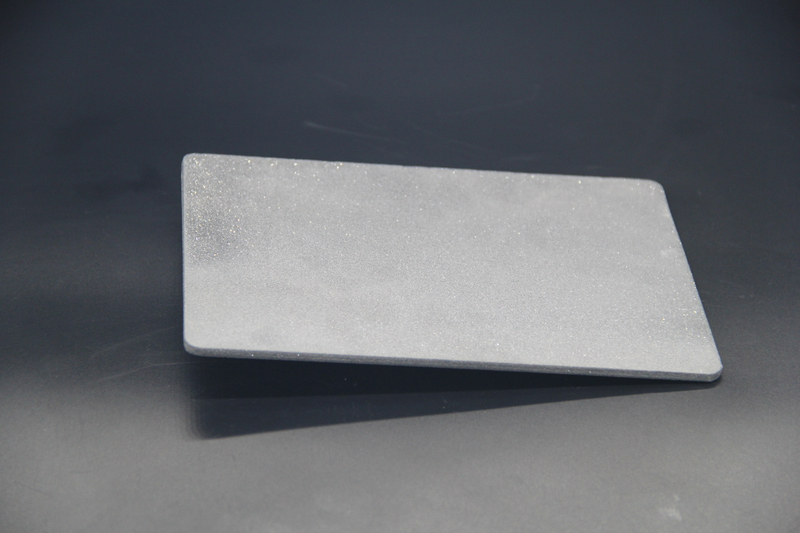

Ultra-Pure Performance SiC Recrystallized Silicon Carbide Plate (RSIC) Kiln Furniture

YUFENGREC®Recrystallized Silicon Carbide Kiln Furniture (RSIC), like reaction bonded silicon carbide, can be infiltrated with silicon metal. However, the infiltration process occurs after the primary sintering. This grain structure not only provides excellent material properties, but also enables extremely precise manufacturing along with high purity used in industries like semiconductor production.

it's unique characteristic enables the use of maximum temperature up to 1,600°C, higher than the other SiC refractories.

RSiC, produced by sintering fine SiC grain itself at very high temperature, has very high purity, 99% SiC composition. Suitable to apply firing raw materials or products which need to avoid contaminations. Used as sagger and plate etc.



RSIC batts performances widely in porcelain tableware ,porcelain sanitary ware , metal powder process and electricity produciton etc . due to its ourstanding thermal shock resistance and high thermal conductivity ,RSIC batts can be produced in many shapes ,such as plate , setting ring ,plate setter .etc



Max.Working Temperature:
Density :
Material:
Packing :
Availability:
Quantity:
sharethis sharing button
  • YUFENG-RSIC1620

  • YUFENGREC

  • 69091200


屏幕快照 2022-03-09 上午8.52.40

YUFENGREC®Recrystallized Silicon Carbide Kiln Furniture (RSIC)  like reaction bonded silicon carbide, can be infiltrated with silicon metal. However, the infiltration process occurs after the primary sintering. This grain structure not only provides excellent material properties, but also enables extremely precise manufacturing along with high purity used in industries like semiconductor production.

it's unique characteristic enables the use of maximum temperature up to 1,600°C, higher than the other SiC refractories.

RSiC, produced by sintering fine SiC grain itself at very high temperature, has very high purity, 99% SiC composition. Suitable to apply firing raw materials or products which need to avoid contaminations. Used as sagger and plate etc.


RSIC batts performances widely in porcelain tableware ,porcelain sanitary ware , metal powder process and electricity produciton etc . due to its ourstanding thermal shock resistance and high thermal conductivity ,RSIC batts can be produced in many shapes ,such as plate , setting ring ,plate setter .etc


In additional ,if required ,One side or both side can be coated , any special shape batts is available according to customer's request.


Application of  Recrystallized Silicon Carbide Kiln Furniture (RSIC)

*   Porcelain sanitary ware

*  Metal powder process

*   Electricity productions .
*   Petrochemical Industry
*   Aerospace Industry
*   Making different  shape of kiln furniture

Key Feature  of Recrystallized Silicon Carbide Kiln Furniture (RSIC)

*    High Temperature Strength .

*    Outstanding Thermal Shock Resistance.

*    Excellent Thermal Conductivity.

*    Heavy loading weight under high temperature applications.

*    Increasing the efficiency of kiln loading, save energy
*    Low weight
*    Long Service life


Shape Available  of  Recrystallized Silicon Carbide Kiln Furniture (RSIC)

Beam                            *  Nozzle

Roller                             *  Thermal Tube

Plate                             *  Structure parts

Cooling Tube                 *  Sagger

*Setters

Technical Data   of Nitride Bonded Silicon Carbide Kiln Furniture


Item  Unit  Typical Index
Physical Properties
Max. Application Temperature  ºC 1620 (Oxid)
Bulk Density g/cm3 2.65 - 2.75
Porosity % 15-18
Compression Strength  MPa 600
Modulus of Rupture    MPa 80-100( 20 ºC)
MPa 90-110   (1200 ºC)
MPa 90-120 (1350 ºC)
Thermal Conductivity  W/m.k 36.6  (1200 ºC)
Coefficient of Thermal Expansion  K-1 X 10 -6 4.69 (1200 ºC)
Young's Modulus  GPa 220-260
Thermal Shock Resistance
Excellent
Chemical Composition
SiC % 99


QC INSPECTION TO ASSURE OF  EACH PRODUCTS  ACCUTE SIZE

屏幕快照 2022-05-25 下午5.58.31

APPLICATIONS

屏幕快照 2022-05-25 下午5.59.09
