Alpha Sintered Silicon Carbide SIC Roller with Pressure-less

Views: 0     Author: Site Editor     Publish Time: 2022-12-05      Origin: Site

Inquire

屏幕快照 2022-11-16 下午10.12.44

Yufeng SonotekSic® Sintered Silicon Carbide (SSiC)   is pressure-less, sintered form of alpha silicon carbide, with very fine grain structure (4-10 microns) and contains no free silicon.

it is made of  pure sub-micron SiC powder with non-oxide sintering aids. forming by extrusion, dry pressing or isostatic pressing, sintered under high temperature of 2,200°C in an inert gas atmosphere.

SonotekSic®  SiC provides a full range of exceptional properties makes it an ideal material for high temperature resistant components:, Lightweight, dense, almost as hard as diamond, resistant to wear.


High  mechanical strength

The bending strength is four times that of recrystallized silicon carbide, twice that of nitride bonded silicon carbide, and 50% higher than that of reaction bonded silicon carbide.

Excellent thermal shock resistance

Due to the excellent thermal conductivity, consistently low thermal expansion coefficient and minimizing internal temperature gradient, Sonoteksic® sintered silicon carbide  has excellent thermal shock resistance and can be more adaptable to the rapid heat cycling than other materials.

Super high temperature stability

SonotekSic® sintered silicon carbide hardly change with temperature, from close to absolute zero up to 1700°C even under load, that is not suitable for other materials.

Excellent oxidation resistance

SonotekSic® sintered  SiC is more stable in long term applications because it is more oxidation resistant for its high purity and high density. A protective layer of SiO2 is formed on the surface of SiC which slows the oxidation process, which can extend the life of the product.

Extremely universal high corrosion resistance in acidic, alkali, basic media and oxidants -even at high temperatures.



Kinds of shape  available

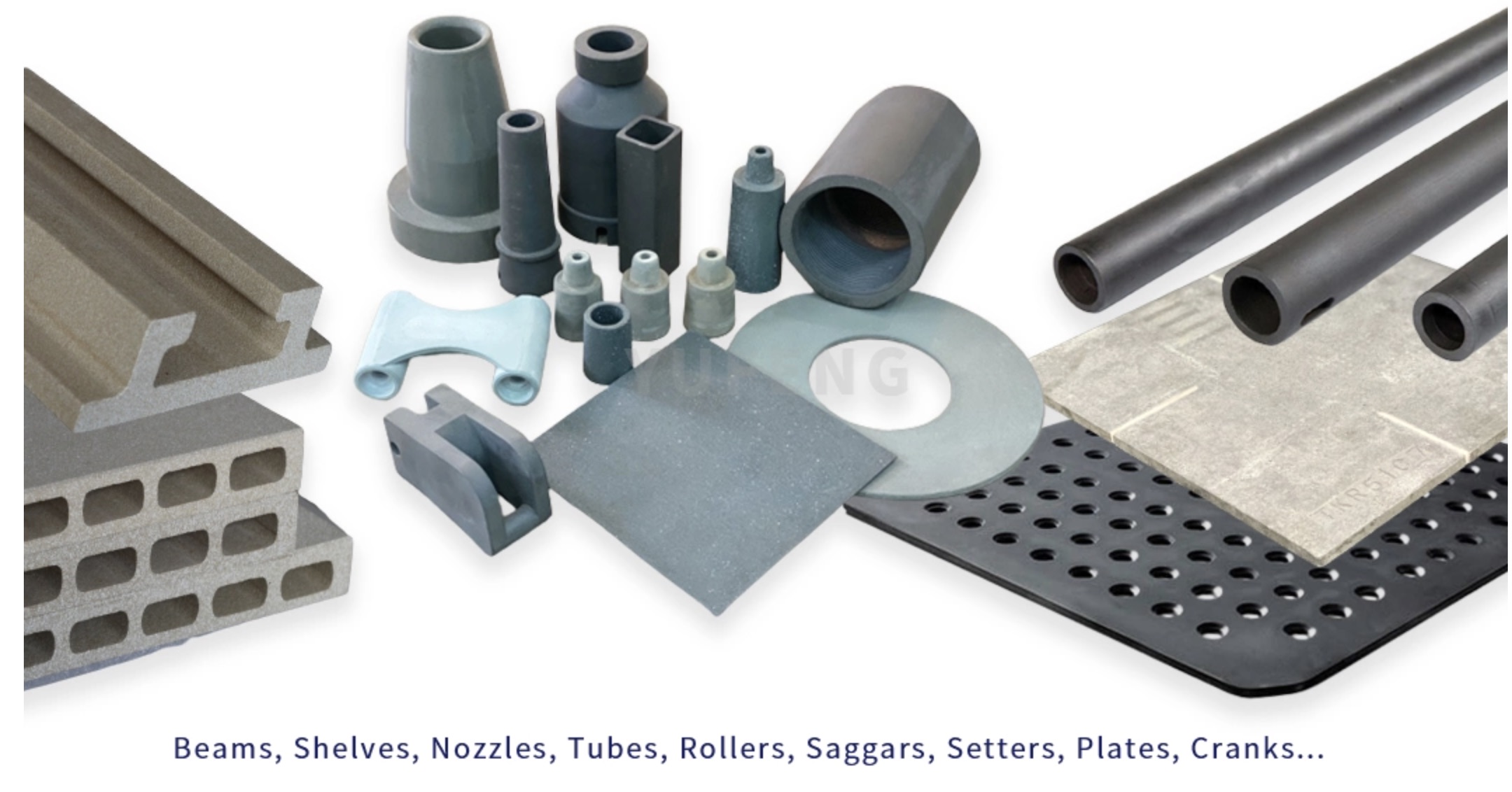

Rollers · Tubes · Beam · Batts · Seals · Crucible · Wear Pans · Wear Rings

(With high technology  Presureless sintered keep each shpae with accute  dimension control  )


Typical physical properties of four comparative SiC materials

Physical Properties

Unit

SSiC

SiSiC

RSiC

NbSiC

Density

g/cm3

3.05

3.02

2.7

2.75

Aparant porosity

%

<3

<0.1

<15

<11

Modulus of Elasticity, E GPa)






20°C

GPa

350

330

240

250

1200°C

GPa

300

300

190

200

Modulus of Rupture, MOR

20°C

1300°C

1600°C

MPa

320

330

350

250

260

90

100

pastedGraphic.png160

180


Thermal Conductivity 1250°C

W /m K

42

40

35

18

Coefficient of Thermal Expansion, a (RT...800°C)


4.4x10-6/°C

4.9x10-6/°C

4.6x10-6/°C

4.7x10-6/°C

Max. operating temperature*

°C

1700°C

1380°C

1600°C

1450°C

*at air atmosphere
