YUFENG WOOL ® STD CERAMIC FIBER BLANKET, YUFENG WOOL ® HP CERAMIC FIBER BLANKET, YUFENG WOOL ® HA CERAMIC FIBER BLANKET,
YUFENGWOOL®
68061010

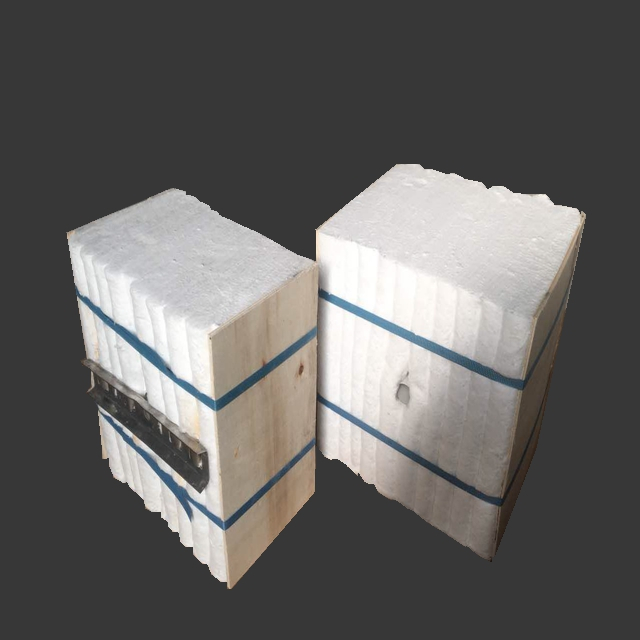

YUFENGWOOL®Ceramic Fiber Modules are made of compressed fiber blanket ,with special designed to improve the thermal insulation requirements of industrial furnaces in some special thermal conditions .Equipped with various anchoring sets to enable quick,easy and efficient installations in most furnaces lining solutions . Our Ceramic Fiber Modules have reliable thermal maintenance and long time treatments .Such Modules lining system prevent heat loss,increasing the furnaces productivity and reducing the maintenance cost
Alkaline Earth Silicate Fiber (AES) Modules - Made from unique bio-soluble fiber
Refractory Ceramic Fiber (RCF) Modules - Made from STD, HP, HZ Fiber blanket
Pyro-Bloc Ceramic Fiber Modules - Monolithic refratory fiber modules
Special size customized
The Ceramic Fiber Blanket is completely inorganic ,It is asbestos free, No chemical binder is added. Double-side needle processing provides blanket with great tensile or handling strength for easy installation.
Typical Densities: 160-240 kg/m3)
Standard Packaging: Carton Boxes and Pallets
Key Features
*The anchor system is remote from hot face ,maintaining the metal components at a relatively low temperature
*The pre-compressing of the accordion-pleats ,released after installation ,gives tightly sealed inter-modules joints with both configurations , this counteracts shrinkage that occurs at operating temperatures and help prevent joins from opening up in service .
*Low thermal conductivity giving high thermal efficiency . Since the module has good resilience, the furnace or kiln structural steel need not be totally rigid . This provides an opportunity for innovative furnace and kiln designs
*Light Weight ,giving low heat absorption in the insulation
*The heat-up and cool-down stages of furnace or kiln operating cycles can be greatly accelerated
Typical Applications
*Chemical Industry
Ammonia reformers
Hydrogen reformers
Oil refine ductwork
*Ceramic
Tunnel Kilns
Intermittent Kilns
Ductwork
*Aluminum
Soaking pits and covers
*Steel & iron industry
Annealing furnace
Reheating furnace
Continuous Annealing
Coating furnace
Transfer ladle lids
Duct etc .
Typical Technical Data
Unit | YUFENG WOOL® STD MODULE | YUFENG WOOL® HPMODULE | YUFENGWOOL® HZ MODULE | ||
Classification Temperature | ℃ | 1260 | 1260 | 1430 | |
℉ | 2300 | 2300 | 2600 | ||
Max Working Temperature | ℃ | 1100 | 1150 | 1250 | |
Color | White | Pure White | Pure Whie | ||
Density | Kg/M3 | 160-240 | |||
Chemical Analysis | Al2O3 | % | ≥ 45 | 47 | 35 |
Al2O3+SiO2 | % | ≥ 98 | ≥ 99 | －－ | |
ZrO2 | % | －－ | －－ | ≥ 15 | |
Cr2O3 | |||||
Al2O3+SiO2+ZrO2(Cr2O3) | % | －－ | －－ | 99 | |
Fe2O3 | % | <0.5 | <0.5 | <0.3 | |
Na2O+K2O | % | <0.3 | <0.3 | <0.3 | |
The data are average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety applications or materials ,please refer to the work practices and material safety data sheet
