Pros and Cons of Different Thermal Insulation Types

Choosing the right refractory materials is important for heat control. Good choices help you keep heat in the right place and save energy. About 8.3% of energy is lost in factories from bad thermal insulation, especially with high heat. Refractories are special because they handle heat well and do not break from sudden temperature changes. They also keep working after being used many times. These materials give strong thermal resistance and help manage heat flow. The main types of refractory materials protect against heat in different ways. This makes them very important for jobs that need to handle a lot of heat.

Key Takeaways

• Pick refractory materials by thinking about the heat and chemicals they will face. This helps protect equipment and saves energy.

• Acidic refractories work best in acidic places. They are cheap. But they do not stand up to alkaline slags or fast temperature changes.

• Basic refractories can handle alkaline slags and sudden heat changes. They are strong and last a long time. But they cost more and can hurt the environment.

• Neutral refractories can handle both acids and bases. They resist sudden heat changes and last a long time. This makes them good for mixed or changing conditions.

• Refractory metals can take the most heat and are very strong. But they are rare and cost a lot. They are only used for jobs with extreme heat.

Types of Refractory Materials

There are four main groups of refractory materials. Each group is made differently and has its own best uses. Knowing these differences helps you choose the right one for your job.

Acidic Refractories

Acidic refractories work well where they meet acidic slags or gases. They are mostly made from silicon oxide and alumina. Fireclay refractories and silica bricks are in this group. These materials can handle acids but not bases. You find them in coke ovens, glass kilns, and some furnace parts. High alumina refractories have more alumina than others. They last longer and can take higher heat than fireclay refractories.

Basic Refractories

Basic refractories are good in places with basic slags and alkaline stuff. They are made from magnesium oxide, calcium oxide, and dolomite. You see them in rotary kilns and steel converters. They do not last if they touch acids. Magnesia bricks and chrome-magnesia bricks are common types. These help protect furnaces that work with metals and basic slags.

• Basic refractories:

• Magnesia bricks

• Dolomite bricks

• Chrome-magnesia bricks

Neutral Refractories

Neutral refractories can handle both acids and bases. They are made from alumina, carbon, silicon carbide, chromite, and zirconia. You use them in furnaces where both acidic and basic slags show up. High alumina refractories and silicon carbide bricks are popular. They work well in kilns and furnaces for metal processing.

Refractory Metals

Refractory metals are things like tungsten, molybdenum, and tantalum. They have very high melting points and can take a lot of heat. You use them in places with extreme heat, like special kilns and furnaces. They do not melt or bend, even above 2000°C. These metals cost more, but sometimes you need them when nothing else works.

• Common refractory metals:

• Tungsten (W)

• Molybdenum (Mo)

• Tantalum (Ta)

You can also find many products made from these refractory materials. Some examples are ceramic-coated textiles, fiber boards, and insulating modules. These help line furnaces, stop heat loss, and keep kilns safe. Fireclay refractories and high alumina refractories are used a lot in factories. They are popular because they are not too expensive, last long, and work well.

Key Properties of Refractory Materials

Refractory materials are special because of their unique features. You should know these features before picking one for insulation. The right mix helps refractories stand up to high heat, fight corrosion, and stay strong after many uses. Here are the main things that make refractories work well.

Temperature Resistance

Refractories need to handle very hot temperatures. Their high melting points help them work where other things melt. The best refractory materials can take a lot of heat. Tungsten, alumina, silica, and magnesia all resist heat well. See this table to compare their temperature resistance:

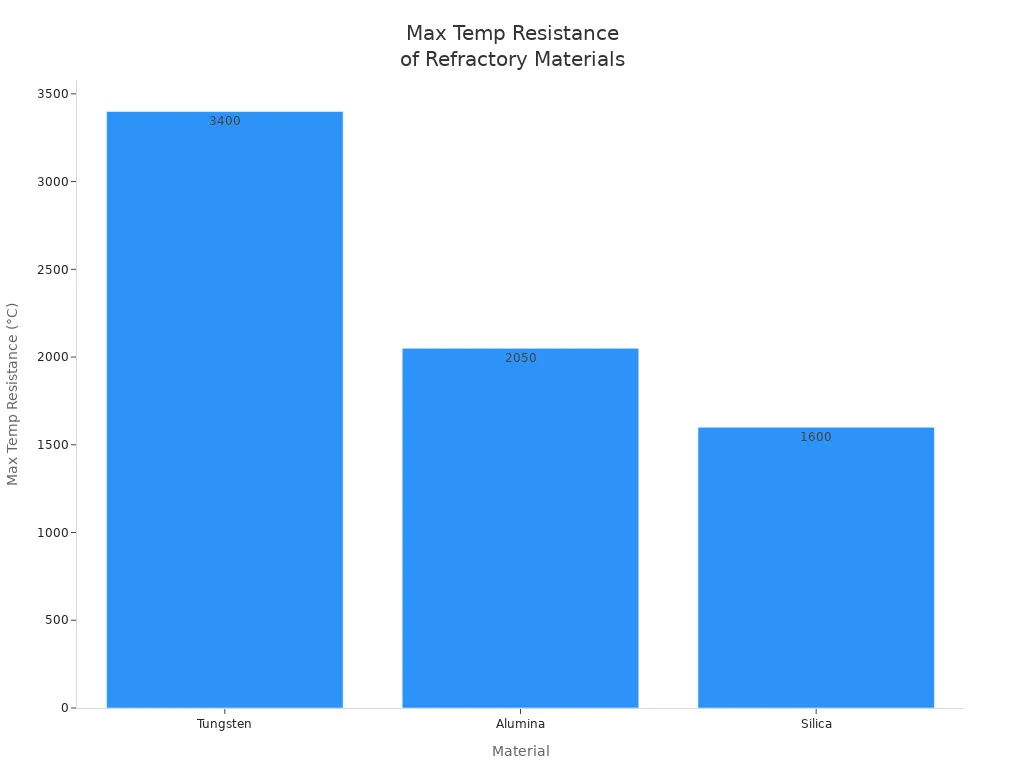

Tungsten has the highest resistance. Alumina and magnesia also work well in hot places. Silica is good for lining furnaces. These features help you choose the right refractory for your needs.

Thermal Shock Resistance

Thermal shock resistance means a material can handle quick changes in heat. If a material cracks when the heat changes fast, it is not safe. What refractories are made of affects this feature. Some, like silicate-bonded magnesia-chrome bricks, resist shock best. Others, like electro-melted magnesia-chrome bricks, do not do as well. Here is a table to show how common refractories compare:

You want high shock resistance for places with fast heat changes. Silicon carbide and zirconia are great for this. Alumina works for steady heat. Silica may crack if the temperature jumps.

Chemical Stability

Refractories need to be strong against chemicals. What they are made of decides if they can stand up to acids or bases. Acidic refractories, like silica bricks, fight acids but react with bases. Basic refractories, like magnesite and dolomite, fight bases but react with acids. Neutral refractories, like alumina and chromite, resist both. Here is a table to help you compare:

You need to match the chemical stability to the job. This keeps your insulation safe from damage.

Mechanical Strength

Mechanical strength helps refractories hold up under heavy weight. You want materials that do not break or fall apart in furnaces. What refractories are made of and how dense they are affects their strength. High alumina bricks and magnesia bricks are very strong. They keep their shape and do not crack, even after many uses. This means your insulation lasts longer.

Thermal Conductivity

Thermal conductivity shows how much heat passes through a refractory. Low thermal conductivity means better insulation. You want refractories that keep heat inside your furnace. What they are made of and how dense they are changes this feature. Insulating firebricks (IFB) have different values based on their group and density. Look at this chart:

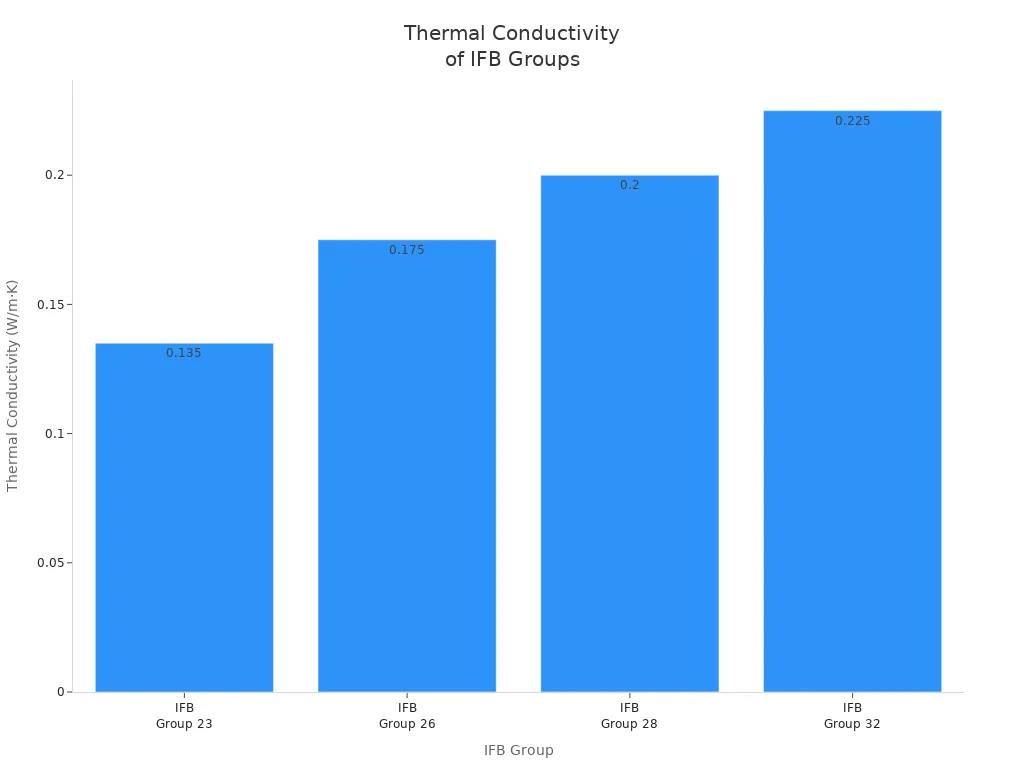

Group 23 IFBs have the lowest thermal conductivity. They insulate best. Bricks with more density let more heat through but are stronger. You need to balance insulation and strength when picking refractories.

Tip: Always check the thermal features and what the refractory is made of before you buy. The right choice saves energy and keeps your equipment safe.

Refractories: Pros and Cons

Acidic Refractories – Pros and Cons

Acidic refractories are important in many factories. You see them in glass kilns and coke ovens. Some furnace linings use them too. They include fireclay refractories and high alumina refractories. These materials block heat and protect equipment from harm.

Pros:

• Acidic refractories are cheap because the raw materials are easy to find. Buying in bulk makes them even less expensive.

• They get strong after curing. They can handle a lot of weight and bending. This means they last a long time.

• Making them uses less energy. They need only about 5%-6% of the energy other bricks need. This helps lower costs.

• Acid resistant castables are made fast. You can get them much quicker than regular bricks. This means you do not have to wait long.

• They are simple to use. They fit many furnace types. You finish building faster and pay less for workers.

• Their chemical stability and acid resistance mean less fixing and replacing. You spend less on repairs over time.

• Acidic refractories keep equipment safe. They stop chemical leaks and help things last longer.

• They follow environmental rules. You do not pay extra for regulations.

Cons:

• Acidic refractories do not work well with alkaline stuff. Basic slags or chemicals can hurt them.

• Their strength is only moderate. Heavy loads or hard hits can wear them out.

• They do not handle quick temperature changes as well as other types. Fast heat changes can make them crack.

• You might need to replace them more often in tough places.

Note: Acidic refractories are best for steady, acidic places. Using them in the wrong spot can make them fail early.

Basic Refractories – Pros and Cons

Basic refractories protect equipment in steel, cement, and metal factories. You see them in rotary kilns and converters. They include magnesia bricks and dolomite bricks. These refractories stand up to high heat and alkaline slags.

Pros:

• Basic refractories resist alkaline slags and chemicals very well. You can use them in hot, tough places.

• They are strong. Your equipment stays safe under heavy weight.

• They handle quick temperature changes better than acidic refractories. They do not crack easily.

• They last a long time in steel and cement kilns.

Cons:

• Basic refractories cost more. Special materials and high heat make them expensive.

• They do not resist acids. Acidic places can damage them fast.

• Making and throwing away basic refractories can hurt the environment. Mining and making them uses lots of energy and harms land and water.

• Most are thrown away in landfills. This adds to waste problems. Only a small part gets recycled.

• You might pay more for rules and waste handling.

Tip: Pick basic refractories for high heat and alkaline slags. Always think about the environment and recycling.

Neutral Refractories – Pros and Cons

Neutral refractories are flexible. They work in both acidic and basic places. You find them in metal furnaces and kilns. Common types are alumina, chromite, and silicon carbide.

Pros:

• Neutral refractories resist both acids and bases. You can use them in mixed places without worry.

• They handle quick temperature changes well. Silicon carbide and alumina types do not crack easily.

• They last long when touching melted materials. Silicon carbide does not wear away fast.

• Clay-based neutral refractories are cheaper. Local materials and easy making lower costs.

• Bricks and shaped forms are simple to put in and fix. You save time and money on big jobs.

Cons:

• Some neutral refractories, like zirconia, can crack or wear out over time.

• If you do not install or care for them right, they do not last as long.

• Not all neutral refractories are strong. You must pick the right one for your job.

• Sometimes, oxidation can hurt how long they last.

Refractory Metals – Pros and Cons

Refractory metals are tungsten, molybdenum, tantalum, and niobium. You use them in very hot and harsh places. These metals keep their shape and strength at high heat.

Pros:

• Refractory metals have the highest melting points. They stay strong where other things melt.

• They do not wear out, corrode, or erode easily. You can use them in tough, harsh places.

• These metals move heat and electricity well. They are used in electronics and heat sinks.

• They are hard and strong. They can take heavy stress.

• They last a long time. You do not need to replace them often. This makes them reliable in extreme places.

• You find them in rocket nozzles, turbine blades, and nuclear reactors.

Cons:

• Refractory metals are expensive. High melting points and hard making raise the price.

• They are rare and hard to get. Not many places have them, and prices can change a lot.

• Rules and hard mining make them even harder to get and more costly.

• Some are heavy and can break if cold. This makes them harder to shape.

Tip: Use refractory metals for the toughest heat jobs. Always think about the high price and supply problems before picking them.

Choosing the Right Refractory

Application Needs

You need to pick the right refractory for your job. Factories that make steel use very hot furnaces. These places need refractories that stay strong in high heat. The material should not melt or get soft when it gets hot. It should hold heavy loads and not crack easily. This helps it last longer. Steel factories need refractories that do not get damaged by slag or metal. Homes need insulation that keeps out water, fire, and noise. Insulating boards are good for walls and roofs. Fire bricks work well in fireplaces and stoves.

Environmental Factors

Think about where you will put the refractory. Water can cause big problems. If water gets in, the insulation does not work as well. It can also make the material rust or break down. Even a little water can hurt the insulation. Chemicals can also damage refractories. They attack the parts that keep water out. Store refractories in dry places. Put them in carefully so rain or wet air does not get in before you cover them. Check them often to find water or chemical damage early.

Note: Wetness and chemicals can make insulation wear out faster. Taking care of your refractories helps them last longer.

Cost and Maintenance

Price is important when you choose refractories. You need to think about how much they cost, how hard they are to put in, and how much care they need. Factories use expensive refractories that last longer and do not break easily. Homes use cheaper ones that keep people safe and comfortable. Think about how much repairs and replacements will cost. Good installation and regular checks save money over time. Steel factories should look at their refractories often, clean them, and use coatings to stop rust. Use sensors and cameras to find cracks or damage.

• Key cost factors:

• Material price

• Installation complexity

• Maintenance needs

• Expected lifespan

Tip: Buying good refractories and taking care of them saves money and keeps things working.

You can pick from many kinds of insulation for hot jobs. High-temperature insulation wool is light. It helps save energy and lasts a long time. Polycrystalline fiber is good for quick heating and cooling. Experts say you should check if the maker is trusted. Look for good quality and make sure the material fits your job.

If you want to learn more, read guides from Fort Wayne Metals or look at research from Nature Portfolio. These can help you find new ideas and smart ways to use insulation.

FAQ

What are refractory materials used for?

Refractory materials protect equipment from very hot temperatures. They help line furnaces, kilns, and ovens. You see them in steel plants, glass factories, and power stations.

How do you choose the right refractory material?

You need to think about how hot it gets. Check if chemicals will touch the material. Make sure it is strong enough. See if it resists acids or bases. Pick the type that fits your job and budget.

Can you install refractory materials by yourself?

You can put in simple things like fire bricks or boards. Big furnaces or kilns need experts to install them. Experts make sure everything fits and works safely.

How often should you check refractory materials?

Check refractory materials every few months. Look for cracks, wear, or water damage. Regular checks help you find problems early. This keeps your equipment safe.

What is the difference between acidic, basic, and neutral refractory materials?

Acidic refractories work in acidic places. Basic refractories are good with alkaline slags. Neutral refractories handle both acids and bases. Each type protects equipment in its own way.
