Refractory Brick for Bottom Pouring System for Foundry Steel

The worldwide percentage of steel and alloy produced via ingot casting has decreased since decades.  However some steel and alloy applications will continue to be bottom poured in the foreseeable future.
This includes steel and alloy ingots for intermediate and large forgings for the transportation, oil, heavy equipment and aeronautical industries. Vacuum remelt electrodes and specialty alloys such as nickel based, nickel cobalt, nickel copper and those alloys which can't be economically continuously cast will continue to be ingot cast.

YUFENGREC®offer  a complete range of high quality dry pressed Bottom Pouring Refractory Brick  , ranging from 42% to 80% in alumina content. included Sleeve Brick, Runner Bricks ,End Runner brick with riser , Bottom Guide ,Central Brick(Spider) , Funel  , Round and Square Tube, Tail brick ,well block , stopper etc ...
Availability:
Quantity:
  • YUFENGREC- FC42
  • YUFENGREC
  • 69022000

屏幕快照 2022-03-09 上午8.52.40
The worldwide percentage of steel and alloy produced via ingot casting has decreased since decades.  However some steel and alloy applications will continue to be bottom poured in the foreseeable future.
This includes steel and alloy ingots for intermediate and large forgings for the transportation, oil, heavy equipment and aeronautical industries. Vacuum remelt electrodes and specialty alloys such as nickel based, nickel cobalt, nickel copper and those alloys which can't be economically continuously cast will continue to be ingot cast.

YUFENGREC®offer  a complete range of high quality dry pressed Bottom Pouring Refractory Brick  , ranging from 42% to 80% in alumina content. included Sleeve Brick, Runner Bricks ,End Runner brick with riser , Bottom Guide ,Central Brick(Spider) , Funel  , Round and Square Tube, Tail brick ,well block , stopper etc ...


Technical Data Sheet

Item

Unit

Bottom Pouring Hollowware Brick

FC40

FC42

FC45

BX50

BX60

BX70

BX75

Typical Applications

Cast Irons ,Lower Alloyed Steel ,

Low to medium alloyed steel

Main Raw Material

Fireclay

Fireclay

Fireclay

Bauxite

Bauxite

Bauxite

Bauxite

Al2O3

%

≥40

≥42

≥45

≥50

≥55

≥70

≥75

Fe2O3

%

≤2.5

≤2.2

≤2.2

≤2.2

≤2.2

2.0

2.0

Bulk Density

g/cm3

≥2.10

≥2.15

≥2.17

≥2.20

≥2.25

≥2.30

≥2.35

Apparent Porosity

%

≤25

≤26

≤26

≤26

≤26

≤27

≤27

Cold crushing strength

MPa

≥30

≥35

≥35

≥35

≥35

≥40

≥40

Refractoriness Under Load 0.2 MPa T0.5

T0.5 /

≥1320

≥1350

≥1350

≥1400

≥1420

≥1450

≥1500


Item

Unit

Bottom Pouring Hollowware Brick

A-62

A-70

M60

M70

Typical Applications

 High Alloyed Steel , long casting times

Main Raw Material

Andlusite

Andlusite

Mullite

Mullite

Al2O3

%

≥62

≥70

≥60

≥70

Fe2O3

%

≤1.90

≤1.80

≤1.80

≤1.60

Bulk Density

g/cm3

≥2.27

≥2.30

≥2.30

≥2.32

Apparent Porosity

%

≤25

≤26

≤24

≤25

Cold crushing strength

MPa

≥35

≥40

≥35

≥40

Refractoriness Under Load 0.2 MPa T0.5

T0.5 /

≥1500

≥1550

≥1600

≥1620

Producdts Exihibition

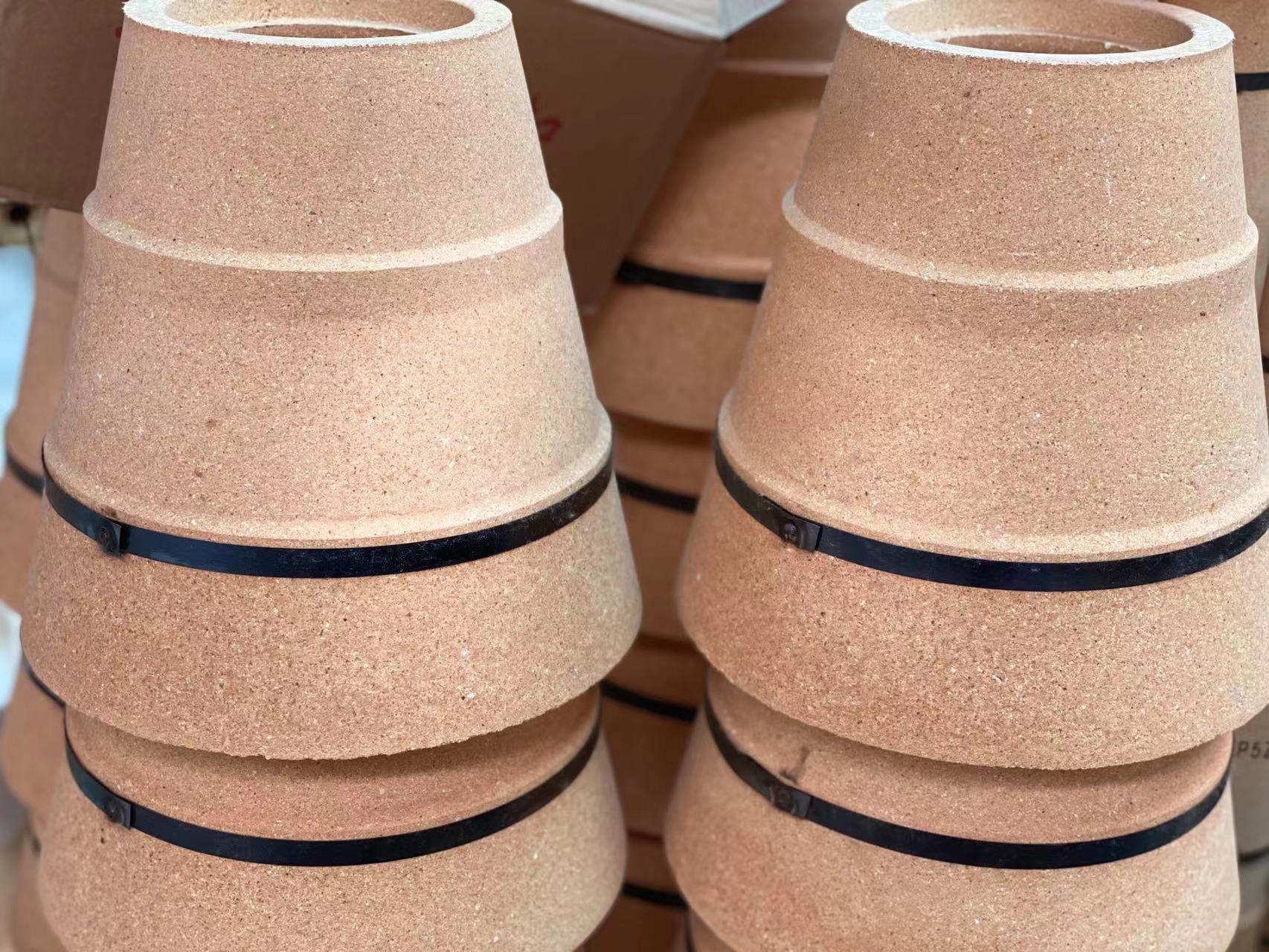

※Fuunel

WechatIMG374

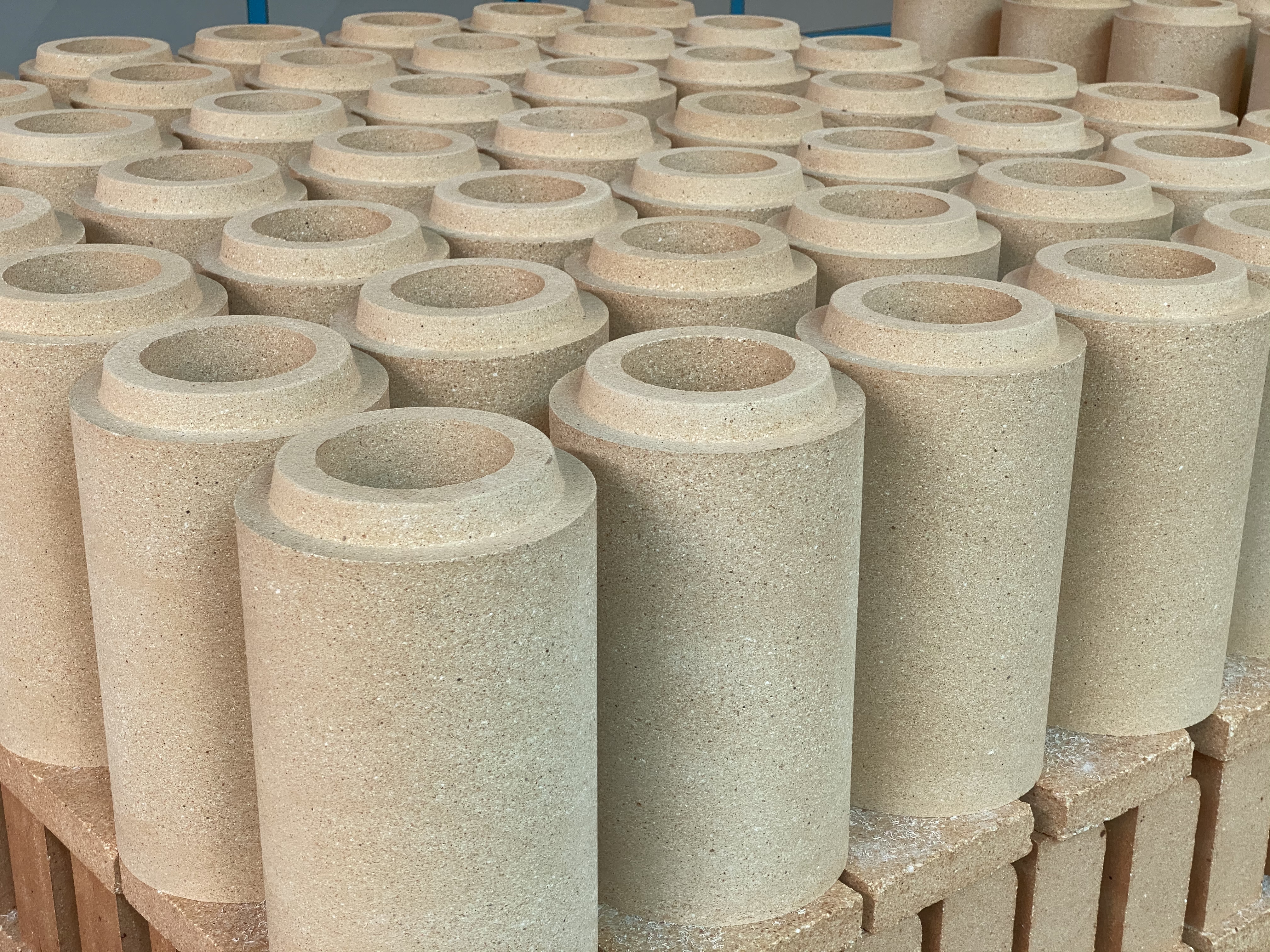

※Round Tube

WechatIMG382

※ Runner with end tail

WechatIMG377

※ Central Brick (Spider)

WechatIMG378
