An induction furnace makes heat using electromagnetic induction. It melts metals in a fast and efficient way. Electric currents move through an induction coil. This creates a magnetic field. The magnetic field heats the metal inside very quickly. These furnaces can get very hot, between 1600°C and 2000°C. They are good for melting metals like platinum and advanced alloys. The refractory brick lining keeps the furnace safe from high heat. It helps the furnace work safely and reliably. If the bricks are not good, the furnace cannot stay hot enough. High temperatures are needed for processing metals in factories.
Induction furnaces melt metal fast and use energy well. They use electromagnetic induction to heat metal from the inside. This happens by making eddy currents in the metal.
Refractory bricks, such as high alumina fire bricks and fireclay refractories, protect the furnace from very high heat. They keep the heat inside and help save energy.
The design and quality of the induction coil, power supply, and refractory lining matter a lot. They affect how well the furnace melts metal and how long it works.
Checking often and using the right refractory bricks helps stop damage. It lowers repair costs and makes the metal better.
Induction furnaces melt metal in a clean and exact way. They save energy and are important for many industries like steel, aerospace, and electronics.
Induction furnaces melt metals using electromagnetic induction. First, an alternating current goes through the induction coil. The coil wraps around the crucible that holds the metal. This current makes a magnetic field that changes quickly. The metal sits inside this field. The field goes into the metal and makes circular electric currents called eddy currents. These eddy currents move inside the metal.
The metal’s resistance to electricity makes these eddy currents create heat. This heat makes the metal get hotter until it melts. The process is fast and works well because the heat forms inside the metal. It does not just heat the outside. This way, people can control the melting process very well.
Note: How well electromagnetic induction works depends on many things. The coil’s shape, how close it is to the metal, and the metal’s properties all matter. High alumina fire bricks and fireclay refractories line the furnace. They protect it from the strong heat made by the eddy currents.
Material Properties: Metals with high resistance heat up better. High temp fire brick linings help keep the right temperatures for these metals.
Coil Design: The coil’s shape and size should fit the metal. This helps heat the metal evenly and saves energy.
Frequency of Current: Higher frequencies heat the metal’s surface more. Lower frequencies let heat go deeper. The best frequency depends on the metal and how deep you want to melt it.
Proximity: The closer the coil is to the metal, the better it works. Good alignment helps transfer energy well.
System Components: The power supply, cooling systems, and refractory brick lining all help the furnace work safely and efficiently.
Factor | Impact on Efficiency |
|---|---|
Material Conductivity | Metals with high conductivity heat up faster |
Coil-Part Alignment | Good alignment helps transfer more energy |
Frequency | Changes how deep and fast the metal heats |
Refractory Brick Type | High alumina fire bricks handle high heat |
Cooling Systems | Stop overheating and keep the furnace working |
The heat in an induction furnace comes from eddy currents inside the metal. As these currents move, the metal’s resistance turns electricity into heat. This is called Joule heating. The heat builds up fast and melts the metal. The furnace can get as hot as 2000°C. This is needed to melt tough metals like platinum and advanced alloys.
Refractory bricks are very important here. High alumina fire bricks and fireclay refractories line the furnace. These bricks can handle very high heat and protect the furnace shell. High temp fire brick also keeps the heat inside and saves energy. The price of refractory bricks depends on what they are made of and how long they last. Good bricks make the furnace last longer and work better.
Tip: Always use good refractory brick for induction furnaces. High alumina fire bricks and fireclay refractories resist heat shock and wear. They are great for high-temperature jobs.
The power supply sends alternating current to the induction coil.
The coil makes a changing magnetic field.
The magnetic field makes eddy currents in the metal.
The metal’s resistance turns these currents into heat.
The heat melts the metal, which gathers at the bottom of the crucible.
High temp fire brick and fireclay refractories help the furnace handle heating and cooling many times. These bricks stop heat from escaping, so the furnace uses less energy. Good refractory bricks may cost more at first, but they last longer and save money by needing less repair.
Callout: The type of refractory brick affects how hot the furnace can get and how safe it is. High alumina fire bricks and fireclay refractories from trusted suppliers like Yufeng Refractory give good protection for induction furnaces.
Induction furnaces need several important parts to work well and safely. Each part has a special job in melting metal and helps the furnace run smoothly.

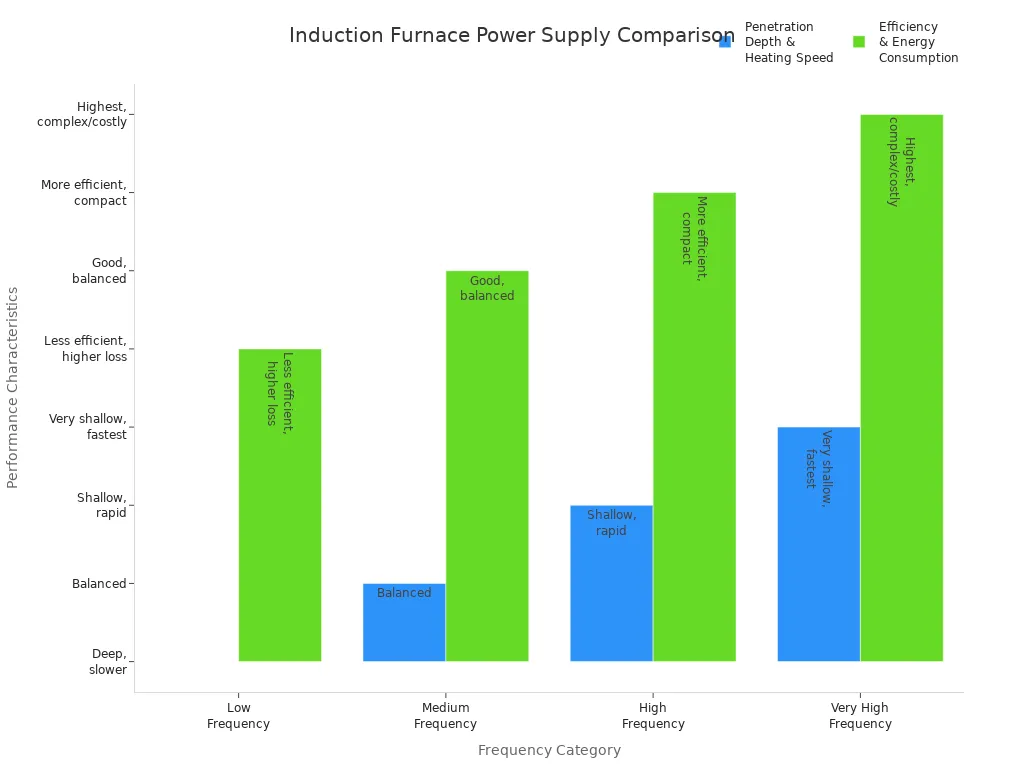

The power supply sends alternating current to the induction coil. There are different types, like VIP, IGBT, and KGPS units. These control how steady and strong the current is. The frequency changes how deep and fast the furnace heats metal. Low-frequency units heat big pieces slowly. High-frequency units heat small parts very quickly. The table below shows how each type works:
Frequency Category | Penetration Depth & Heating Speed | Efficiency & Energy Consumption | Material Suitability | Typical Applications |
|---|---|---|---|---|
Low Frequency (50-60 Hz) | Deep, slow | Less efficient, higher loss | Large pieces, high resistance | Older/simple furnace designs |
Medium Frequency (500-1000 Hz) | Balanced penetration/speed | Good efficiency, balanced use | Non-ferrous metals/alloys | General industrial melting |
High Frequency (1-10 kHz) | Shallow, very rapid | More efficient, compact | Small/thin parts | Brazing, hardening, surface treatment |
Very High Frequency (10 kHz+) | Very shallow, fastest | Highest efficiency, costly | Fine metalworking/electronics | Precision, rapid heating |
The induction coil makes the magnetic field that heats the metal. Its shape and size change how evenly the metal gets hot. Helical coils are good for round parts. Pancake coils work best for flat things. More turns and tight spacing make a stronger field but can get too hot. The coil should be close to the metal, about 0.5-3mm away, for best energy transfer. Coils are made from high-purity copper because it carries electricity well. Water cooling stops the coil from getting too hot and keeps it working right.
Coil Type | Design Influence on Magnetic Field and Heating Uniformity |
|---|---|
Helical/Solenoid | High coupling for cylinders; pitch adjustment enables uniform axial heating. |
Pancake/Flat | Field concentrated beneath coil; winding density adjustments improve uniformity. |
Hairpin/U-shaped | Focused energy for narrow areas; effective for strips when moved. |
Internal/ID | Internal bore heating; flux concentrators and precise centering needed for even heating. |
Profiled/Custom | Custom shapes for complex parts; precise control of coil-to-workpiece distance and angle for uniform heating. |
The crucible holds the metal while it melts. It can be made from high-purity graphite, cast iron, refractory clay, or steel. Cast iron and steel are good for aluminum alloys and easy-melt metals. Graphite crucibles are best for copper alloys and metals that melt at high heat. Crucibles spread heat evenly and keep the metal safe from furnace gases. Acid crucibles help make steel cleaner and with fewer weak spots. They also stop some metal parts from burning away. But crucibles have limits, like not holding much metal and not saving heat well, so they are not used for big jobs.
Common crucible materials:
High-purity graphite
Cast iron (RT Si-5.5, RQT Si-5.5)
Refractory clay
Steel
Refractory bricks cover the inside of the furnace and protect it from very high heat and damage. High alumina fire bricks and fireclay refractories make up the main layers. These bricks do not crack easily from heat or from the stirring inside. The lining keeps heat in, saves energy, and protects the steel shell from getting too hot. Cleaning out slag and fixing cracks with new bricks helps the lining last longer. The price of refractory bricks depends on what they are made of and how strong they are. A good brick lining keeps the furnace safe and stops it from breaking down early.
Tip: Always use strong refractory bricks and fire brick lining from trusted suppliers like Yufeng Refractory. This helps the furnace stay strong and work well.
Refractory bricks are special blocks that can handle very high heat. They keep their shape and strength even when it gets really hot. Most refractory bricks are made from alumina, magnesia, silica, or carbon. These bricks do not melt or break down easily. That is why they work well in places with high temperatures like induction furnaces.
Inside induction furnaces, refractory bricks make up the main lining. They form a wall between the hot metal and the furnace shell. This wall keeps the furnace safe and holds the heat inside. Companies use dry vibration monolithic refractories with magnesia or alumina for these linings. Some bricks have extra materials to help them work better for certain jobs.
Refractory bricks are very important for induction furnaces. They can stand up to high heat, chemicals, and wear. Without these bricks, the furnace would not last long or be safe.
The most common refractory bricks used in induction furnaces are:
Magnesian bricks: These have over 80-85% magnesium oxide (MgO). They are strong against alkali and iron slag damage. Many electric furnaces use magnesian bricks.
Zirconic bricks: Made from natural zircon sand, these bricks resist slag and sudden heat changes. They do not expand much and can handle heavy loads.
Carbon bricks: These bricks are mostly carbon. They can take very high heat and are good for melting nonferrous metals.
Silicon carbide bricks: These bricks are tough against scraping and rust. They stay strong at high heat, move heat well, and handle quick temperature changes.
Refractory bricks have many good qualities for induction furnaces. First, they can take very high heat without melting or getting weak. Some, like corundum silicon carbide bricks, can stand up to 1900ºC. This is important for melting metals like steel, copper, and platinum.

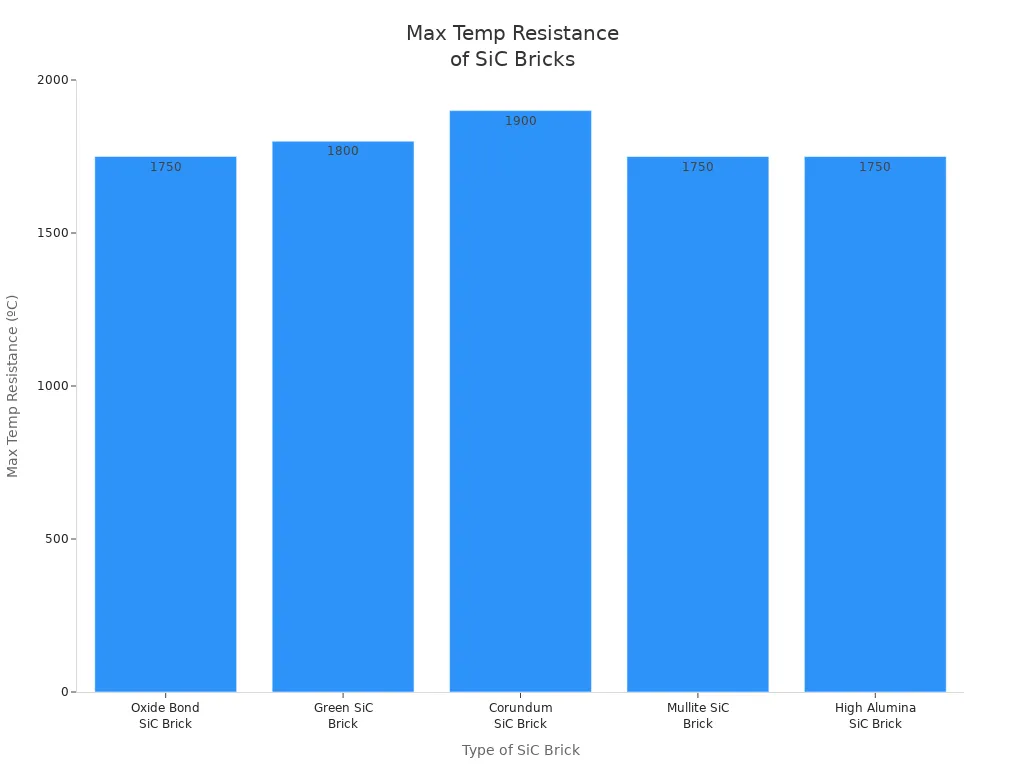

Type of Silicon Carbide Brick | Maximum Temperature Resistance (Refractoriness Under Load) |
|---|---|
Oxide Bond SiC Brick | Approximately 1750ºC |
Green SiC Brick | Approximately 1800ºC |
Corundum Silicon Carbide Brick | Up to 1900ºC |
Mullite Silicon Carbide Brick | Approximately 1750ºC |
High Alumina SiC Brick | Approximately 1750ºC |
Refractory bricks also fight off damage from chemicals in slag and hot metal. This helps the bricks last longer and keeps the furnace safe. Many bricks, like magnesian and zirconic, resist rust and sudden heat changes. Silicon carbide bricks are strong against scraping and move heat well. They do not expand much when heated. These things help the furnace handle fast heating and cooling.
Another big benefit is insulation. Refractory bricks make a layer inside the furnace that keeps heat in. This layer stops heat from escaping and saves energy. When the furnace holds heat better, it uses less power to keep metals melted. Saving energy lowers costs and helps the environment.
Note: Refractory bricks protect the furnace and make it safer to use. They lower the risk of heat hurting workers or equipment. Advanced refractory materials, like those from Yufeng Refractory, give extra safe linings that help safety and work.
Refractory bricks also help make better melted metal. By keeping the lining strong and clean, they stop bad reactions between the metal and the furnace wall. This leads to better steel and alloy quality.
Refractory bricks do many jobs in induction furnaces. Their main job is to line the crucible or vessel area. This lining acts as a shield between the hot metal and the induction coil. The bricks keep the coil safe from high heat and stop damage from hot metal.
Refractory bricks line the crucible or vessel and make the main shield.
They protect the induction coil from touching hot metal.
The bricks must handle strong physical, heat, and chemical stress like rust, heat shock, and slag.
The type of refractory material depends on the slag, heat level, and furnace size.
Refractory linings wear out. After many heat cycles, workers need to replace them to keep the furnace safe.
Different products, like castables, ramming mixes, and topping mixes, are used in different parts to help the lining last longer and resist damage.
️ Tip: Always pick the right refractory brick for each furnace part. High alumina fire bricks and fireclay refractories are good for high heat. Silicon carbide bricks are best for places with lots of scraping and rust.
Refractory bricks also give insulation. This insulation keeps heat inside the furnace and makes it use energy better. The bricks help the furnace reach and keep the high heat needed for melting metals. They also protect the steel shell and other parts from heat damage.
Fire bricks and other refractory materials help lower repair costs. By protecting the furnace from damage, they help it last longer. This means fewer repairs and less time when the furnace is not working.
Refractory bricks are very important for high heat jobs in induction furnaces. They give lining, insulation, and protection against heat shock and wear. Using them makes the furnace safe, efficient, and reliable.
Induction furnaces need a strong power supply to work. The system sends alternating current into a copper coil. This makes a high-frequency magnetic field around the coil. Modern furnaces use IGBT technology to control power and frequency. Operators can change the power level for different metals. More power means faster heating and shorter melting times. The frequency is important too. Lower frequencies heat deeper into the metal. Higher frequencies heat the surface quickly. Solid-state systems help keep the temperature steady. Impedance matching helps energy move efficiently. The right power input melts metal quickly and saves energy.
⚡ Tip: High alumina fire bricks and fireclay refractories in the lining keep heat inside. This lowers energy loss and saves money on refractory bricks over time.
The induction coil makes a strong magnetic field. Industrial furnaces run between 300 Hz and 30 kHz. The magnetic field can be stronger than safety rules allow. Workers measure it carefully to stay safe. Magnetic flux controllers and computer simulations help improve the field. These tools make the coil work better and reduce stray magnetic fields. The magnetic field goes through the refractory brick lining and into the metal charge. High temp fire brick and fireclay refractories protect the coil and shell from heat and magnetic stress. The coil’s design and placement affect how evenly the metal heats.
Magnetic field strength: Often goes above safety levels.
Measurement: Sensors and simulations help keep things safe and efficient.
Refractory brick lining: Protects the coil and shell from heat and magnetic effects.
The magnetic field makes eddy currents inside the metal. The metal’s resistance turns these currents into heat. Ferromagnetic metals get extra heat from magnetic hysteresis. The heat builds up inside the metal until it melts. The process is quick and clean. Operators can melt steel in about 9 to 20 minutes. This depends on insulation and furnace efficiency. Copper, aluminum, and iron take 25 to 35 minutes in a 90KW furnace. The refractory brick lining, made from high alumina fire bricks or high temp fire brick, keeps heat inside and protects the furnace. Good refractory bricks help melt metal faster and lower repair costs.
Metal Type | Average Melting Time (minutes) | Furnace Power | Crucible Lining Material |
|---|---|---|---|
Steel | 9 - 20 | 90KW | High alumina fire bricks |
Copper/Aluminum | 25 - 35 | 90KW | Fireclay refractories |
Note: Picking good refractory brick, like high alumina fire bricks and fireclay refractories, keeps melting safe and efficient. The cost of refractory bricks is worth it because the furnace lasts longer and saves energy.
Induction furnaces melt metal very efficiently. Operators can change coil height and charge mix to save energy. These furnaces can reach up to 85% thermal efficiency. This is about 33% better than older gas or arc furnaces. Less heat escapes, so there is less pollution and scale. Special copper coils and IGBT technology help stop energy loss. Direct heating lowers costs and makes better melted metal. High alumina fire bricks and fireclay refractories keep heat inside. This helps save energy and money.
Factor | Impact on Efficiency |
|---|---|
Coil Design | Improves energy transfer and heating uniformity |
Power Supply Capacity | Enables faster heating and better efficiency |
Refractory Brick Quality | Reduces heat loss and extends furnace lifespan |
Charge Mix Optimization | Lowers energy use and increases productivity |
⚡ Using high temp fire brick and good refractory linings saves energy. It also helps the furnace last longer.
Induction furnaces let operators control temperature very well. Electromagnetic induction heats metal fast and evenly. Operators can watch and change melting settings right away. This gives steady, high-quality melted metal with fewer mistakes. Vacuum induction melting furnaces can get even hotter and keep metals pure. High alumina fire bricks and fireclay refractories help keep the temperature steady. These bricks do not crack from heat and help the furnace work safely.
Operators can change temperature quickly for different metals.
Even heating means less scrap and more good metal.
Refractory linings protect the furnace during quick temperature changes.
Induction furnaces use electricity, not fuel. They do not make exhaust gases like CO2, SO2, or NOx. This means less pollution and a cleaner environment. If powered by renewable energy, they have almost no carbon footprint. The heating does not make ash or solid waste. High temp fire brick and fireclay refractories help lower metal loss and scrap. These things make induction furnaces a cleaner way to melt metal.
Good refractory brick lowers repair costs and downtime. This saves money over time.
Induction furnaces are used in many industries. Steel makers use them to melt, clean, and mix metals. Car companies use them for precise parts and light alloys. Aerospace companies use them for special alloys and pure metals. Electronics makers use them to melt alloys for chips. Foundries and small businesses use small furnaces for jewelry and dental alloys. High alumina fire bricks, fireclay refractories, and high temp fire brick linings help with these hot jobs by giving insulation and protection.
Industry | Application |
|---|---|
Steel | Melting, refining, alloying |
Automotive | Precision parts, lightweight alloys |
Aerospace | Specialty alloys, high-purity metals |
Electronics | Semiconductors, circuit boards |
Foundries/SMEs | Jewelry, dental alloys, prototyping |
Picking the right refractory brick and knowing the cost helps industries stay safe and efficient. It also helps furnaces work well for a long time.
Induction furnaces melt metal using electromagnetic induction. Coreless types heat metal well and save energy. Refractory bricks line the furnace and give insulation. They also protect against chemicals and make the furnace strong. Good refractory bricks help the furnace last longer. They also make steel better and save energy. Checking the bricks often and picking the right kind lowers repairs. Experts say to use bricks that fit the heat, chemicals, and strength needed. New refractory bricks help make cleaner steel and keep furnaces working longer.
Main ideas:
Induction furnaces use electromagnetic induction to melt metal.
Refractory bricks keep the furnace safe, strong, and efficient.
Good materials and regular checks help the furnace work best.
Long-term Benefit | Explanation |
|---|---|
Longer Furnace Service Life | Good refractory bricks help the furnace last and cost less. |
Improved Steel Quality | The right lining keeps steel clean and pure. |
Energy Savings | Good insulation helps use less energy. |
Refractory brick covers the inside of the furnace. It keeps the furnace safe from very high heat. High alumina fire bricks and fireclay refractories help the furnace last longer. High temp fire brick keeps heat inside and saves energy.
High alumina fire bricks have more alumina in them. This helps them stand up to higher heat and last longer. Fireclay refractories work well for medium heat and cost less. Both types protect the furnace, but high alumina fire bricks are better for hard jobs.
The price of refractory bricks changes how much it costs to use a furnace. High-quality bricks, like high alumina fire bricks or high temp fire brick, last longer and need fewer fixes. This helps save money over time.
Yes. High temp fire brick keeps heat inside the furnace. This means less energy is lost and metal melts faster. Good insulation from refractory brick also lowers the cost to run the furnace.
Furnace owners should check the refractory brick lining often. If they see cracks or damage, they should change the bricks right away. Using high alumina fire bricks or fireclay refractories from trusted suppliers helps the lining last longer.
