Insulation material stops heat from going in or out of a building. Its main job is to keep places warmer in winter and cooler in summer. People use Thermal Insulation to help control the temperature inside. This means they do not need as much heating or cooling. Comfort gets better because rooms stay at one temperature. Heating and cooling use about 45% of all the energy in homes. Adding insulation can cut energy use by up to 68%. This helps people save money and makes buildings use less energy. Knowing what insulation is helps everyone pick better options for homes and work.
Insulation materials help buildings stay warm in winter. They also help buildings stay cool in summer. They do this by slowing down heat flow. This saves energy and money.
Good insulation stops heat from moving in three ways. It blocks conduction, convection, and radiation. This makes homes more comfortable. It also makes homes more efficient.
Picking the right insulation depends on many things. These include climate, building design, and cost. It also depends on needs like fire resistance or soundproofing.
Insulation works best when installed the right way. There should be no gaps. The materials should be dry. This helps insulation last longer.
Eco-friendly insulation uses recycled content. This helps protect the environment. It also lowers energy bills.
Insulation uses materials that slow down heat movement. People often wonder, "what is insulation?" The answer is easy. Insulation is a layer that keeps heat from entering or leaving a space. In buildings, insulation materials work as thermal control layers. They help keep rooms warm in winter and cool in summer.
Building science experts say insulation materials are products made to control thermal energy transfer. These materials include blanket insulation, radiant barriers, and trapped air gaps. Most insulation comes in batts or rolls. They are made from fiberglass, mineral wool, plastic fibers, or natural fibers. Some types, like foil-faced boards, can also block air, vapor, and water if installed right.
Tip: Installing insulation the right way is important. It works best when it fits tightly with no gaps. This stops air from moving through and keeps heat where you want it.
Here are the main jobs of insulation materials in buildings:
Give thermal resistance to slow heat flow.
Sometimes act as air, vapor, or water barriers.
Help keep indoor temperatures steady.
A table below shows how different insulation materials work:
| Material Type | Main Function | Extra Features |
|---|---|---|
| Fiberglass Batts | Thermal insulation | May include vapor barrier facing |
| Mineral Wool | Thermal insulation | Fire resistance, sound control |
| Polyisocyanurate | Thermal insulation | Can block air, vapor, and water |
| Extruded Polystyrene | Thermal insulation | Moisture resistance |
| Cellulose | Thermal insulation | Made from recycled paper |
Insulation materials have many important uses in homes and buildings. The main goal is to control heat flow. This helps people stay comfortable and saves energy.
Thermal insulation cuts down heat gain in summer and heat loss in winter. This means heating and cooling systems do not have to work as hard. Using less energy means lower bills and less harm to the environment.
Insulating material can also help in other ways:
Acoustic insulation: Some types lower noise between rooms or from outside.
Moisture control: Certain insulation blocks water and stops mold from growing.
Fire resistance: Mineral wool and other materials can slow down fire spread.
Structural support: Some panels give strength and can replace wood framing.
Environmental safety: Many products avoid harmful chemicals and use recycled content.
A chart below lists the main benefits and explanations:
| Purpose/Benefit | Explanation |
|---|---|
| Minimize heat transfer | Keeps heat inside during winter and outside during summer. |
| Reduce energy costs | Lowers heating and cooling bills. |
| Fire resistance | Some materials do not burn easily and protect buildings. |
| Air and vapor barriers | Facings can block air and moisture, keeping buildings dry and safe. |
| Acoustic control | Reduces noise between rooms and from outside. |
| Structural support | Some insulation panels can hold up walls and roofs. |
| Environmental friendliness | Uses recycled materials and avoids harmful chemicals. |
| Ease of installation | Batts, rolls, and panels make it easy to add insulation to new or old spaces. |
Note: Facings on insulation help protect the material. They make it easier to install and can add extra safety features like flame resistance.
Thermal insulation is important for making buildings energy efficient, comfortable, and safe. People pick different types of insulating material based on their needs, climate, and building design. Good insulation helps everyone live and work in better spaces.
When people know how insulation works, they can make better choices. The main job of thermal insulation is to slow heat transfer. This helps keep rooms comfortable and saves energy. To answer "how does insulation work," we need to look at three ways heat moves: conduction, convection, and radiation.
Heat moves in three main ways:
Conduction
Conduction is when heat moves through solids. For example, a metal spoon gets hot in soup because heat travels from one end to the other. In buildings, metal window frames let heat move fast. Thermal insulation stops conduction by making thermal breaks. These breaks block direct heat flow. Materials like fiberglass work well because they have thin fibers. There is not much solid material for heat to travel through.
Convection
Convection is when heat moves through liquids or gases. In homes, this means air moves inside walls or attics. Warm air rises and cool air sinks. This makes a cycle that moves heat around. Insulation traps air in small pockets. These pockets stop air from moving and slow heat transfer by convection. Spray foam insulation fills gaps and cracks. It blocks air movement even more.
Radiation
Radiation is heat moving in invisible waves, like the sun’s warmth. In buildings, radiant heat can go through walls and roofs. Reflective insulation, like aluminum foil, bounces back infrared rays. This stops radiant heat from passing through. For example, putting aluminum foil in walls can lower heat transfer by radiation from 206 BTUs to 10 BTUs. Adding more foil layers can cut radiant heat transfer by 94% and convection by 75%.
Tip: Fiberglass insulation traps air in tiny pockets. This lowers conduction and radiation. Continuous insulation layers also stop thermal bridging. Thermal bridging is when heat finds an easy path to move.
The table below shows how insulation types block each kind of heat transfer:
| Insulation Type | Blocks Conduction | Blocks Convection | Blocks Radiation |
|---|---|---|---|
| Fiberglass Batts | Yes | Yes | Some |
| Spray Foam | Yes | Yes | Some |
| Reflective Foil | No | Some | Yes |
| Mineral Wool | Yes | Yes | Some |
Thermal insulation does not make heat. It acts as a barrier with high thermal resistance. This barrier slows heat loss in winter and heat gain in summer. How well insulation works depends on its thermal conductivity, density, and moisture. Wet insulation does not work as well because water lets heat move faster.
Note: Good insulation can lower heating and cooling needs by up to 20%. This makes homes use less energy and feel more comfortable.
The R-value tells us how well insulation stops heat flow. A higher R-value means better thermal resistance and stronger thermal insulation. Each insulation type has its own R-value. This depends on what it is made of, how thick it is, and how dense it is.
R-value measures thermal resistance for a material or assembly.
It is found by taking the reciprocal of the U-factor (R = 1/U).
The total R-value for a wall or roof is the sum of each layer’s R-value.
Higher R-values mean better resistance to heat flow and better insulation.
To find heat loss, divide the temperature difference by the R-value.
R-value depends on thickness and thermal conductivity.
R-values add up for layers in a row, like resistors in a circuit.
R-value units are m²·K/W (SI) or ft²·°F·h/BTU (imperial).
For example, if the temperature difference is 10 K and the insulation has an R-value of 2 m²·K/W, the heat loss is 5 W/m².

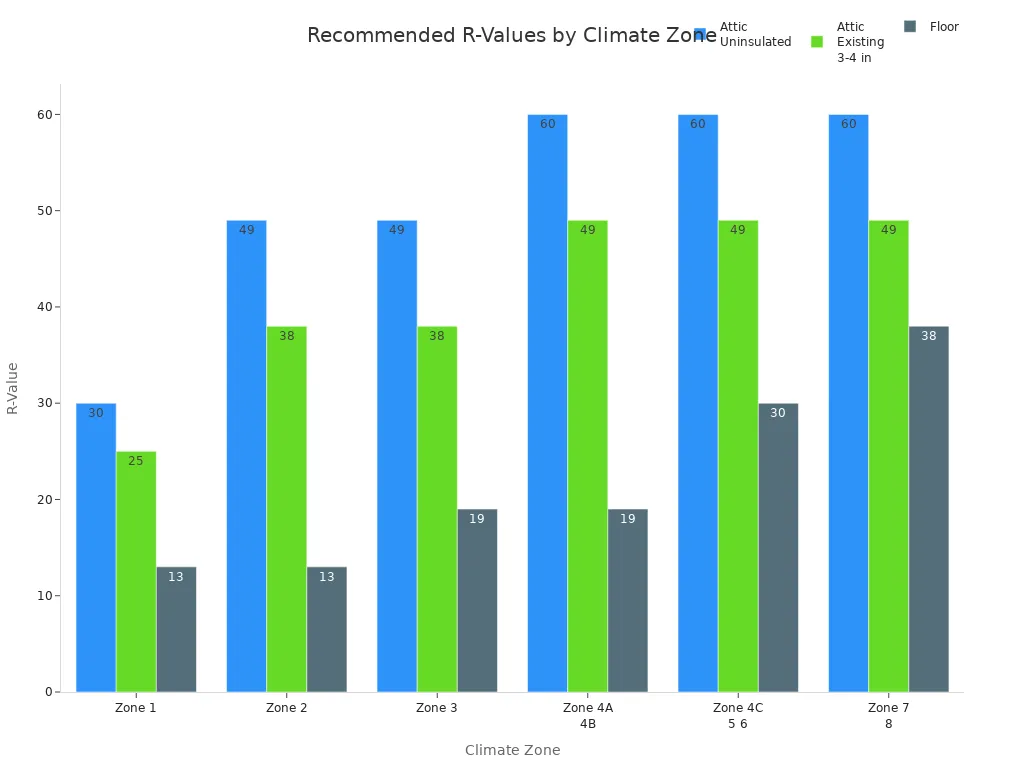

The table below shows the best R-values for different parts of a home in different climate zones:
| Climate Zone | Attic Insulation (Uninsulated) | Attic Insulation (Existing 3-4 in) | Floor Insulation |
|---|---|---|---|
| 1 | R30 | R25 | R13 |
| 2 | R49 | R38 | R13 |
| 3 | R49 | R38 | R19 |
| 4A and 4B | R60 | R49 | R19 |
| 4C, 5, 6 | R60 | R49 | R30 |
| 7 and 8 | R60 | R49 | R38 |
R-value helps people compare insulation materials. For example, fiberglass batt insulation has an R-value between 3.14 and 4.3 per inch. Spray foam insulation can reach about R-6 per inch. This means spray foam gives more thermal resistance for the same thickness.
Thermal insulation works best when it is a continuous layer. This stops heat from finding easy paths, called thermal bridges, through walls or roofs. The right R-value depends on the climate and the part of the building. Building codes set minimum R-values for walls, floors, and attics in each climate zone.

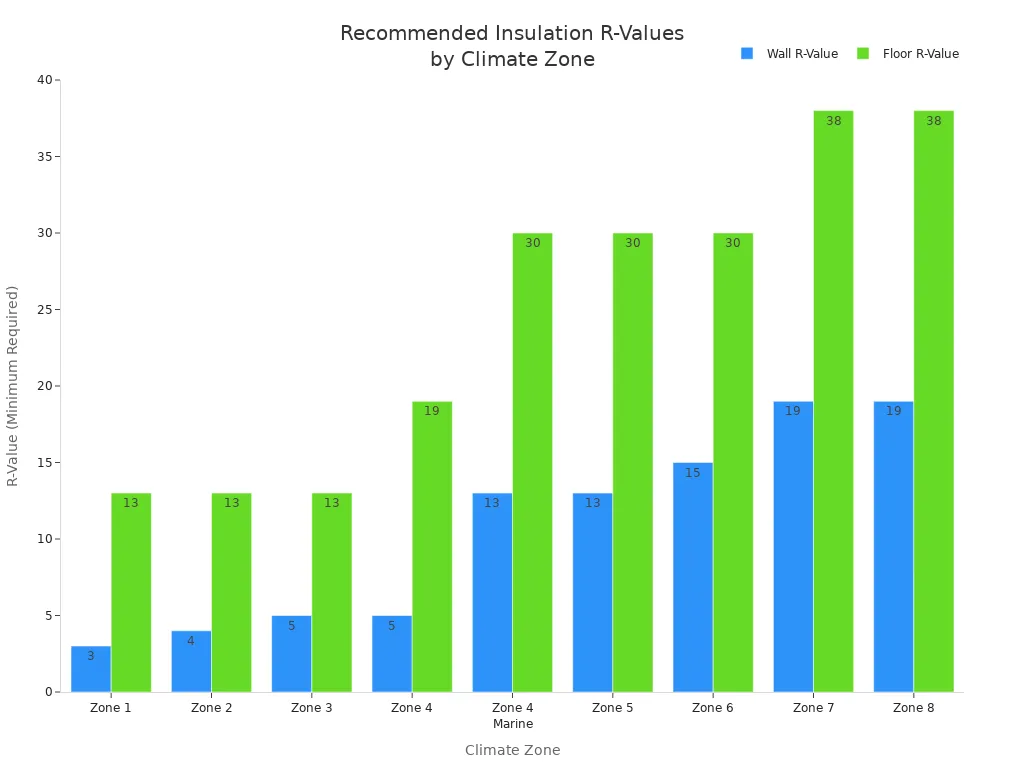

The table below shows the lowest R-values allowed by code for different parts of a home:
| Climate Zone | Wall R-Value | Floor R-Value | Basement Wall R-Value | Slab R-Value | Crawlspace R-Value | Window U-Factor |
|---|---|---|---|---|---|---|
| 1 | 3 | 13 | None | None | None | 1.2 |
| 2 | 4 | 13 | None | None | None | 0.65 |
| 3 | 5 | 13 | 5 | None | 5 | 0.5 |
| 4 | 5 | 19 | 10 | 10 | 10 | 0.35 |
| 4 Marine | 13 | 30 | 10 | 10 | 10 | 0.35 |
| 5 | 13 | 30 | 10 | 10 | 10 | 0.35 |
| 6 | 15 | 30 | 15 | 10 | 10 | 0.35 |
| 7 | 19 | 38 | 15 | 10 | 10 | 0.35 |
| 8 | 19 | 38 | 15 | 10 | 10 | 0.35 |
Note: The R-value of insulation can change if it gets wet or squished. Always keep insulation dry and in good shape for the best results.
Thermal insulation comes in many kinds. Each kind has special features and uses. People pick different types based on price, how well they work, and where they need them.
Fiberglass is a very common type of thermal insulation. It uses tiny glass fibers to trap air and slow heat. People put fiberglass batts in walls, attics, and floors. This material is light and does not burn easily. It does not rot or attract bugs. Fiberglass works in homes and big buildings. It also helps block sound. Many HVAC systems and factories use fiberglass because it is strong and does not let heat move fast.
Tip: Fiberglass batts must fit tightly. If there are gaps, they will not work well.
Mineral wool, or rock wool, is made from melted stone or slag spun into fibers. It can handle more heat than fiberglass and does not burn. Mineral wool is a good thermal insulator and blocks sound. Builders use it in walls, roofs, and around pipes. It keeps its shape and does not burn. Mineral wool is used where fire safety is very important.
Foam insulation includes things like polyurethane and polystyrene. Spray foam fills spaces and stops air leaks. This makes it great for small or tight spots. Rigid foam boards, like expanded polystyrene (EPS) and extruded polystyrene (XPS), keep out water and are easy to cut. Polyurethane foam has a high R-value for each inch. It costs more and needs a pro to install. Foam will not work well if it is not put in right. Gaps can let heat get out.
| Foam Type | R-Value per Inch | Best Use | Notes |
|---|---|---|---|
| Polyurethane | 6.5 | Walls, roofs, air sealing | High cost, air tight |
| Polystyrene | 4-5 | Foundations, walls | Moisture resistant, rigid |
Cellulose insulation is made from recycled paper treated to resist fire. It is blown into attics and wall spaces. Cellulose is good for the earth and has a good R-value. It traps carbon and takes less energy to make than other types. But it can settle over time and may bother people with allergies. Cellulose is not a bad thermal insulator, but it needs skilled workers to install it right.
Other types of thermal insulation use natural fibers like cotton, hemp, and sheep’s wool. These are safe for the earth and can be replaced. Perlite is a volcanic mineral that is light, does not burn, and resists chemicals. Builders use perlite in fire-safe plasters and light concrete. Aerogels and vacuum panels are new and have very high R-values but cost more. Some old materials, like asbestos, are not used now because they are bad for health.
Note: Good thermal insulators slow down heat. Bad thermal insulators, like metal, let heat move fast and do not keep buildings comfy.
| Material Type | Typical R-value Range | Cost Considerations |
|---|---|---|
| Fiberglass batt | R-13 to R-30 | Low cost, DIY possible |
| Mineral wool | Around R-4 | Moderate cost, fire resistant |
| Polyurethane foam | R-6.5 to R-12.6 | High cost, air sealing |
| Polystyrene board | R-3.8 to R-5 | Moderate cost, moisture resistant |
| Cellulose | R-3.1 to R-3.7 | Eco-friendly, skilled install needed |
Thermal insulation helps buildings use less energy. Adding insulation to ceilings, floors, and walls saves energy. People can save between 10% and 45% on energy use. Studies show these savings match new energy codes. If 46 million homes get more insulation, the country saves about 800 trillion BTUs each year. Each home saves around 17 million BTUs every year. Most homes get their money back in 5 to 6 years. Families save about $200 each year. Upgrading insulation lowers utility bills by 10% to 20%. The amount saved depends on climate, home size, and insulation type. Most people see lower heating and cooling costs.
| Upgrade Type | Average Savings (%) | Payback Period (Years) |
|---|---|---|
| Attic Insulation | 15 | 5-6 |
| Wall Insulation | 10-20 | 5-10 |
| Floor Insulation | 10 | 5-10 |
Insulation helps homes use less energy and saves families money.
Thermal insulation keeps rooms at a steady temperature. It stops cold drafts in winter and hot spots in summer. Insulation seals gaps and cracks. This blocks outdoor air, moisture, and allergens. It helps stop mold and keeps air clean. People feel better because rooms stay at one temperature. Insulation also lowers noise from outside and between rooms.
Insulation keeps heat inside in winter and outside in summer.
It helps control humidity by stopping moisture.
People breathe easier because insulation blocks dust and allergens.
Less noise means better sleep and less stress.
Good insulation makes homes healthy, quiet, and comfortable.
Thermal insulation helps protect the environment. It lowers the energy needed for heating and cooling. This cuts greenhouse gas emissions. Insulation saves over 100 times the energy used to make it in 20 years. If 4 million homes get new insulation, it can offset as much carbon dioxide as planting 667 million acres of trees. Many insulation materials use recycled content. This reduces waste and saves resources. Mineral wool and cellulose have low impact because they use recycled or natural materials. Foam plastics save energy but need more resources to make. Picking insulation with high recycled content and durability helps the planet.
| Material Type | Recycled Content | Environmental Payback (Years) |
|---|---|---|
| Mineral Wool | High | 7 |
| Cellulose | Very High | 7 |
| Polyurethane | Low | 10 |
| XPS | Low | 12 |
Insulation helps save energy and fights climate change.
Picking insulation depends on many things. Every building is different. The design, weather, and money you have all matter. The table below shows what to think about when picking insulation:
| Key Factor | Explanation | Importance for Buildings |
|---|---|---|
| Thermal Performance (R-value) | Measures how well insulation resists heat flow. Higher R-value means better performance. | Varies by climate and building part. |
| Air Permeability | Shows if air can pass through the material. | Helps control drafts and energy loss. |
| Vapor Permeability | Tells if moisture vapor can move through. | Prevents mold and moisture problems. |
| Moisture Tolerance | Shows how well insulation handles water. | Needed for basements and exterior walls. |
| Fire Resistance | Rates how insulation reacts to fire. | Required by codes, important for safety. |
| Installation Requirements | Explains how easy or hard it is to install. | Affects cost and long-term results. |
| Cost | Includes both material and installation expenses. | Impacts project budget. |
| Sound Control | Reduces noise between rooms or from outside. | Important for comfort in homes and offices. |
| Sustainability | Considers recycled content and environmental impact. | Important for green building goals. |
| Compatibility | Checks if insulation works with other materials. | Ensures durability and performance. |
| Insect Resistance | Shows if pests can damage the insulation. | Needed in pest-prone areas. |
| Ability to be Shaped | Allows for custom fitting in unique spaces. | Useful for retrofits and special designs. |
| Local Climate Zones | Guides material choice based on weather. | Ensures proper performance year-round. |
| Building Codes | Sets minimum standards for safety and efficiency. | Must be followed for legal compliance. |
| Application Area | Matches insulation to walls, roofs, or floors. | Each area has different needs. |
The weather where you live is very important. Cold places need insulation with high R-values and that can handle water. Hot, dry places do better with reflective insulation. Humid places need insulation that stops mold and water. The way a building is built also matters. The shape of the roof, type of walls, and how air moves inside all change what insulation works best. How much money you can spend is important too. Some insulation costs more but lasts longer or saves more energy.
Building codes tell you the lowest R-value and fire safety rules. Always check your local rules before you start.
Putting in insulation the right way is very important. It helps save energy and keeps heat in or out. Here are some tips to help you do it well:
Make sure all surfaces are clean and dry before you start.
Pick the best insulation for each spot, like walls or attics.
Put insulation in tightly so there are no gaps. Gaps let heat get out and waste energy.
Seal all edges and joints with tape or caulk to stop air leaks.
Use vapor barriers if you need to keep out moisture.
Follow the instructions from the company and use the right tools.
Wear gloves and masks, especially with fiberglass or spray foam.
Check your work after you finish. Look for missed spots, gaps, or squished insulation.
For big or tricky jobs, think about hiring a pro.
Some common mistakes are using the wrong insulation, leaving gaps, squishing the material, or not sealing air leaks. These mistakes make insulation work worse and can make bills higher or cause water problems.
Checking and taking care of insulation helps it last longer and keeps your home comfy.
Thermal Insulation acts like a shield that keeps heat from escaping or coming in. This helps buildings stay cozy and use less energy. People pay less for energy, feel fewer drafts, and breathe cleaner air. Foam, fiberglass, and cellulose are popular choices. Each one has its own good points.
Thermal Insulation keeps rooms comfy in every season.
Good insulation means you spend less on heating and cooling.
Using foam insulation to seal air gaps saves even more energy.
Picking the right Thermal Insulation helps people make homes and buildings safer, healthier, and better at saving energy.
Thermal Insulation stops heat from moving in or out. It helps people feel comfortable at home. It also saves energy. Builders use it to lower heating and cooling costs.
Thermal Insulation slows heat transfer by trapping air. It uses special materials to block heat. It keeps heat inside in winter. It keeps heat outside in summer. This helps rooms stay at one temperature.
Tip: Put Thermal Insulation in attics and walls. This helps homes stay warm in winter and cool in summer.
Mineral wool is great for soundproofing. It absorbs noise and resists fire. Fiberglass also helps lower sound between rooms. People use these in walls and ceilings.
| Material | Soundproofing | Fire Resistance |
|---|---|---|
| Mineral Wool | Excellent | High |
| Fiberglass | Good | Moderate |
Yes, Thermal Insulation helps lower energy use. It keeps heat inside during winter. It keeps heat outside during summer. Families save money on heating and cooling bills.
Lower energy bills
Less need for heating and cooling
More comfort all year
Many Thermal Insulation products use recycled materials. Cellulose and mineral wool are good for the earth. Foam insulation saves energy but needs more resources to make.
