How the Thermal Conductivity of Clay Bricks Contributes to Their Success as a Building Material

Thermal conductivity is important in building materials. Clay bricks have good thermal insulation. This helps keep indoor temperatures steady in homes and offices. Insulation materials like clay bricks stop heat from escaping or entering. This makes buildings use less energy. People feel fewer drafts and are more comfortable inside. Studies show bricks with high thermal properties can save up to 20% on energy. They also help people feel less uncomfortable.

Good insulation and thermal breaks keep indoor temperatures steady and air clean. This makes buildings work better and people feel more comfortable.

Key Takeaways

• Clay bricks have lots of small air pockets. These air pockets slow down heat. This helps buildings stay warm in winter. It also keeps them cool in summer. - When you add things like sawdust, you get more air pockets. More air pockets make bricks insulate better. This helps save energy. - Clay bricks insulate better than concrete blocks. But they do not insulate as well as wood. They also do not insulate as well as modern insulated panels. - Good thermal insulation in clay bricks lowers energy bills. It also makes rooms more comfortable all year. - Clay bricks last a long time. They resist fire and pests. They also save money on repairs. This makes them a smart choice for building.

Thermal Conductivity Basics

Thermal conductivity tells us how fast heat moves through something. Scientists use this to compare building materials. If a wall has high thermal conductivity, heat moves through it fast. If it is low, the wall keeps heat from moving quickly. This helps rooms stay warm in winter and cool in summer.

Thermal conductivity is measured in watts per meter-kelvin (W/mK). This unit shows how much heat goes through a material when temperatures are different.

Experts use steady-state methods to measure thermal conductivity. They put heat on one side of a sample. When both sides keep the same temperature difference, they check the heat flow. This method works well for building materials. It gives results that can be trusted.

There are a few ways to test thermal conductivity:

• Guarded Hot Plate Method: The sample is between a hot and cold plate. Heat is measured as it moves through.

• Heat Flow Meter Method: A meter checks the heat going through the sample.

• Laser Flash Method: A laser heats the sample fast. Sensors watch how quickly the temperature changes.

• Transient Hot Wire Method: A wire inside the sample heats up. The temperature change is measured.

Many things affect thermal conductivity. What the material is made of, its structure, temperature, and even small flaws can change how heat moves.

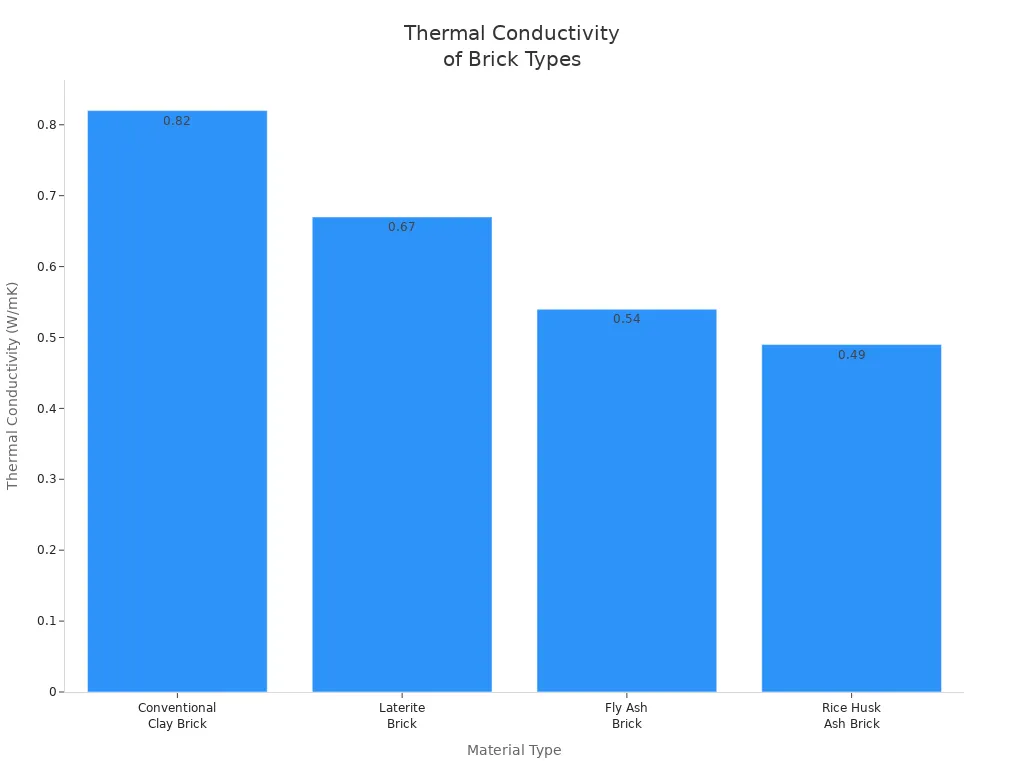

Here is a table with thermal conductivity values for some building materials:

Some clay bricks have things like straw or sawdust added. These make tiny air pockets in the brick. This lowers the thermal conductivity. It helps the brick insulate better and saves energy in buildings.

Thermal Insulation Explained

How It Works

Thermal insulation helps buildings stay warm in winter. It also keeps them cool in summer. It slows down how fast heat moves. Heat always goes from warm places to cooler ones. The first law of thermodynamics says energy cannot be made or destroyed. The second law says heat moves from hot to cold. Insulation uses these laws to control heat.

Many insulation materials trap air in tiny spaces. Air is a good thermal insulator. It does not let heat move fast. Clay bricks have small holes inside. These holes hold air and stop heat from moving quickly. Some bricks have special coatings or added materials. These can reflect heat. This stops radiant heat from getting in or out.

Insulation works best when it is put in right. Gaps or cracks let heat escape. This makes the insulation not work as well.

The R-value shows how well a material stops heat. A higher R-value means better resistance to heat. Builders add up the R-values of each wall layer. This gives the total resistance. For clay bricks, the R-value depends on thickness and thermal conductivity. Thicker bricks or bricks with more air pockets have higher R-values.

Heat Transfer Methods

Heat moves in three main ways. These are conduction, convection, and radiation. Each way changes how much heat gets in or out.

• Conduction: Heat moves through solids by touching. In buildings, this happens in walls, floors, and roofs. Clay bricks slow conduction. They have low thermal conductivity and air pockets.

• Convection: Heat moves through air or water. Warm air rises and cool air sinks. This makes currents. Clay bricks with cavities trap air. This stops air from moving and lowers convection.

• Radiation: Heat moves as waves. Sunlight coming in a window is an example. Some insulation has shiny surfaces. These reflect radiant heat away from the building.

Insulation materials like clay bricks use tricks to stop heat. They trap air to lower conduction and convection. Some bricks have surfaces that reflect heat. This lowers radiation. These things make clay bricks good thermal insulators.

Not all materials are good for insulation. Metals and glass let heat move fast. Clay bricks, wood, and foam are better. The R-value helps compare these materials. For clay bricks, the R-value is thickness divided by thermal conductivity. Builders add up the R-values of each layer. This gives the total resistance of a wall.

Tip: A wall with a high R-value keeps rooms comfy and saves energy.

There are different types of insulation for buildings. Some use foam, some use fiberglass, and many use clay bricks. Each type has its own R-value and resistance. Picking the right insulation depends on climate and building needs.

Clay Bricks and Their Properties

Structure and Composition

Clay bricks have a special structure. They are made from natural clay minerals. Kaolinite is the main mineral used. Makers also add quartz and some organic materials. When bricks are fired, they go through changes. Water leaves the brick. Cellulose breaks down. Kaolinite loses water molecules. These steps make the brick strong.

Some companies, like Yufeng Refractory, use new methods to make better bricks. Their bricks have kaolinite, illite, quartz, and K-feldspar. These minerals change when heated. Illite stays stable at high heat. K-feldspar can turn into plagioclase if calcium is there. Kaolinite shrinks as it gets hot. This helps balance the way quartz expands. This process helps stop cracks from forming.

Makers often add things like sawdust or palm shell powder. These are called organic fillers. They help make tiny holes in the brick. When the brick is fired, these fillers burn away. This leaves small air pockets inside. The brick becomes lighter and less dense. The size and number of these holes depend on what and how much filler is used. SEM-EDX analysis shows elements are spread out evenly. This gives the brick a smooth microstructure.

• Main minerals: kaolinite, quartz, illite/mica, K-feldspar

• Organic additives: sawdust, palm shell powder, grapevine shoots

• Firing changes: moisture loss, cellulose breakdown, mineral transformation

• Pore formation: organic additives burn off, leaving air pockets

• Microstructure: homogeneous element distribution

Using organic fillers can make bricks up to 35% less dense. This helps insulation and is better for the environment.

Impact on Thermal Conductivity

How a clay brick is made changes how it handles heat. Porosity and density are very important. Bricks with more holes trap more air. Air slows down heat movement. Lower density means less solid stuff for heat to move through. This makes the r-value higher and insulation better.

Companies like Yufeng Refractory make light clay insulation bricks. These bricks have lots of holes and are not heavy. They insulate better than regular clay bricks. The table below shows how different bricks compare:

Bricks with lower density have more air pockets. Air does not let heat move fast. So, these bricks stop heat better. Bricks with higher density have fewer holes. They have more solid material. Heat moves through them more easily. This lowers their r-value.

How bricks are made also changes their thermal properties. Adding things like vermiculite or sawdust makes more holes. The firing temperature and type of additive matter too. For example, bricks with 25% wood ash can have the same thermal conductivity as bricks without it. But they are lighter and have more holes. Nanofillers like reduced graphene oxide can help even more. They make the brick better at stopping heat.

Studies show that adding 2–25% organic material makes up to 35% more holes. This can lower density by 10% and cut thermal conductivity by 40%. But too many holes can make bricks weaker. Makers must find a balance between strength and insulation.

Tip: Small, even holes help insulation. Big or uneven holes let more heat pass through.

Clay bricks with lots of holes and low density are good at stopping heat. They help keep buildings warm or cool and save energy. The r-value tells how well a brick resists heat. Builders pick bricks based on r-value and what the building needs.

Material Comparison

Clay Bricks vs. Concrete

Clay bricks and concrete blocks are both used a lot. But they do not handle heat the same way. Red clay bricks let less heat pass through than concrete blocks. Some concrete blocks have 30% date palm ash. These blocks have a thermal conductivity of 0.432 W/mK. This is about 47% lower than regular concrete blocks. So, clay bricks and special blocks stop heat better. Buildings with clay bricks stay cooler in summer. They also stay warmer in winter. Clay bricks take in and let out heat slowly. This helps keep rooms at a steady temperature. Concrete blocks are cheaper and faster to use. But they often need more insulation to work as well as clay bricks.

Note: Clay bricks insulate better by themselves. Concrete blocks can get better if you add insulation.

Clay Bricks vs. Wood

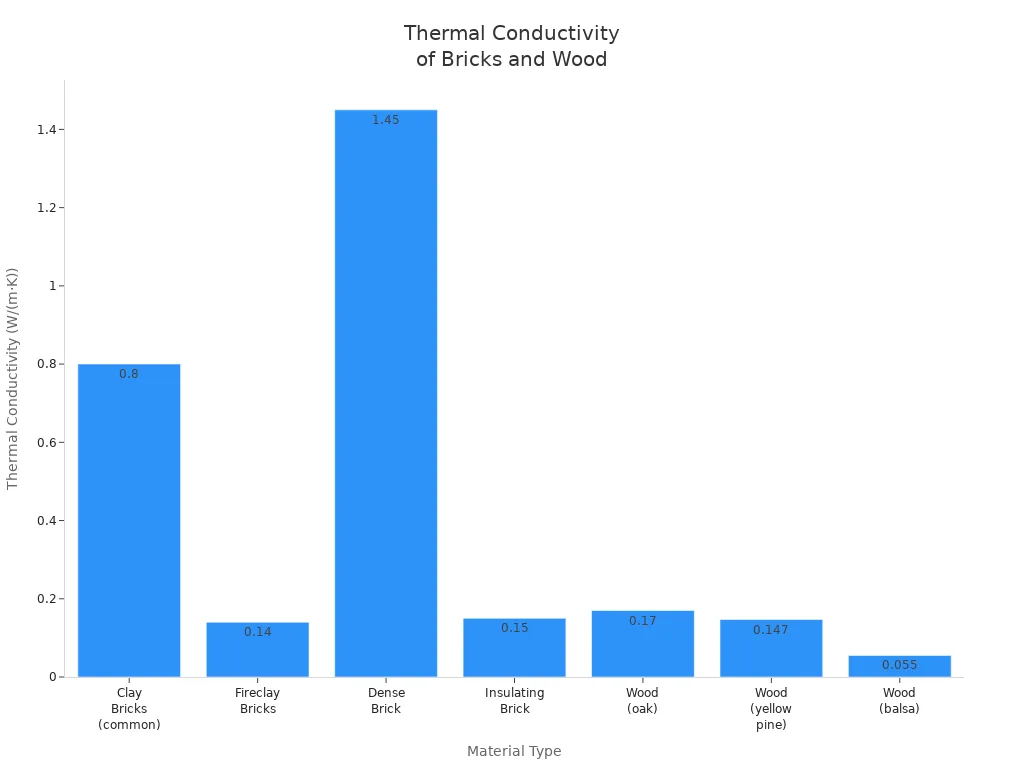

Wood and clay bricks both help keep buildings warm or cool. But wood usually does a better job. Oak and yellow pine have lower thermal conductivity than clay bricks. Oak has a value of about 0.17 W/(m·K). Clay bricks are between 0.6 and 1.0 W/(m·K). This means wood slows heat down more than clay bricks. Builders use wood for cabins and homes in cold places. Wood keeps heat inside better.

But clay bricks last longer than wood. They also do not burn as easily. Wood can rot or get eaten by bugs. Bricks stay strong for many years.

Clay Bricks vs. Panels

Modern panels, like Structural Insulated Panels (SIPs), insulate very well. SIPs have foam between wood sheets. This gives them very low thermal conductivity. Some panels have U-values as low as 0.1 W/m²K. This makes them better than clay bricks for thin walls. SIPs are quick to build with and keep rooms at a steady temperature. Clay bricks need thick walls and their thermal mass to insulate. They can last up to 100 years. But they need more care and can lose insulation at the joints. Panels need less care and keep their insulation over time. But they may not last as long as bricks.

Benefits for Buildings

Energy Efficiency

Clay bricks help buildings use less energy. Their effective thermal insulation slows heat movement through walls. This keeps rooms cooler in summer and warmer in winter. Builders often add phase change materials (PCMs) to clay bricks. These PCMs store heat during the day and release it at night. Studies show that PCM-filled clay bricks can lower indoor heat gain by up to 67.84%. Energy consumption drops by as much as 61.8%. In some cases, annual energy savings reach $2,079 for a duplex house. The table below shows how different methods improve energy efficiency:

Clay bricks also reduce heating and cooling loads. Some test houses saw indoor temperature drops of 4.7°C. Cooling loads fell by up to 23.66%. These results show clay bricks boost energy efficiency in homes and offices.

Comfort

Clay bricks create comfortable spaces. Their thermal insulation keeps indoor temperatures steady. The bricks absorb heat during the day and release it at night. This reduces temperature swings to just ±3°C to ±5°C. People feel less hot in summer and less cold in winter. The hygroscopic nature of clay bricks helps control humidity. Indoor air stays in the comfort range of 30%-60%. Air quality improves because clay bricks allow air to move through tiny pores. CO2 levels stay low, and fewer pollutants build up.

• Clay bricks moderate indoor temperature changes.

• Humidity stays in a healthy range.

• Air quality improves due to natural porosity.

• Occupants report high satisfaction (80%-85%).

A case study in Jordan found clay brick rooms were cooler by 4-5°C in summer and warmer by 3-5°C in winter compared to concrete rooms. Residents felt more comfortable and used less energy for heating.

Clay bricks help people feel comfortable all year. They keep rooms quiet, clean, and healthy.

Cost Savings

Clay brick buildings save money over time. Their insulation reduces heat transfer through walls by up to 50%. Homeowners see energy bill savings of 2% to 7% compared to fiber cement homes. Brick costs a bit more to install, but it lasts longer and needs less upkeep. Owners do not need to paint or pressure wash brick walls. Maintenance costs stay low. Brick homes also have lower insurance premiums because they resist fire and weather damage.

A typical brick home costs about 3.6% more to build than a fiber cement home. Monthly mortgage payments rise by only $35. Over the years, savings from lower energy bills and less maintenance add up. Brick homes often sell for higher prices because buyers value durability and efficiency.

Brick buildings offer long-term savings. Owners spend less on repairs and energy, making clay bricks a smart investment.

Clay bricks work well in buildings because they help control indoor temperature. This makes rooms feel more comfortable. Builders look at how dense and porous bricks are. These things change how well bricks insulate and save energy. Experts say adding organic materials and making walls thicker helps bricks work better. Studies show that changing bricks can lower heat flow and energy use. Knowing these things helps people pick the best bricks for safe and comfy homes.

• Important things to remember:

• Density and porosity affect how heat moves

• Organic materials help bricks insulate better

• Good design helps save more energy

FAQ

What makes clay bricks good for thermal insulation?

Clay bricks have lots of tiny air pockets inside. These air pockets slow down how heat moves. The brick’s structure helps keep rooms warm in winter. It also helps keep them cool in summer. Builders pick clay bricks for strong thermal insulation. They also help save energy.

How does thermal insulation in clay bricks compare to concrete blocks?

Clay bricks insulate better than most concrete blocks. Concrete lets heat move through it faster. Clay bricks slow down heat transfer. This helps buildings stay comfy and use less energy.

Can thermal insulation in clay bricks reduce energy bills?

Yes! Good thermal insulation in clay bricks lowers heating and cooling needs. Homeowners pay less for energy bills. Many people save money each year with clay brick walls.

Are clay bricks safe and durable for thermal insulation?

Clay bricks resist fire, bugs, and bad weather. They last for many years. Their thermal insulation stays strong over time. Many builders trust clay bricks for safe, long-lasting walls.
