Refractory materials protect machines from very high heat. These materials do not get damaged by chemicals. They keep their shape even when it is very hot. This makes them important for high-temperature jobs. They have strong shape stability and do not rust easily. Different linings use materials that melt from 1580°C to over 4000°C, as shown below.

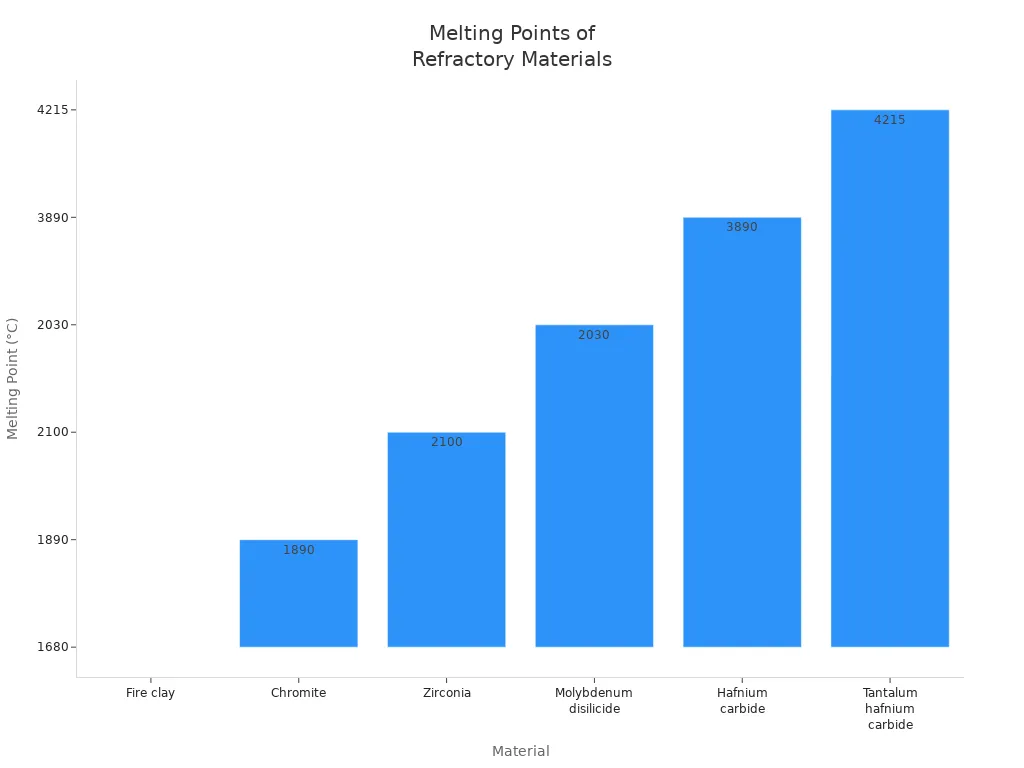

Refractory Type | Melting Point Range (°C) | Example Material |
|---|---|---|
Normal Refractories | 1580 – 1780 | Fire clay |
High Refractories | 1780 – 2000 | Chromite |
Super Refractories | Above 2000 | Zirconia |
When we know how heat moves in these materials, engineers can pick the best lining for each job. This helps machines last longer. It also saves energy and keeps people safe when it is very hot.
Heat moves by conduction, convection, and radiation. Knowing these helps pick the right refractory material for each job.
Refractory materials can be acidic, basic, or neutral. Each type works best in certain chemical places to protect equipment well.
Important properties are heat resistance, chemical stability, dimensional stability, and corrosion resistance. These help refractories last longer and work better.
Refractories with low thermal conductivity save energy. They keep heat inside and protect workers from high heat.
Checking often, installing correctly, and picking the right refractory keeps things safe. This also saves money and helps equipment last longer.
Heat can move in three main ways. Each way changes how refractory materials work in hot places. If engineers know these ways, they can choose the best refractory for each job.
Conduction is when heat moves through solids. In a furnace, heat goes from the hot wall to the cooler wall. Refractory materials with low thermal conductivity slow this down. Ceramic fiber refractories help keep heat inside and stop energy loss. This saves fuel and keeps the outside cooler. The type of refractory depends on how much heat it lets through. Dense bricks let more heat pass than light fiber. Engineers check this when they want to keep heat in or out.
Convection moves heat with gases or liquids. Hot air or gas touches the refractory and takes heat away. In kilns and furnaces, convection changes the inside temperature. Refractory materials must handle quick temperature changes from moving air or gas. Good design spreads heat evenly. This keeps the temperature steady and helps make better products. Some materials do not get damaged by fast heating and cooling.
Radiation sends heat as waves, even through empty space. High-temperature furnaces give off a lot of radiant heat. Refractory materials inside must reflect or absorb this energy. Some have special coatings to reflect heat back inside. Others soak up heat and protect the outside. Radiation can make the surface very hot. The right material will not crack or change shape from this.
Knowing these heat transfer types helps pick the best refractory. Each type puts different stress on the material. The right choice saves energy, keeps temperatures steady, and makes the refractory last longer.
Ceramic fiber refractories slow conduction and cut heat loss.
Even heat spread from conduction and convection keeps furnace temperatures steady.
The chemical makeup and density affect how well the refractory handles heat.
Controlling conduction, convection, and radiation makes insulation and durability better.
There are three main chemical types of refractory materials. Each type acts differently with heat, chemicals, and other things. Engineers pick the right type for each job by knowing these differences. Some people sort refractory materials by melting point. But chemical type shows better how they work in tough places.
Acidic refractory materials can handle acids but react with bases. These materials often have silica or alumina inside. They work best where there are acidic slags or gases. Glass furnaces and coke ovens use acidic refractory lining. This lining stands up to acid attack. Silica bricks and fireclay bricks are common examples. These bricks keep their shape and strength when it is hot. They do not work well with basic slags. So engineers do not use them in those places.
Examples of Acidic Refractory Materials:
Silica brick
Fireclay brick
Tip: Acidic refractory types are good for places with acidic byproducts. They do not last long in basic or alkaline spots.
Basic refractory materials can handle basic slags and alkaline stuff. They have magnesia, dolomite, or sometimes chromite. Steelmaking furnaces use basic refractory lining. It stands up to lime and other basic materials. These materials do not react with basic slags. So they last longer in those places. Engineers pick basic refractory when the process uses lots of lime or bases.
Examples of Basic Refractory Materials:
Magnesia brick
Dolomite brick
Here is a table that shows the main differences:
Refractory Type | Main Component | Best Use Environment | Example Material |
|---|---|---|---|
Acidic | Silica, Alumina | Acidic slags/gases | Silica brick |
Basic | Magnesia, Lime | Basic slags/alkaline | Magnesia brick |
Neutral refractory materials do not react with acids or bases. They work well in many places. These materials include chromite, alumina, and carbon. Neutral refractory types are good for jobs with both acidic and basic slags. They protect furnaces from chemical attack on both sides. Engineers use neutral refractory materials in non-ferrous metal industries and some steel furnaces.
Examples of Neutral Refractory Materials:
Chromite brick
Alumina brick
Carbon brick
Refractory ceramic fiber is also a neutral type. It insulates well and resists many chemicals. This makes it useful for many hot jobs.
Note: Picking the right chemical type helps the refractory last longer. It also keeps the furnace safe.
Refractory materials have different strengths because of their chemical makeup. Acidic, basic, and neutral types all have uses in industry. Engineers look at the process, slags, and temperature before choosing the best refractory lining. This careful choice protects equipment and saves money.
Refractory materials need special features to work in tough places. These features help them do well in furnaces, kilns, and reactors. High heat and chemicals can hurt equipment. Each feature helps the refractory last longer and protect machines.
Heat resistance is the most important feature for refractories. These materials must stay strong and keep their shape when it is hot. In steel making, refractories face heat from 1,200°C to 1,800°C. They must handle at least 1,200°C. Some jobs need even higher heat resistance, sometimes over 2,000°C. If the material does not melt or get soft, it keeps the lining safe. This stops equipment from breaking.
Property | Contribution to Durability in Harsh Industrial Environments |
|---|---|
Extremely High Melting Point (>2000°C) | Keeps its shape at very high heat. This stops melting or bending when it gets really hot. |
Refractories with high heat resistance do not bend or break in strong heat. This lets them protect furnaces and kilns for a long time. Most materials lose strength in high heat. Refractories stay strong and work well.
Tip: Always check how much heat a material can take before using it in steel, glass, or cement jobs. Picking the right one stops expensive problems.
Chemical stability means the refractory does not change when it touches gases, slags, or chemicals. This keeps the lining safe from chemical damage and helps it last longer. Acidic, basic, and neutral refractories have different levels of chemical stability. Acidic types fight acids, basic types fight bases, and neutral types fight both.
Chemical stability also depends on how pure and strong the material is. Pure alumina or magnesia refractories resist chemical changes very well. They do not get weak or crack when chemicals touch them. This is very important in places like chemical plants or smelters.
Property | Contribution to Durability in Harsh Industrial Environments |
|---|---|
Stable Oxide Layer Formation | Makes a shield against rust and damage. This helps the refractory last longer in places with lots of chemicals. |
Note: Chemical stability helps refractories last longer where acids, bases, or slags can hurt the lining.
Dimensional stability means the refractory keeps its size and shape when it gets hot or cools down. High heat can make some materials grow, shrink, or crack. Good refractories do not change shape. They do not bend or break, even after many heating and cooling times.
Thermal shock resistance helps with dimensional stability. If the temperature changes fast, the refractory must not crack. This helps the lining survive in furnaces that heat up and cool down a lot.
Property | Contribution to Durability in Harsh Industrial Environments |
|---|---|
Thermal Shock Resistance | Stops cracking or bending from quick temperature changes. This helps the refractory last longer. |
High Creep Resistance | Stops slow bending from long heat and pressure. This keeps the shape and strength over time. |
Refractories with good dimensional stability keep furnaces safe and lower repair costs. Engineers look for this when picking linings for kilns, boilers, and reactors.
Corrosion resistance keeps the refractory safe from slags, melted metals, and chemicals. In places like copper refining or chemical plants, this is very important. Some refractories fight corrosion better than others.
Magnesia-chrome refractories work well in chemical plants and copper refining. They fight heat shock, corrosion, and wearing away.
Alumina-spinel refractories fight strong slags. They make a shield that blocks chemical damage.
Magnesia-aluminate spinel refractories are strong and fight corrosion well. They stop slag and metal from getting in.
Chromium refractories with less Cr2O3 also fight corrosion by making thick shields.
Chromium-free or low-chromium alumina-spinel and magnesia-aluminate spinel refractories fight corrosion best in chemical plants.
Alert: Some magnesia-chrome refractories can make bad chemicals at high heat. Safer choices are alumina-spinel and magnesia-aluminate spinel refractories.
Corrosion resistance keeps the lining strong in places where things wear away fast. It stops leaks, damage, and costly repairs.
Low thermal conductivity means the refractory does not let heat move through it easily. This keeps the heat inside the furnace and saves energy. It also keeps the outside of the equipment cool.

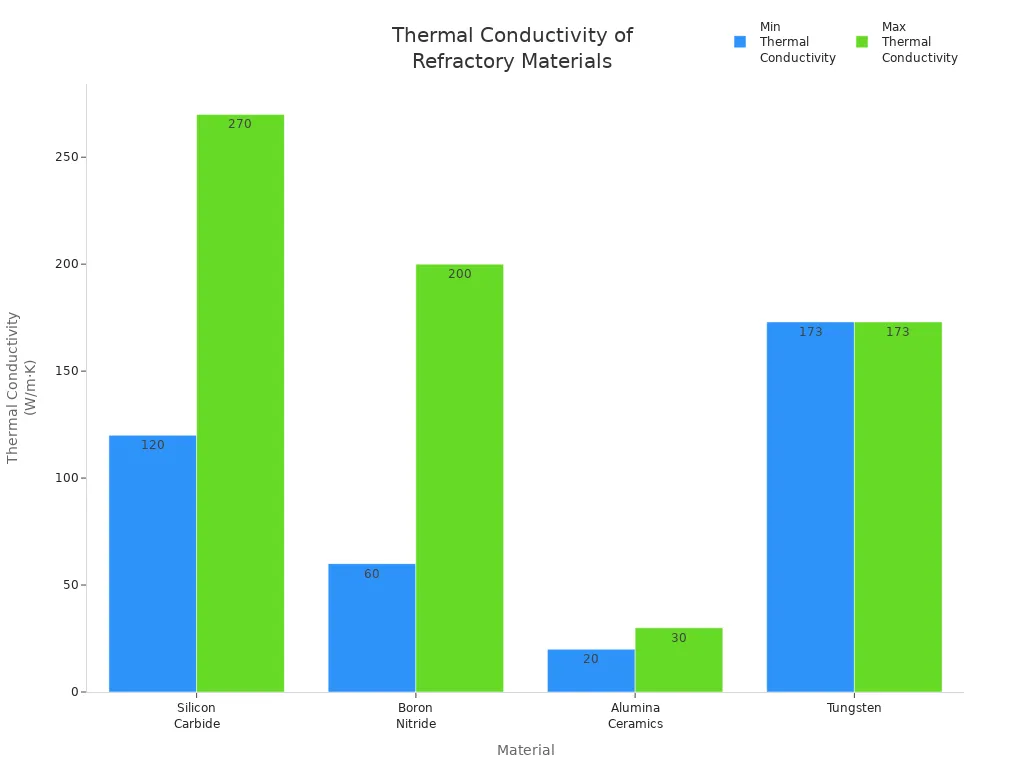

Good refractory materials have different thermal conductivity levels. The table below shows some common types:
Material | Thermal Conductivity Range (W/m·K) | Notes |
|---|---|---|
Silicon Carbide | 120 – 270 | Changes by type; used in electronics |
Boron Nitride | 60 – 200 | High heat movement, does not carry electricity |
Alumina Ceramics | 20 – 30 | Used for insulation |
Tungsten | ~173 | Does not react; used in tubes and electrodes |
Refractories with low thermal conductivity, like ceramic fiber or alumina ceramics, are great for insulation. They keep the furnace hot inside and cool outside. This saves energy and keeps workers safe.
Note: Low thermal conductivity helps stop heat loss and saves fuel in hot jobs.
Refractories also need to be strong, hard, and fight wearing away. These features help them last in places with lots of hits and rubbing. High density and weight make the refractory stronger and more stable. Good heat resistance and these features make the material last a long time.
Property | Contribution to Durability in Harsh Industrial Environments |
|---|---|
High Strength and Hardness | Lets use in tools and drills. Fights damage and bending even when hot. |
Abrasion and Wear Resistance | Makes parts last longer when they rub or get hit, like valve seats and nozzles. |
High Density and Specific Gravity | Makes the material tough and strong. Good for jobs with lots of pressure. |
Heat and Electrical Conduction | Helps in many jobs by moving heat and electricity well. This helps the material stay strong. |
Refractories with these features work well in hot, corrosive, and rough places. They protect machines, save energy, and lower repair costs.
Callout: The best mix of heat resistance, strength, and stability makes the refractory last longer and work better in any job.
Refractory materials often face direct heat in furnaces. Conduction is how heat moves through solids. Engineers check how well these materials slow down heat. They look at two main things:
Allowable working fluid temperature
Minimum wall thickness needed
Nickel-based alloys like Inconel 617 and Haynes 230 work better than stainless steel. Inconel 617 can take higher heat but needs a thicker wall. Haynes 230 can use a thinner wall at the same heat. These choices help keep things safe and save money. The best refractory keeps heat inside and shields the outside. Low porosity and high density stop heat from passing through. Fibrous and cellular materials trap air to slow heat. Some coatings help the material handle more heat and keep pores small.
Tip: Lowering the working fluid temperature just below its highest point can make the wall thinner. This saves money and keeps the refractory safe.
Convection happens when hot gas or liquid touches the refractory. Heat moves from the fluid to the material. Good refractory materials can handle quick temperature changes. They need to stay strong and keep their shape. Low porosity stops heat from getting in fast. Fibrous materials like ceramic fiber trap air and slow heat. Hybrid coatings add extra protection to the surface. These coatings keep the surface strong and flexible, even if the temperature changes quickly.
A table shows what matters most for convection:
Key Property | Why It Matters for Convection |
|---|---|
Low Porosity | Stops fast heat flow |
Thermal Stability | Keeps shape during quick changes |
Mechanical Strength | Prevents cracks and breaks |
Note: Refractory materials with low porosity and strong coatings last longer where hot air or gas moves around.
Radiation sends heat as waves and does not need touch. High heat in kilns and furnaces makes strong radiant heat. The best refractory materials for radiation have special structures. Light, porous insulation like aluminum silicate fibers and ceramic fibers work well. These materials do not let heat move through them easily and reflect heat. High alumina bricks and silicon carbide can take high heat but do not insulate as well as fibers.
Porous materials trap air and lower heat loss. Reflective coatings bounce heat back inside. This keeps the outside cooler and saves energy. The structure and density of the refractory change how much heat gets out.
Aluminum silicate wool and ceramic fibers insulate best in hot kilns.
High alumina bricks and silicon carbide protect against heat but are heavier and do not insulate as well.
Callout: The right mix of low thermal conductivity, high reflectivity, and strong structure helps refractory materials stop radiant heat loss.
Picking the right refractory material depends on what the job needs. Engineers first look at how hot the furnace will get. Some furnaces get hotter than 1800°C, so the refractory must handle that. They also check if the area is acidic, basic, or neutral. This changes which refractory works best. For example, steelmaking uses magnesia-carbon bricks because they handle heat and chemicals. Glass furnaces need AZS or silica bricks to deal with melted glass.
The table below shows how different industries pick refractory materials for their equipment:
Industry | Equipment | Application Needs |
|---|---|---|
Steelmaking | Blast furnace, converter | Needs high alumina, magnesia-carbon bricks for heat and chemicals; insulation uses IFB or microporous boards. |
Cement | Rotary kiln, cooler | Burning zones use magnesia-chrome bricks; other zones need abrasion-resistant, lightweight materials. |
Glass | Melting tank, regenerator | Pool zones use AZS or silica bricks; backup layers use ceramic fiber for insulation and shock resistance. |
Petrochemical | Cracking furnace, reactor | Needs thermal stability and chemical resistance; insulation uses ceramic fiber and microporous boards. |
Aluminum | Melting furnace, cell | Uses low-silicon, high-alumina or silicon carbide bricks; backup insulation uses ceramic fiber boards. |
Refractory ceramic fiber is good for insulation in many jobs. It keeps heat inside and helps save energy. Engineers also think about how strong the material is. They check if it can handle expansion, shock, rubbing, and hits. The shape of the material matters too. Some jobs need bricks, others need castable or sprayed material. Cost, how easy it is to put in, and repairs are important too. Experts help pick the best refractory for each job.
Tip: Always choose refractory that matches the heat, chemicals, and strength needed for the job. This keeps equipment safe and working well.
To make refractory materials last, you need to pick the right one and take care of it. Checking the lining often helps find cracks or damage early. Looking, using heat cameras, and sound tests can find problems before they get worse. Putting in the refractory the right way is important. If you mix it wrong or do not let it dry enough, it gets weak. Always follow the maker’s instructions for drying and curing.
Here are some best practices to help refractory last longer:
Check linings often for cracks, hot spots, or shrinking.
Use good materials that fit the heat and chemicals.
Hire skilled workers to install and fix the lining.
Plan for quick repairs to stop long shutdowns.
Add joints for expansion to stop cracks.
Use strong anchors to keep the lining in place.
Replace refractory if it is too damaged to fix.
Industry rules help guide how to pick and care for refractory. They say you must check, certify, and keep up with maintenance. Good records and expert help during installation stop mistakes. Doing these things keeps equipment running longer and safer.
Note: If you skip drying times, use the wrong material, or do not check the lining, it can fail early. Taking care of refractory and making good choices keeps both equipment and people safe.
Picking the right refractory materials helps keep machines safe. Engineers choose materials that fit the heat and the place. Research shows special materials and heat treatments make them stronger. This also helps them move heat better. These changes help when temperatures go up and down fast. High heat and chemicals can change how materials work. Refractory materials need to fight rust, stay the same shape, and handle quick temperature changes. Always look at what the job needs. Follow good steps to make the refractory last longer.
Using the right refractory materials stops heat damage, saves energy, and helps machines last longer.
Refractory materials can handle very high heat. They do not change shape or get weak when hot. They also do not break down from chemicals. These features help them work in places with lots of heat and damage.
Refractory ceramic fiber has tiny air pockets inside. These pockets slow down how fast heat moves through it. This helps stop heat from escaping. It works well in hot machines and saves energy. It also keeps the outside cooler.
Basic types like magnesia brick and alumina-spinel fight corrosion best. They protect linings in chemical plants and steel factories. Neutral types also stay strong and last long in tough jobs.
Refractory Type | Best Use | Example Material |
|---|---|---|
Basic | Corrosive zones | Magnesia brick |
Neutral | Mixed zones | Alumina brick |
Yes, castable or gunned material can fix broken linings fast. They fill in cracks and holes in hot equipment. These materials can take high heat and make the lining strong again.
Durability means the material lasts a long time in hard jobs. It does not wear out from heat or chemicals. Strong materials need fewer repairs and keep machines safe. Engineers pick durable materials for important jobs.
