Refractory materials are engineered inorganic materials designed to retain their physical strength, dimensional stability, chemical resistance, and thermal performance when exposed to high temperatures. They include refractory bricks, insulating fire bricks, monolithic refractories, ceramic fiber products, refractory coatings, and advanced ceramic materials used to protect furnaces, kilns, reactors, ladles, boilers, and other thermal equipment.
Section | Summary |
|---|---|
What Refractory Material Means: Definition | Defines refractory materials and explains the properties that distinguish them from ordinary construction materials. |
What Refractories Are Made Of | Examines alumina, silica, magnesia, fireclay, mullite, spinel, silicon carbide, ceramic fibers, binders, and aggregates. |
Types of Refractory Materials | Compares acidic, basic, neutral, dense, insulating, shaped, and monolithic refractory systems. |
Refractory Products: Shaped, Unshaped & Specialty | Explains refractory bricks, castables, mortars, ramming materials, ceramic fiber products, and specialized components. |
Refractory Ceramics: Ceramic Refractory Materials Explained | Examines ceramic refractory materials including alumina, mullite, silicon carbide, and other engineered ceramics. |
Refractory Insulation Materials | Explains insulating fire bricks and ceramic fiber systems used to reduce thermal losses. |
Furnace Refractory Material | Discusses how refractory materials are selected for furnaces, kilns, ladles, boilers, and thermal equipment. |
Refractory Coating Materials | Covers protective refractory coatings and their role in surface protection and thermal management. |
Industrial Applications | Reviews refractory use in steel, cement, glass, ceramics, foundries, power generation, and heat treatment. |
Refractory Maintenance Guide | Explains inspection, failure diagnosis, repair planning, drying, heat up, and refractory lining maintenance. |
A refractory material is an inorganic, nonmetallic material engineered to function where ordinary construction materials would soften, melt, react, deform, or rapidly lose strength. Temperature resistance alone, however, is not enough to define a useful refractory.
A lining may face thermal cycling, molten slag, metal penetration, alkaline gases, abrasion, mechanical loading, and dimensional stress simultaneously. For this reason, refractory bricks are normally selected according to operating conditions rather than maximum temperature alone.
Refractories are produced from heat resistant minerals and synthetic ceramic raw materials. Common constituents include fireclay, calcined bauxite, alumina, silica, magnesia, mullite, spinel, zircon containing materials, silicon carbide, and ceramic fibers.
The chemistry determines how a material reacts with its operating environment. High alumina refractory bricks, for example, are produced from materials such as flint clay, chamotte, and high alumina bauxite. Commercial grades can contain approximately 36 to 85 percent alumina.
Magnesia alumina spinel refractory bricks illustrate how composition is engineered around application chemistry. Such bricks can combine sintered magnesia, fused magnesia, and fused alumina magnesia spinel to obtain resistance to chemical attack, abrasion, thermal shock, and combined thermal and mechanical loads.
Acid refractories
Silica rich materials are generally selected for environments where acidic chemical conditions dominate.
Basic refractories
Magnesia based products resist basic slags and are widely associated with metallurgical and cement applications.
Neutral refractories
High alumina, carbon, chromia, and selected advanced ceramics may tolerate a broader range of chemical environments.
Category | Examples | Primary Function |
|---|---|---|

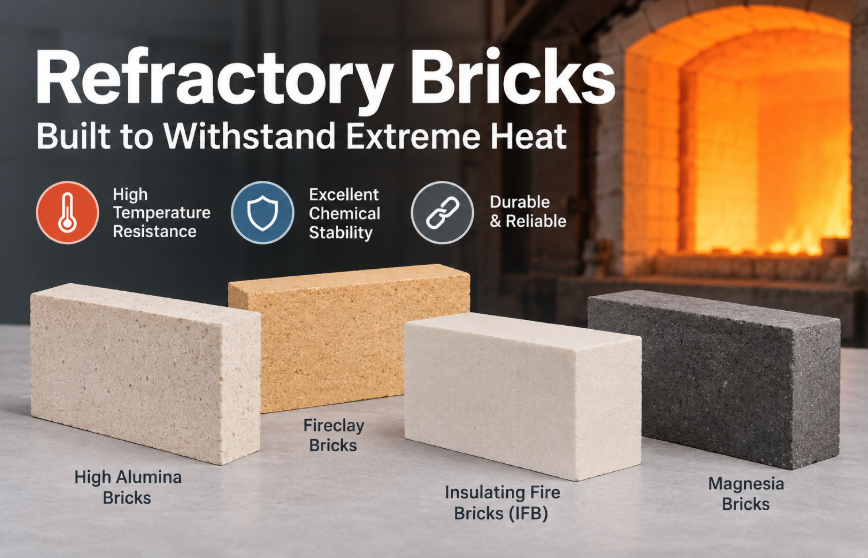

Dense shaped | High alumina refractory bricks | Hot face structural lining |
Basic shaped | Magnesia and spinel bricks | Chemical and slag resistance |
Insulating shaped | IFB | Thermal insulation |
Monolithic | Castable and ramming mixes | Joint reduced lining |
Fibrous | Blanket, board, module | Lightweight insulation |
Specialty ceramic | SiC and alumina ceramic | Wear and thermal performance |
The choice should therefore never be reduced to a simple comparison of temperature ratings. Chemistry, atmosphere, load, erosion, thermal cycling, installation geometry, and expected maintenance intervals all affect material selection.
Factor | Shaped Refractories | Unshaped Refractories |
|---|---|---|
Typical form | Brick or engineered shape | Dry or wet mixture |
Installation | Laid individually | Cast, rammed, sprayed or troweled |
Joints | Multiple joints | Fewer joints |
Geometry | Standard or customized shapes | Complex shapes possible |
Repair | Individual units replaceable | Localized repair possible |
Examples | Refractory bricks, IFB | Castables, mortar, ramming mix |
Specialty shaped products are particularly important in steel casting. Bottom pouring systems, for example, may use sleeve bricks, runner bricks, central bricks, funnels, tubes, tail bricks, well blocks, and stopper components. Product systems with alumina contents from roughly 42 to 80 percent are available for these applications.
Refractory ceramics are engineered ceramic materials intended to retain functional properties at elevated temperatures. They may use alumina, mullite, silicon carbide, zirconia, silicon nitride, or combinations of refractory phases.
Compared with conventional refractory bricks, advanced ceramic refractory materials can be designed around more specialized requirements such as abrasion resistance, dimensional precision, thermal conductivity, electrical properties, or resistance to severe chemical attack.
Material | Key Property | Typical Application |
|---|---|---|
Alumina | Hardness and thermal stability | Furnace components |
Mullite | Thermal shock stability | Kiln components |
Wear resistance | Kiln furniture | |
Silicon nitride bonded SiC | Strength and oxidation performance | High duty kiln systems |
Spinel | Chemical stability | Rotary kiln lining |
Silicon carbide is particularly useful where high temperature performance must be combined with wear resistance. Nitride bonded silicon carbide materials use SiC as a primary raw material and silicon nitride as a bonding phase, creating a specialized refractory ceramic structure.
Refractory insulation controls heat flow through an industrial lining. Dense refractory bricks protect the working surface, while insulating fire bricks, ceramic fiber blankets, modules, and boards can reduce heat transfer toward the furnace casing.
Insulating fire brick achieves this through controlled porosity. During production, graded organic fillers can be introduced and subsequently burned out, producing a uniform porous structure that lowers density and heat storage.
Product | Structure | Main Function |
|---|---|---|
Insulating fire brick | Porous rigid brick | Structural insulation |
Ceramic fiber blanket | Flexible fibrous layer | Backup and surface insulation |
Ceramic fiber board | Rigid fiber board | Flat thermal barrier |
Ceramic fiber module | Compressed fiber unit | Furnace wall and roof lining |
Dense refractory brick | Dense ceramic body | Hot face protection |
Commercial IFB products are available for temperature classes ranging approximately from 2300°F or 1260°C to 3000°F or 1650°C. Typical characteristics include low density, low heat storage, low iron content, thermal shock resistance, and high insulating performance.
Insulation Design Principle: A multilayer lining can combine dense hot face refractory bricks with lightweight backup insulation. The dense layer manages chemical and mechanical exposure while the insulation layer reduces heat flow toward the shell.
Furnace refractory material forms the thermal and chemical barrier between an industrial process and the equipment shell. Depending on the furnace, a lining may combine dense refractory bricks, insulating fire bricks, monolithic castables, ceramic fiber, mortars, and specialty ceramic components.
Selection begins with the actual operating zone. A furnace roof, burner area, hearth, sidewall, ladle safety lining, rotary kiln transition zone, and backup insulation layer can experience fundamentally different conditions.
Operating Condition | Important Property | Possible Material |
|---|---|---|
Severe mechanical wear | Abrasion resistance | Dense high alumina brick |
Basic slag | Chemical compatibility | Magnesia brick |
Rotary kiln transition | Thermal shock and chemical resistance | Magnesia spinel brick |
High heat loss | Low thermal conductivity | IFB or ceramic fiber |
Rapid cycling | Thermal shock resistance | Mullite or suitable high alumina refractory |
Complex geometry | Installation flexibility | Monolithic castable |
High alumina and fireclay refractory bricks are used across applications including blast furnaces, hot blast stoves, cement rotary kilns, glass furnaces, boilers, combustion chambers, and other industrial furnaces. Standard brick dimensions listed for some products include 230 × 114 × 64 mm and 230 × 114 × 76 mm, with special dimensions also possible.
Refractory coating materials are applied as protective surface layers rather than serving as the complete structural lining. Their purpose may include reducing penetration, protecting substrates, sealing surfaces, improving resistance to chemical attack, or controlling heat transfer.
The formulation depends strongly on substrate and operating environment. Alumina, silica, zircon, silicon carbide, and other refractory particles may be combined with inorganic binders to create coatings suited to specific thermal conditions.
Component | Function |
|---|---|
Refractory aggregate | Provides high temperature stability |
Fine ceramic powder | Controls surface and packing structure |
Binder | Holds particles together |
Additives | Adjust flow, adhesion or setting behavior |
Carrier | Controls application consistency |
Coating should be treated as part of a complete refractory system. Surface preparation, coating thickness, drying, curing, thermal expansion compatibility, and adhesion to the underlying refractory bricks or monolithic lining all influence performance.
Industrial refractories are required wherever equipment operates beyond the practical limits of conventional structural materials. Steel, cement, glass, ceramics, foundries, nonferrous metallurgy, boilers, and heat treatment systems therefore represent major application areas.
The material selected changes according to the process. Steel applications emphasize slag and metal resistance, cement kilns introduce abrasion and alkaline chemistry, while glass furnaces demand resistance to molten glass and prolonged high temperature exposure.
Iron and steel
Blast furnaces, hot blast stoves, electric arc furnaces, ladles, ingot casting systems and related equipment rely heavily on dense refractory bricks and monolithic refractories.
Cement
Rotary kilns expose linings to thermal cycling, abrasion, chemical attack, and mechanical loading. Magnesia alumina spinel brick is particularly relevant to transition zones.
Glass
Glass melting furnaces and regenerators require materials capable of resisting high temperatures and chemical attack. Magnesia based products can also be used in selected glass kiln environments.
Industrial furnaces
Heat treatment, forging, annealing, ceramic firing, boilers, combustion systems, and thermal processing equipment use combinations of dense and insulating refractories.
Industry | Equipment | Major Refractory Requirement |
|---|---|---|
Steel | EAF, ladle, blast furnace | Slag, wear and thermal resistance |
Cement | Rotary kiln | Abrasion and chemical stability |
Glass | Melting furnace | Corrosion and temperature resistance |
Foundry | Pouring systems | Molten metal compatibility |
Ceramics | Kiln | Thermal cycling |
Heat treatment | Furnace | Insulation and dimensional stability |
This explains why there is no universal best refractory. The technically appropriate refractory bricks are those whose chemistry and physical properties match the specific operating zone.
Refractory maintenance begins with understanding how the lining deteriorates. Common mechanisms include thermal cracking, spalling, abrasion, slag penetration, chemical corrosion, joint opening, mechanical impact, overheating, and improper drying or heat up.
Inspection should therefore record not only visible damage but also its location and pattern. Localized wear near burners may indicate different operating conditions from widespread chemical erosion or cracking after repeated thermal cycles.
Inspection Item | What to Check | Possible Concern |
|---|---|---|
Brick surface | Cracking and spalling | Thermal stress |
Joints | Opening and displacement | Expansion or installation issue |
Hot face | Erosion depth | Abrasion or corrosion |
Shell temperature | Abnormal hot spots | Insulation or lining loss |
Castable | Cracks and separation | Drying or anchoring issue |
Fiber lining | Shrinkage and gaps | Heat leakage |
Brick edges | Mechanical damage | Impact or movement |
Record shell temperatures and operating conditions.
Inspect refractory bricks, joints, castables, and insulation during scheduled shutdowns.
Measure lining thickness in high wear areas.
Identify whether damage is thermal, chemical, mechanical, or installation related.
Remove unstable refractory before repair.
Match repair material to the existing lining and service conditions.
Follow controlled curing, drying, and heat up procedures before full operation.
Maintenance Tip: Repeated replacement of the same damaged area usually indicates that the failure mechanism has not been addressed. Review temperature distribution, process chemistry, mechanical loading, expansion joints, material compatibility, installation quality, and heat up procedures before simply installing new material.
