Vented Cordierite-Mullite Saggers Keep Ceramic Kiln Loading Stable in High-Temperature Firing

Vented cordierite-mullite saggers maintain ceramic kiln loading stability during high-temperature firing by equalizing internal and external thermal pressures, eliminating localized heat traps, and accommodating rapid phase transformations without mechanical deformation or thermal shock failure.

As a senior ceramic refractory application expert, I have spent decades analyzing high-temperature kiln operations, firing dynamics, and material degradation pathways across modern industrial tunnel, shuttle, and roller kilns. In industrial thermal processing, particularly for high-density technical ceramics, sanitaryware, electronic components, and advanced powder metallurgy, the mechanical stability of kiln furniture under thermal load is a non-negotiable metric. Kiln operators frequently suffer from premature setter warpage, sagging batts, volatile trapping, and catastrophic sagger cracking during aggressive heating and cooling cycles. The introduction of vented cordierite-mullite refractory saggers directly resolves these mechanical and thermodynamic failure modes. By engineering micro-porous matrix structures combined with strategic ventilation passages, cordierite kiln furniture provides an optimized compromise between extremely low thermal expansion and high structural load-bearing capacity at elevated firing temperatures up to 1300 degrees Celsius.

Table of Contents

• Thermal Mechanics of Vented Cordierite-Mullite Saggers

• Aerodynamic Heat Transfer and Volatile Dissipation

• Structural Load Stability and Deformation Mitigation

• Material Selection and Microstructural Specifications

• Industrial Applications Across Ceramic and Metallurgy Sectors

• Best Practices for Kiln Furniture Maintenance and Lifespan Optimization

Thermal Mechanics of Vented Cordierite-Mullite Saggers

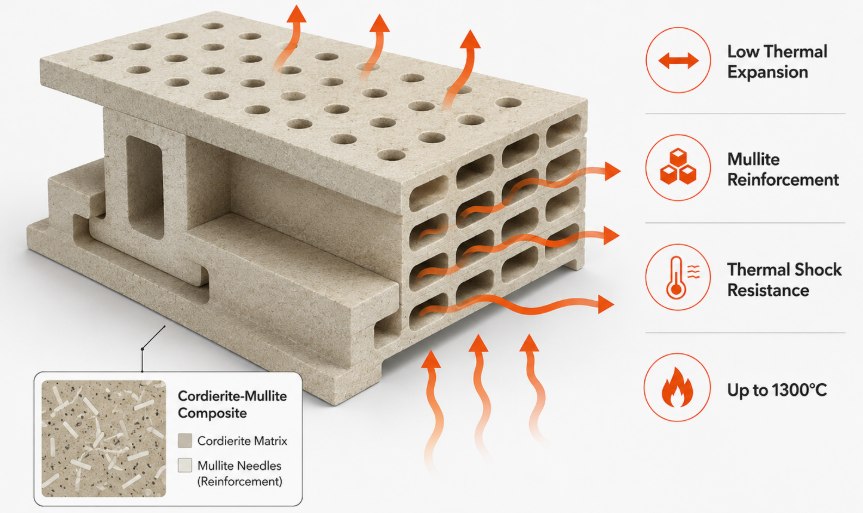

Vented cordierite-mullite saggers utilize a dual-phase composite matrix combining low-expansion cordierite with high-strength mullite to maintain structural integrity and dimensional stability throughout extreme thermal cycles.

The operational success of cordierite kiln furniture relies on chemical phase equilibrium achieved during high-temperature reaction sintering. Synthetic cordierite (2MgO 2Al2O3 5SiO2) exhibits an exceptionally low linear coefficient of thermal expansion, typically ranging between 1.5 x 10^-6 /K and 2.5 x 10^-6 /K in the 20 to 1000 degrees Celsius temperature interval. This ultra-low expansion capability prevents severe internal stress accumulation during rapid heating and forced cooling profiles. However, pure cordierite experiences rapid mechanical strength loss above 1200 degrees Celsius due to incongruent melting and viscous phase formation. To counteract high-temperature plastic deformation, refractory engineers synthesize a composite matrix containing interlocked mullite (3Al2O3 2SiO2) needle crystals. The high-melting-point mullite framework acts as a structural skeleton that absorbs shear loads and limits high-temperature grain boundary sliding.

In high-throughput industrial kilns, mechanical stability requires controlling thermal stress gradients across the body of the setter. Unvented traditional saggers act as thermal barriers, creating steep temperature differentials between the exposed outer wall and the shielded inner chamber. This temperature imbalance induces severe thermal tension across the sagger floor and side walls, initiating micro-cracks that propagate into catastrophic structural fracture over repeated thermal cycles. By integrating engineered ventilation ports and porous wall channels into cordierite kiln furniture perforated extruded batts, thermal energy penetrates directly into the interior cavity via simultaneous radiative and convective heat transfer mechanisms. This structural venting drastically reduces the internal-to-external thermal differential to less than 15 degrees Celsius during peak ramping rates, preventing thermal stress concentration.

Furthermore, the synthetic mineralogy of cordierite kiln furniture is engineered to tolerate phase transition strain during continuous operation. The porous matrix contains carefully controlled micro-voids that arrest micro-crack growth through crack-tip blunting and stress redirection. When thermal shock generates localized micro-fractures, these voids dissipate kinetic strain energy, preventing macro-crack propagation. Consequently, vented saggers maintain flat, stable loading surfaces across hundreds of firing runs, eliminating product distortion caused by uneven setting surfaces in large-scale tunnel kilns.

Aerodynamic Heat Transfer and Volatile Dissipation

Ventilation geometry in cordierite saggers accelerates convective heat flux into the internal cavity while providing escape channels for volatile binder decomposition gases during organic burn-off phases.

During the early stages of industrial ceramic firing (between 200 and 600 degrees Celsius), green ceramic components release significant volumes of organic binders, plasticizers, moisture, and chemical additives. In traditional enclosed saggers, these evolving gases become trapped, building localized chemical partial pressures and creating reducing micro-environments inside the container. Trapped organic vapors lead to localized firing defects such as black coring, pinholing, surface discoloration, and incomplete binder removal. Vented cordierite kiln furniture features strategic side-wall slots, perforated bases, and corner flow ports that establish positive draft pathways. These openings allow buoyant hot gases to circulate through the load, sweeping away binder decomposition products before they can re-deposit onto ceramic surfaces or degrade the sagger lining.

From an aerodynamic perspective, heat transfer inside high-temperature kilns converts from predominantly convective to predominantly radiative above 800 degrees Celsius. However, within dense kiln car loading configurations, radiative heat rays struggle to penetrate deep into interior sagger stacks. Vented saggers solve this thermal shadowing problem by allowing high-velocity combustion gases or recirculated hot air to pass directly through the load stack. The convective gas velocity through the vent openings enhances the convective heat transfer coefficient, dramatically reducing thermal lag. Ceramic ware located at the center of a vented sagger reaches soaking temperature concurrently with ware positioned on the outer perimeter, resulting in uniform microstructural grain growth and precise dimensional shrinkage across the entire batch.

In addition to gas evacuation and heat distribution, venting reduces total thermal mass. By removing non-structural refractory material from sagger walls and floors, the weight of the cordierite kiln furniture assembly is reduced by 15% to 30%. Lower refractory weight directly translates into lower energy consumption, as less energy is consumed heating dead refractory weight. Kiln operators achieve faster heating and cooling rates, shorter overall cycle times, and substantial natural gas or electrical energy savings per ton of finished ceramic product.

Structural Load Stability and Deformation Mitigation

Engineering structural load distribution through optimized cordierite-mullite geometry mitigates sagging, bending, and creep deformation in multi-tier kiln car stacking configurations.

Kiln furniture deployed in high-capacity tunnel kilns is subjected to combined mechanical and thermal stress loads. Multi-tier car stacking systems place immense compressive loads on lower sagger levels, where bottom units must support several hundred kilograms of overlying refractory weight and green ware at temperatures exceeding 1250 degrees Celsius. Under these conditions, refractories experience creep deformation—a time-dependent plastic strain caused by stress at elevated temperatures. High-performance cordierite kiln furniture addresses creep deformation by controlling the crystalline mullite-to-cordierite ratio and minimizing the alkali liquid phase concentration within the glass grain boundaries.

The mechanical stability of vented saggers is further reinforced through structural ribbing and optimized wall geometry around ventilation slots. Advanced finite element analysis is utilized to position vent ports along low-stress mechanical vectors, avoiding high-stress concentration points at structural corners and base-to-wall junctions. By maintaining high section modulus along load-bearing columns while removing non-critical material, vented saggers achieve compressive creep rates below 0.05% after 50 hours at 1250 degrees Celsius under a 0.2 MPa load. This structural rigidity prevents sag-induced tipping of tall sagger columns, eliminating expensive kiln wrecks and product loss.

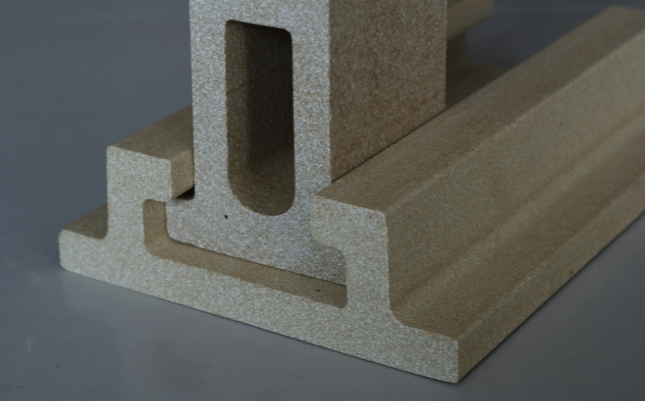

To maximize kiln car packing density without compromising load stability, ceramic producers combine hollow-core support pillars with high-strength cordierite mullite setters for sanitaryware. The high planarity and precise manufacturing tolerances of these extruded and pressed refractory components ensure uniform weight transfer down through the load stack. Flat, deformation-free support plates eliminate point-loading stresses on sagger rims, ensuring that structural loads remain purely compressive rather than flexural.

Creep Prevention and Load Stacking Engineering: To maximize structural lifespan and prevent premature sagging under heavy loads, kiln operators must ensure that vertical support posts and sagger walls align precisely across all vertical tiers. Misalignment introduces eccentric bending moments that accelerate high-temperature creep deformation. Furthermore, applying a thin alumina-spinel batt wash layer to sagger load surfaces prevents chemical bonding between green ware and refractory substrates at high temperatures.

Material Selection and Microstructural Specifications

Selecting high-purity synthetic raw materials and controlling grain size distribution enables precision tuning of cordierite-mullite microstructures for optimal thermal shock resistance and chemical inertness.

The performance of cordierite kiln furniture is defined at the raw material synthesis stage. Naturally occurring clay minerals contain impurities such as iron oxide (Fe2O3), titania (TiO2), and alkali oxides (Na2O, K2O) that promote low-temperature liquid phase formation, lowering the softening temperature of the refractory matrix. To build high-grade cordierite kiln furniture, manufacturers utilize high-purity synthetic calcined alumina, fused magnesia, fine quartz, and high-purity kaolin clays. Synthetic raw material formulations ensure consistent chemical stoichiometry, yielding high percentages of crystalline cordierite and mullite while keeping the glass phase below 5% of total volume.

Microstructural optimization involves balancing coarse grog particles with a fine reactive matrix. Coarse calcined cordierite grog (1 to 3 mm grain size) forms a rigid, thermal-expansion-stable skeleton that provides mechanical resistance to macro-crack propagation. The surrounding matrix consists of sub-micron reactive alumina and silica that sinter to form interlocking mullite needles during firing. This bimodal grain distribution controls total open porosity within an optimal range of 18% to 24%. Porosity levels below 15% impair thermal shock resistance by restricting strain relief mechanisms, whereas porosity above 25% reduces mechanical crushing strength and accelerates oxidation-corrosion attack from aggressive vapor species.

Chemical stability against aggressive atmospheres is another critical specification. In applications involving fluxed glazes, alkali-rich vapors, or lithium compounds, low-grade refractories undergo alkali attack, forming low-melting leucite or nepheline phases that cause structural swelling, surface spalling, and load destruction. The low silica-activity matrix of high-density cordierite kiln furniture resists chemical vapor penetration, maintaining structural stability throughout extended exposure to aggressive industrial kiln atmospheres.

Industrial Applications Across Ceramic and Metallurgy Sectors

Vented cordierite-mullite saggers provide versatile thermal containment solutions across diverse high-temperature processing sectors, including sanitaryware, technical ceramics, and powder metallurgy.

In the high-volume sanitaryware manufacturing industry, complex vitreous china pieces such as water closets, pedestals, and large washbasins require strict dimensional tolerances and defect-free glazed surfaces. Firing these large components inside tunnel kilns requires durable refractory supports capable of carrying heavy loads without sagging. Utilizing cordierite kiln furniture for sanitaryware kiln car systems provides a lightweight, thermal-shock-resistant framework. Perforated batts and vented saggers allow fast, even radiant heat transfer to thick clay bases, preventing thermal-gradient cracking during fast-firing schedules (10 to 14 hours cold-to-cold cycle times).

In the technical and electronic ceramics sector, components such as soft ferrites, piezoelectric ceramic transducers, alumina substrates, and multi-layer ceramic capacitors (MLCCs) demand ultra-clean firing environments. Vented cordierite-mullite saggers act as protective thermal enclosures, shielding delicate components from direct flame impingement and combustion debris while ensuring rapid gas evacuation. The vented walls prevent localized atmosphere stagnation, ensuring uniform oxygen partial pressure across the interior load—a critical parameter for stabilizing manganese-zinc ferrite electromagnetic properties and titanate dielectric constants.

In modern powder metallurgy and energy storage materials manufacturing, high-purity saggers are required for calcining lithium-ion battery cathode powders (such as LFP, NCM, and NCA materials). During high-temperature calcination, lithium compounds volatilize and attack surrounding refractories. Vented cordierite-mullite containers engineered with specialized corrosion-resistant surface glazes or high-mullite matrix formulations resist lithium attack while allowing reaction gases (such as CO2 and H2O) to escape efficiently. This optimization prevents powder bed contamination, improves stoichiometric consistency, and extends sagger replacement intervals in continuous roller hearth kilns.

Best Practices for Kiln Furniture Maintenance and Lifespan Optimization

Implementing systematic mechanical handling, precise atmosphere control, and protective coating protocols maximizes the operational service life of cordierite kiln furniture.

To maximize the operational return of cordierite kiln furniture, plant managers must establish strict handling and maintenance protocols. Although cordierite-mullite possesses high thermal shock resistance, severe mechanical impact during manual or automated loading can induce micro-fractures along sagger corner joints. Automated robocar setting systems should be calibrated with soft-touch gripping actuators and acceleration-limited movements to avoid mechanical shock. Sagger support surfaces must be regularly inspected for accumulated glaze drips or volatile condensates, which should be removed via gentle mechanical grinding rather than heavy impact hammering.

Thermal profile management is equally critical for preventing premature mechanical breakdown. Kiln ramps should be programmed to avoid rapid heating spikes through critical phase transition zones. Although cordierite exhibits smooth thermal expansion curves, rapid cooling below 600 degrees Celsius can generate severe tensile stress along outer sagger walls if cooling air jets impinge directly onto hot refractory surfaces. Directing cooling airflow through designed kiln circulation channels rather than concentrated nozzles ensures uniform heat removal across vented sagger arrays.

Finally, protective surface coatings extend the chemical resistance of saggers. Applying a thin coating of high-purity alumina or zircon-based wash onto sagger floors creates an inert sacrificial barrier. This barrier prevents reactive glaze droplets, slag, or volatile metallic species from penetrating open surface pores, ensuring easy parting of fired ware and preserving the structural integrity of the cordierite kiln furniture matrix over hundreds of operational firing cycles.
