Selecting the correct kiln furniture material for LTCC sintering directly dictates thermal stability, dimensional tolerances, and prevention of chemical contamination during co-firing. Utilizing high-performance cordierite kiln furniture and engineered composite batts optimizes thermal shock resistance, prevents chemical reaction with low-temperature co-fired ceramic tapes, and ensures consistent physical flatness across high-volume production cycles.
Kiln Furniture for LTCC Sintering
Cordierite's Role in LTCC Sintering
Mullite's Application in LTCC Sintering
Kiln Furniture for LTCC Sintering
High-Purity Alumina for High-Temperature LTCC Sintering
Kiln furniture for LTCC sintering serves as the critical structural carrier and thermal distributor that supports green ceramic tapes and multi-layer packages through precise binder burnout and densification profiles without inducing mechanical deformation or chemical contamination.
During the sintering of Low-Temperature Co-fired Ceramics, green tapes composed of glass-ceramic composites and conductive metallic traces (such as silver or gold) undergo significant physical shrinkage and organic decomposition. The thermal profile typical for LTCC processing demands a slow binder burnout phase between 300C and 500C, followed by rapid densification at temperatures ranging between 850C and 900C.
In this thermal environment, the selection of the underlying support material—specifically cordierite kiln furniture batts and setters—plays a decisive role in maintaining planar flatness across the entire multi-layer assembly.
From an industrial engineering perspective, the ideal carrier material must possess an exceptionally low coefficient of thermal expansion to withstand repetitive, high-speed thermal cycling without sagging, spalling, or cracking. Because LTCC substrates require planar tolerances measured in micrometers, any microscopic deviation or thermal gradient across the setter plate translates directly into localized stress points within the firing stack.
Furthermore, as organic binders volatilize during early heating stages, gas exchange around the ceramic component must remain uniform. High-density, unperforated refractory structures can trap outgassing products, creating micro-bubbles and localized carbon residue that degrade the dielectric properties of the final component.
European and international microelectronics manufacturers prioritizing high production throughput continuously seek setter configurations that maximize kiln loading efficiency while minimizing thermal mass. Lower thermal mass setter plates allow for shorter furnace residence times and reduced energy consumption per unit fired.
By utilizing precision-engineered cordierite kiln furniture systems, operators achieve superior thermal conductivity and rapid temperature stabilization across the entire hearth, ensuring every LTCC module across the setter surface experiences identical thermal kinetic conditions.
Refractory Property | LTCC Process Requirement | Impact on Final Component |
Thermal Expansion (20-1000C) | Lower than 0.0000025 / K | Prevents thermal shock and setter warpage during rapid cooling cycles |
Planar Flatness Tolerance | Under 0.05 mm per 100 mm span | Ensures precise dimensional registration for multi-layer LTCC substrates |
Bulk Density | 1.9 to 2.2 g/cm3 | Reduces thermal mass, optimizing furnace thermal efficiency and energy consumption |
Flexural Strength (MOR) | Greater than 25 MPa at ambient | Maintains structural integrity under repeated mechanical loading and automated handling |
Thermal Mass Management and Setter Maintenance: To maximize the operational life of cordierite kiln furniture in continuous tunnel kilns, furnace operators must maintain strict control over ramp rates during binder removal. Setting ramp rates above recommended thresholds induces steep thermal gradients between the outer edge and center of the setter plate. Periodically inspect setter plates for microscopic surface micro-cracking, and apply a high-purity alumina ceramic coating to eliminate any direct contact reactivity between residual glass phases and the refractory substrate.
Cordierite's role in LTCC sintering centers on its extraordinarily low coefficient of thermal expansion, superior thermal shock resistance, and phase stability, which together eliminate setter warpage and prevent catastrophic structural failure during repeated heating and cooling cycles.
Cordierite (2MgO 2Al2O3 5SiO2) is a magnesium aluminum silicate mineral phase known for its anisotropic low thermal expansion characteristics. In industrial LTCC production environments, thermal cycling occurs rapidly in roller hearth or batch kilns.
When conventional refractory ceramics are subjected to these steep thermal ramps, internal tensile stresses quickly exceed the material's modulus of rupture, leading to micro-fissures and structural collapse. Integrating high-purity cordierite kiln furniture mitigates these stresses completely, allowing furnace operators to aggressive thermal ramp schedules without compromising setter integrity.
In real-world manufacturing operations, client evaluations consistently focus on dimensional stability over hundreds of firing cycles. Why is cordierite designed into these high-precision systems? The underlying reason lies in its crystal lattice structure, which expands at a rate under 0.0000020 / K in the temperature range where glass-ceramic LTCC tapes soften and consolidate.
When cordierite kiln furniture remains dimensionally stable across the 800C to 900C operating window, the green ceramic tapes placed upon it can shrink laterally and densify vertically without experiencing non-uniform frictional drag or localized binding.
European technical ceramic facilities frequently specify cordierite setters featuring low-friction, micro-textured surface finishes. This specific configuration is particularly popular because it allows the LTCC tape's organic binder matrix to volatilize cleanly while facilitating smooth, isotropic x-y shrinkage during glass crystallization.
As a result, components fired on cordierite kiln furniture exhibit minimal bow and twist, directly improving post-sintering surface-mount technology (SMT) assembly yields and solder pad alignment accuracy.
Chemical Component / Feature | Nominal Weight Percentage / Parameter | Primary Engineering Function |
Alumina (Al2O3) | 34.0% to 38.0% | Enhances mechanical strength and refractory temperature resistance |
Silica (SiO2) | 48.0% to 52.0% | Forms the stable silicate network required for low thermal expansion |
Magnesia (MgO) | 11.0% to 14.0% | Promotes cordierite phase formation during high-temperature reaction sintering |
Apparent Porosity | 18.0% to 24.0% | Provides thermal strain tolerance and gas permeability during binder burnout |
Working Principle of Low Thermal Expansion in Setter Systems: The exceptional performance of cordierite kiln furniture relies on the negative axis thermal expansion along the crystallographic c-axis, which offsets positive expansion along the a- and b-axes. This microscopic balance minimizes macroscopic volume changes during rapid heating, effectively neutralizing internal mechanical strain and dramatically extending setter service lifetime.
Mullite's application in LTCC sintering provides the high-temperature mechanical creep resistance, load-bearing capability, and structural rigidity needed to support heavy refractory stacks without sagging or distorting over extended firing durations.
While pure cordierite excels in thermal shock resistance, its mechanical load-bearing capacity decreases at elevated temperatures or under prolonged thermal exposure. To address this limitation in heavy industrial kiln loading, refractory materials engineering combines mullite (3Al2O3 2SiO2) with cordierite to create a composite matrix.
Mullite provides outstanding high-temperature mechanical creep resistance, high flexural strength, and chemical inertness, making composite setters ideal for multi-tier LTCC firing frames and heavy-duty structural posts.
In high-volume LTCC manufacturing lines, multi-layer ceramic modules are fired in stacked tray arrangements to maximize furnace volume utilization. In these configurations, the bottom setters bear substantial mechanical weight at peak firing temperatures.
Under these conditions, pure cordierite may suffer subtle structural creep over time, leading to gradual bowing of the support plates. Incorporating a needle-like interlocking mullite crystal network into high-strength cordierite-mullite kiln furniture elements ensures that the structural framework maintains rigid geometry under high mechanical loads.
In actual operations, European microelectronics clients closely evaluate the ratio of mullite to cordierite within composite setters. Industrial experience shows that a tailored composite containing 40% to 60% mullite offers the optimal balance.
It achieves the high flexural rigidity required for thin, large-format setter plates while retaining sufficient thermal shock resistance for rapid kiln turnarounds. This composite architecture prevents long-term sag, ensuring that top-tier microelectronic substrates maintain stringent dimensional tolerances year after year.
Constituent Phase | Microstructural Characteristic | Operational Advantage in LTCC Sintering |
Interlocking Mullite Needles | Acicular crystal network | Prevents high-temperature plastic deformation and mechanical creep |
Cordierite Matrix Phase | Low-expansion silicate domains | Absorbs thermal shock during rapid heating and cooling cycles |
Residual Glass Phase | Controlled boundary layer (under 2%) | Ensures high hot-flexural strength without micro-structural glass bleeding |
Pore Size Distribution | Sub-micron interconnected pores | Prevents capillary absorption of outgassed binder vapor species |
Preventive Setter Inspection Tip: Regularly measure the center-point deflection of cordierite-mullite composite setters using a digital dial gauge mounted on a precision granite surface plate. Any plate exhibiting cumulative creep deformation exceeding 0.2 mm over a 200 mm span should be removed from primary LTCC substrate firing lines to avoid inducing planarity defects in finished electronic substrates.
Advanced kiln furniture for LTCC sintering integrates perforated geometry, optimized airflow channels, and precision surface flatness to facilitate uniform thermal distribution, complete binder burnout, and defect-free densification of multi-layer green tapes.
The physical geometry and engineered design of kiln furniture setters are just as critical as their chemical composition. In standard LTCC green tape processing, organic binders, plasticizers, and solvents make up to 15% to 20% of the initial green tape volume.
During the organic burnout phase, these compounds must be thoroughly oxidized and removed from the firing chamber. Standard solid setter plates restrict airflow beneath the bottom layer of ceramic tapes, leading to incomplete carbon burnout, localized reduction of metalization, and uneven shrinkage rates across the substrate.

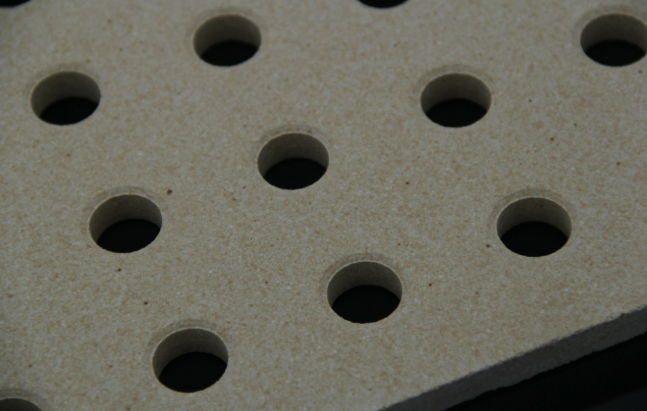

To resolve this challenge, modern advanced technical ceramic setters utilize engineered perforation patterns, slotted designs, and extruded honeycomb architectures. Utilizing perforated extruded cordierite kiln furniture batts allows process gases to flow freely across both top and bottom surfaces of the ceramic module.
This balanced gas circulation ensures complete binder removal across the entire surface area, preventing localized carbon entrapping that can severely degrade the high-frequency dielectric performance of LTCC circuits.
When selecting carrier configurations, industrial clients prioritize setter flatness, lightweight structural design, and gas permeability. Why are engineered perforated designs so widely adopted across advanced European production facilities?
Because reducing the setter mass by 30% through engineered perforations significantly lowers the overall thermal inertia of the kiln car system. This thermal optimization enables faster heating and cooling rates while maintaining complete thermal uniformity across every single microelectronic substrate on the hearth.

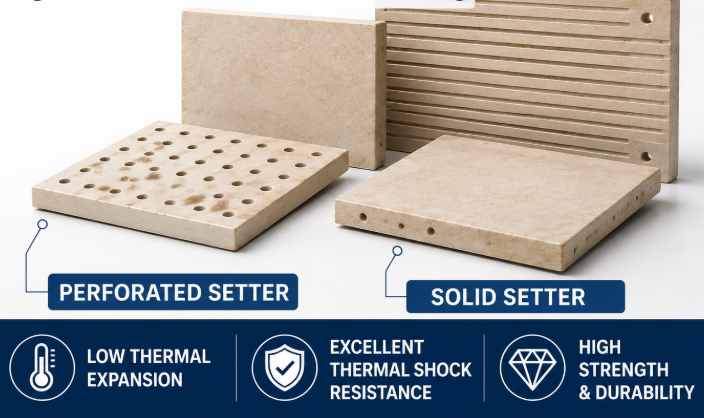

Structural Design Variant | Primary Mechanical Feature | Target Application in LTCC Manufacturing |
Perforated Flat Setters | Uniformly spaced vertical flow holes | Standard multi-layer LTCC substrates requiring uniform top-to-bottom outgassing |
Extruded Hollow-Core Batts | Internal longitudinal air channels | Heavy structural firing hearths needing maximum bending resistance at minimum weight |
Slotted Ribbed Trays | Raised linear contact ridges | Ultra-thin LTCC ceramic tapes minimizing surface contact area to eliminate drag |
Precision Machined Plates | Lapped surface under 10 micrometers roughness | High-density microwave substrates demanding ultra-flat seating surfaces |
Kiln Atmosphere Optimization Guidelines: Ensure that clean, dry air or oxygen-enriched gas flows unimpeded through the setter perforations during the 300C to 500C temperature window. Maintaining clean airflow through the setter channels prevents volatile binder condensation, protecting both the setters and the firing chamber from carbonaceous buildup.
High-purity alumina for high-temperature LTCC sintering provides maximum chemical inertness, high mechanical strength, and zero trace element migration, ensuring uncompromised dielectric performance during elevated temperature co-firing regimes.
While standard LTCC formulations sinter at temperatures below 900C using specialized glass-ceramic systems, high-temperature co-fired ceramics (HTCC) and specialized high-density LTCC formulations require sintering temperatures ranging from 1000C to 1600C.
In these elevated temperature regimes, standard silicates can experience glass phase softening, potentially causing trace elements to migrate into the electronic substrate. High-purity alumina refractory components (containing over 99% Al2O3) provide the chemical inertness and structural stability required to withstand these demanding firing conditions.
At temperatures exceeding 1000C, chemical contact reactions between the ceramic setter and the electronic substrate become a primary failure mode. Glass phases in lower-purity setters can react with the oxides in the LTCC formulation, causing adhesion, discoloration, or altered electrical properties.
High-purity alumina setters act as an inert barrier, eliminating element migration and preserving the exact stoichiometric composition of the dielectric layers and co-fired metallic traces.
From an industrial application standpoint, high-purity alumina is particularly favored by European aerospace and telecommunications manufacturers producing high-reliability RF and microwave components. These high-end applications demand consistent dielectric constants and minimal dissipation factors.
Utilizing high-purity alumina setters ensures zero chemical contamination during extended high-temperature hold times, delivering predictable RF performance and long-term operating reliability across all manufactured substrate batches.
Property Parameter | Alumina Setter Value (99.5% Al2O3) | Operational Value in High-Temp LTCC/HTCC |
Max Continuous Operating Temp | 1700C | Allows safe operation across high-temperature co-firing thermal cycles |
Chemical Inertness | Zero reactive glass phase | Prevents substrate bonding and chemical contamination of metalization |
Flexural Strength (Hot MOR) | Greater than 300 MPa at 1000C | Prevents mechanical deformation under heavy stack loads |
Thermal Conductivity | 25 to 30 W/(m K) | Ensures rapid heat transfer across high-temperature firing zones |
Handling and Storage Best Practices for Alumina Setters: High-purity alumina setters are susceptible to thermal shock if exposed to abrupt cold air currents upon furnace discharge above 600C. Always store alumina setters in dry, temperature-controlled environments, and utilize automated furnace discharge enclosures to control cooling rates and prevent thermal shock fracturing.
In conclusion, the selection of refractory materials for kiln furniture is a foundational engineering decision that directly governs product yield, dimensional accuracy, and operational efficiency in LTCC substrate manufacturing. As we have explored in this technical analysis, matching the specific physical and chemical requirements of your thermal process with the appropriate setter material—whether utilizing low-expansion cordierite kiln furniture, high-strength cordierite-mullite composites, or chemically inert high-purity alumina—eliminates process defects such as substrate bowing, non-uniform shrinkage, and chemical contamination. By investing in optimized setter geometries, engineered perforation patterns, and high-purity refractory formulations, microelectronics manufacturers can achieve repeatable thermal processing, maximize kiln car loading efficiency, and ensure long-term cost efficiency across high-volume production cycles.
