Fiberglass vs. Ceramic Fiber Insulation: A Comparative Analysis

In industrial thermal management, choosing between fiberglass and ceramic fiber insulation depends primarily on the continuous operating temperature requirements: fiberglass insulation offers an efficient and economical thermal barrier for standard commercial and industrial applications operating below 540 degrees Celsius, whereas ceramic fiber insulation provides exceptional refractory resistance, chemical stability, and structural integrity for ultra-high-temperature processing environments exceeding 1000 degrees Celsius up to 1430 degrees Celsius.

Table of Contents

• What Is Fiberglass Insulation?

  • What Is Fiberglass Insulation Used For?

  • Limitations of Fiberglass Insulation

• What Is Ceramic Fiber Insulation?

  • What Is Ceramic Fiber Insulation Used For?

  • When to Choose Ceramic Fiber Insulation

• Comparing Fiberglass vs. Ceramic Fiber Insulation

What Is Fiberglass Insulation?

Fiberglass insulation is an engineered thermal and acoustic insulation material manufactured from extremely fine strands of inorganic glass fibers bound together with thermosetting resin binders into blankets, batts, rolls, or loose-fill forms, primarily designed for operational temperatures below 540 degrees Celsius.

The manufacturing process of fiberglass insulation involves melting silica sand, limestone, soda ash, and recycled glass cullet in specialized electric or gas-fired furnaces at temperatures reaching approximately 1500 degrees Celsius. The molten liquid glass is subsequently fed into high-speed fiberizing spinners, where centrifugal force extrudes the liquid through micro-perforations to form long, flexible glass filaments. During the spinning phase, liquid thermosetting binders or bio-based binders are sprayed onto the fine filaments to ensure structural cohesion. These coated glass filaments are collected on a conveyor belt to form a continuous fiber mat, which subsequently passes through a curing oven to solidify the binder network and achieve the desired density and mechanical resilience.

From a fundamental thermodynamic perspective, fiberglass insulation functions by trapping microscopic pockets of motionless air within its highly porous, interconnected fibrous matrix. Because still air possesses extremely low thermal conductivity, the entrained gas medium minimizes conductive heat transfer across the insulation cross-section. Concurrently, the fine diameter of the randomized glass fibers scatters infrared radiation, reducing radiant energy transfer. Lightweight fiberglass insulation products typically exhibit densities ranging from 10 to 48 kilograms per cubic meter, making them structural options for building envelopes, mechanical ductwork, and low-temperature process equipment where weight minimization is essential.

In modern industrial engineering, the physical architecture of fiberglass insulation is optimized to balance thermal resistance with cost effectiveness. The structural integrity of fiberglass insulation remains stable across standard indoor and outdoor ambient temperature ranges. However, as operating temperatures rise toward its upper thermal threshold, the organic binder agents begin to undergo thermal oxidation and pyrolysis, which can lead to a gradual reduction in mechanical binder cohesion. Engineering design specifications must therefore rigorously match fiberglass insulation properties with actual thermal operating parameters to prevent premature degradation of the fiber structure.

What Is Fiberglass Insulation Used For?

Fiberglass insulation is extensively utilized across commercial building systems, residential thermal envelopes, industrial low-pressure steam piping, HVAC air distribution systems, and OEM appliance insulation, providing cost-effective thermal control and acoustic attenuation.

1. Architectural Building Envelopes and Acoustic Wall Cavities: In structural engineering, fiberglass insulation forms the primary thermal defense in exterior curtain walls, studded interior partitions, roof assemblies, and dropped ceilings. The light mass and high loft of fiberglass batts permit easy installation between standard steel studs or wood joists, drastically dampening airborne noise transmission between adjacent interior spaces while minimizing heat gain or loss through walls.

2. Commercial HVAC Duct Systems and Air Distribution: Industrial and commercial air conditioning and heating systems rely on flexible fiberglass duct liner boards and wrap-around blanket products. Wrapped around spiral metal ducts or installed inside mechanical air plenums, fiberglass insulation prevents condensation formation on exterior duct surfaces while maintaining consistent conditioned air temperatures across long distribution runs.

3. Low-to-Medium Temperature Process Piping and Vessels: In industrial processing facilities, preformed rigid fiberglass pipe insulation sections are applied to hot water lines, low-pressure steam lines, process fluid conduits, and storage vessels. These systems maintain thermal energy efficiency, prevent condensation dripping, and protect maintenance personnel against burn injuries from hot metal surfaces.

4. Original Equipment Manufacturer (OEM) Thermal Barrier Modules: Manufacturers of domestic appliances, commercial ovens, refrigeration units, acoustic enclosures, and automotive heat shields integrate molded or die-cut fiberglass insulation panels into their product housings to optimize thermodynamic energy efficiency during operation.

Limitations of Fiberglass Insulation

The primary limitations of fiberglass insulation encompass a relatively low continuous operating temperature threshold, severe thermal breakdown of organic binders under high heat, vulnerability to water saturation causing physical collapse, and mechanical compaction under structural loading.

1. Low Maximum Operating Temperature Limits: Standard fiberglass insulation products cannot withstand continuous exposures above 540 degrees Celsius. At elevated industrial temperatures, the glass fibers begin to soften, undergo devitrification, and melt into a glassy slag, resulting in a total loss of thermal resistance and structural failure.

2. Organic Binder Burn-off and Smoke Generation: The thermosetting phenolic or acrylic binders used to bind fiberglass fibers together begin to decompose at temperatures between 200 degrees Celsius and 300 degrees Celsius. This chemical breakdown releases gaseous volatile organic compounds, smoke, and odors, while simultaneously causing the fiberglass batt to lose its compressive resilience and structural form.

3. Moisture Saturation and Thermal Degradation: Fiberglass fibers are non-hygroscopic; however, the highly porous open-cell fiber network readily absorbs and retains liquid water via capillary action if water vapor barriers are compromised. Water accumulation inside fiberglass insulation elevates thermal conductivity toward that of pure water, completely nullifying the insulating performance and promoting severe Corrosion Under Insulation (CUI) on metallic pipes and substrates.

Installation Safety and Fiber Dust Control Guidelines: During the handling and cutting of fiberglass insulation products, mechanical agitation releases airborne glass microfibers that can cause transient physical irritation to skin, eyes, and upper respiratory passages. Operators should enforce the mandatory use of personal protective equipment including NIOSH-approved dust respirators, safety goggles, and full-coverage protective coveralls. Furthermore, installing specialized dust extraction systems at processing stations drastically reduces ambient fiber concentration during high-volume industrial cutting operations.

What Is Ceramic Fiber Insulation?

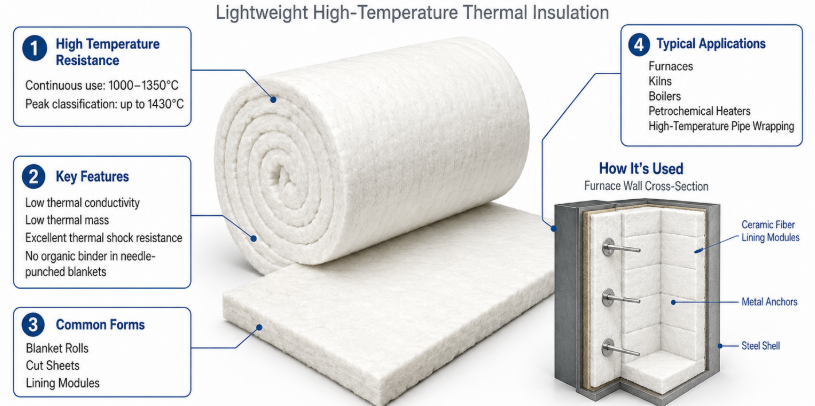

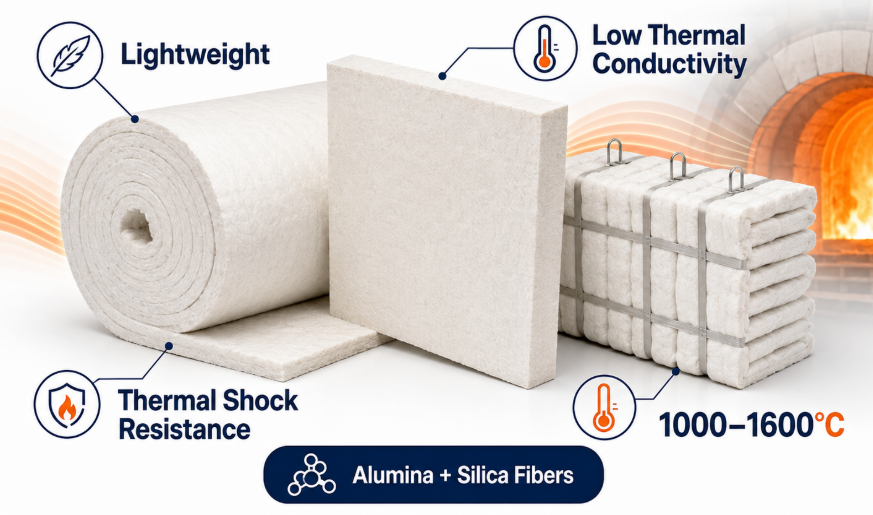

Ceramic fiber insulation is an advanced refractory material engineered from high-purity alumino-silicate, alumina, or zirconia fibers capable of continuous performance in extreme high-temperature environments ranging from 1000 degrees Celsius up to 1430 degrees Celsius while maintaining exceptional thermal shock resistance and low thermal mass.

The technical manufacturing process of ceramic fiber insulation requires melting high-purity alumina (Al2O3) and silica (SiO2) powders, often combined with zirconia (ZrO2) additives, in high-voltage electric arc furnaces at temperatures exceeding 2000 degrees Celsius. The molten mineral stream is subsequently subjected to high-pressure compressed air blowing or multi-wheel spinning technology. This mechanical process converts the liquid stream into long, flexible, interconnected inorganic ceramic fibers. To produce needle-punched blankets, these fibers are mechanically cross-locked through dual-side needling processes without adding organic binders, yielding high tensile strength ceramic fiber insulation products with superior structural stability during high-temperature thermal cycling.

In thermal engineering applications, high-purity ceramic fiber insulation exhibits an exceptionally low heat storage capacity and remarkably low thermal conductivity across elevated temperature spectrums. Unlike dense refractory firebricks or castable concrete linings, ceramic fiber insulation responds almost instantaneously to temperature variations within industrial furnaces. This rapid response eliminates long heating and cooling cycles, resulting in substantial energy savings for batch-type thermal processing operations. Furthermore, the complete absence of organic binders in needle-punched ceramic fiber insulation ensures that no outgassing, smoke generation, or thermal binder degradation occurs even during direct flame contact.

Modern high-temperature processing units increasingly utilize specialized pre-formed engineered components, such as high-density Refractory Ceramic Fiber Modules Thermal Insulation assemblies. These modular units are fabricated by pre-compressing ceramic fiber blankets into dense folded blocks fitted with internal stainless steel or alloy anchors. Installing compressed modules onto steel furnace shells minimizes heat loss through installation joints while dramatically accelerating furnace lining construction speed in large-scale industrial projects.

What Is Ceramic Fiber Insulation Used For?

Ceramic fiber insulation is critical across heavy manufacturing, metallurgical refining, petrochemical processing, power generation, and glass production industries for furnace linings, boiler insulation, expansion joint seals, and high-temperature pipe wrapping.

1. Industrial Furnace and Kiln Refractory Linings: In steel manufacturing, aluminum smelting, ceramic firing, and heat-treating operations, ceramic fiber insulation blankets and modules are installed directly as primary hot-face refractory linings or backup insulation behind heavy firebrick structures. Their minimal thermal mass allows industrial furnaces to heat up and cool down rapidly, optimizing cycle efficiency and reducing total fuel consumption.

2. Petrochemical Reformer and Ethylene Cracking Heater Insulation: In chemical and oil refining processes, high-temperature process heaters operate continuously under severe thermal stress. Utilizing ceramic fiber insulation in heater walls, roof arches, and burner blocks prevents structural steel warping and maintains uniform internal temperature distributions essential for precise chemical reaction kinetics.

3. High-Temperature Expansion Joints, Gaskets, and Seals: Thermal expansion in high-temperature industrial piping, power plant boilers, and exhaust ductwork requires flexible sealing materials that maintain structural resilience under severe heat. Needle-punched ceramic fiber insulation blankets and braided ropes serve as fireproof expansion joint packings, door seals, and flange gaskets capable of absorbing continuous vibration and thermal movement.

4. Ladle Covers, Metal Transfer Troughs, and Tundish Insulation: In non-ferrous foundry operations and molten metal casting, flexible soluble ceramic fiber insulation blankets are applied directly around metal transfer troughs, molten metal ladles, and risers. Their high flexibility and superior liquid metal non-wetting characteristics make them perfect for direct molten metal contact without structural degradation.

When to Choose Ceramic Fiber Insulation

Engineers must specify ceramic fiber insulation over conventional insulation materials when operational temperatures exceed 600 degrees Celsius, when systems undergo rapid thermal cycling, when lightweight refractory linings are mandatory, or when environmental regulations demand soluble fiber compliance under European directives.

1. Operational Temperatures Exceeding 600 degrees Celsius: Whenever processing temperatures exceed the thermodynamic limits of mineral wool and fiberglass insulation, ceramic fiber insulation represents the industry standard choice capable of surviving continuous exposures up to 1350 degrees Celsius without melting or structural collapse.

2. Severe Thermal Cycling and Rapid Heating Demands: Batch furnace operations require frequent thermal cycling. Dense brick refractories suffer from severe spalling and thermal shock under rapid heating rates. Ceramic fiber insulation possesses virtually zero thermal shock sensitivity, permitting rapid ramp rates that maximize production throughput.

3. High-Performance Bio-Soluble Regulatory Compliance: Modern industrial plants prioritizing operator environmental health and safety often specify biosoluble fiber blankets. Designed with high chemical flexibility, soluble fiber blankets provide exceptional performance in refractory linings, heat containment, and metal transfer applications. These blankets excel over conventional refractory ceramic fibers in flexibility while offering superior environmental compliance, meeting strict European safety regulations under Directive 97/69/EC. They are available in standard densities of 6 and 8 pounds per cubic foot (96 and 128 kilograms per cubic meter), standard thicknesses of 1 inch and 2 inches, and standard widths of 24 inches and 48 inches (with custom dimensions available upon request), typically packaged in durable heavy-duty cartons for secure transport.

Working Principle of Anchored Ceramic Fiber Lining Modules: High-density refractory lining systems rely on pre-compressed modular construction. By utilizing stainless steel or heat-resistant nickel-chromium alloy anchors welded directly to the furnace shell plate, folded ceramic fiber insulation modules are secured tightly against one another. Upon releasing the temporary restraining bands during installation, the module expands laterally, completely sealing expansion gaps between adjacent blocks and creating a seamless thermal barrier.

Comparing Fiberglass vs. Ceramic Fiber Insulation

A comprehensive comparison reveals that while fiberglass insulation excels in cost-sensitive, low-temperature HVAC and building envelope applications below 540 degrees Celsius, ceramic fiber insulation provides superior thermal resistance, low thermal mass, chemical inertia, and mechanical durability essential for ultra-high-temperature industrial process equipment operating up to 1430 degrees Celsius.

Selecting the optimal insulation medium requires a detailed engineering analysis balancing thermal efficiency, structural requirements, operational environment, and lifecycle economics. Thermal conductivity profiles diverge significantly as operating temperatures increase. While fiberglass insulation displays low thermal conductivity at ambient and slightly elevated temperatures, its conductivity increases sharply as temperatures approach 400 degrees Celsius due to increased radiative heat transport through its lower-density fiber matrix. Conversely, ceramic fiber insulation maintains low, predictable thermal conductivity curves even at temperatures exceeding 1000 degrees Celsius, ensuring maximum energy retention in heavy industrial processing systems.

In industrial plant design, integrating pre-engineered Refractory Ceramic Fiber Modules Thermal Insulation into high-temperature furnace walls drastically reduces total furnace wall weight compared to conventional heavy refractory brickwork. Lightweight wall construction minimizes structural steel support costs and foundation load requirements. Furthermore, when evaluating total cost of ownership, utilizing advanced ceramic fiber insulation modules drastically reduces furnace pre-heating times, saving substantial energy costs across multi-year production campaigns.

From an environmental and environmental health perspective, both materials require strict engineering controls during handling. Modern soluble ceramic fiber insulation formulations meet strict European health standards under Directive 97/69/EC, providing safety assurance for high-temperature manufacturing plants operating in regulated global markets. Selecting high-density Refractory Ceramic Fiber Modules Thermal Insulation ensures long-term operational reliability, minimal maintenance downtime, and optimized thermal performance across high-temperature industrial environments.

Maintenance and System Inspection Best Practices: High-temperature thermal insulation systems require periodic diagnostic inspection using infrared thermography cameras to identify localized hot spots caused by physical mechanical damage or anchor failures. When inspecting ceramic fiber insulation module linings, maintenance engineers should ensure that compression joints remain tight and free of chemical vapor condensation. For fiberglass insulation wrapped around outdoor piping, routine inspection of protective aluminum or stainless steel jacketing is vital to prevent moisture ingress and severe Corrosion Under Insulation (CUI).

In summary, understanding the distinct thermodynamic properties, material compositions, and temperature boundaries of fiberglass insulation and ceramic fiber insulation is essential for engineering energy-efficient thermal management systems. While fiberglass insulation remains the benchmark solution for low-to-medium temperature structural and commercial mechanical systems, ceramic fiber insulation provides the ultimate heat containment, thermal shock protection, and chemical durability demanded by modern high-temperature industrial processing facilities.
