A ceramic fiber insulation blanket helps stop heat from escaping in factories. This light product uses alumina silicate fibers. These fibers let the blanket stand up to very high heat. A ceramic fiber insulation blanket saves energy. It also resists fire and gives safe, steady insulation. More people around the world want ceramic fiber insulation now.
Metric
Value (USD Million)
Year/Period
Market Size (Industrial Ceramic Fiber Insulation Blankets)
627
2024
Projected Market Size
880
2031
CAGR
4.8%
2025-2031
You can count on a ceramic fiber blanket to work well when you need ceramic insulation blanket solutions.
Ceramic fiber blankets use alumina-silicate fibers. They give strong and light insulation. They can handle very high heat up to 1430°C.
These blankets hold heat well with tiny air pockets. This saves energy and keeps equipment safe. They are used in power, steel, chemical, and solar industries.
They do not burn or get damaged by chemicals. They can handle quick temperature changes. They do not crack or break. This makes them safe and strong for hard jobs.
There are different grades and thicknesses to pick from. You can choose the right blanket for your heat needs. This helps the blanket work better and keeps things safe.
It is easy and fast to install them. Doing regular checks saves money. It stops heat loss and keeps equipment from getting ruined over time.
A ceramic fiber insulation blanket is made with alumina and silica. These are the main parts. Factories heat these materials to very high temperatures. They use melt blowing or spinning to make thin fibers. These fibers turn into a soft mat. The fibers are arranged in a special way. This makes lots of tiny holes inside the ceramic fiber insulation blanket. These holes help stop heat from passing through. This gives strong insulation and keeps heat where it is needed.
Alumina helps the ceramic fiber insulation blanket stay strong and handle heat. Silica makes it flexible and helps keep heat in. Sometimes, a little zirconia or chromium oxide is added. These help the ceramic fiber insulation blanket work in even hotter places and with harsh chemicals. By changing how much alumina and silica are used, factories can make the blanket for different jobs.

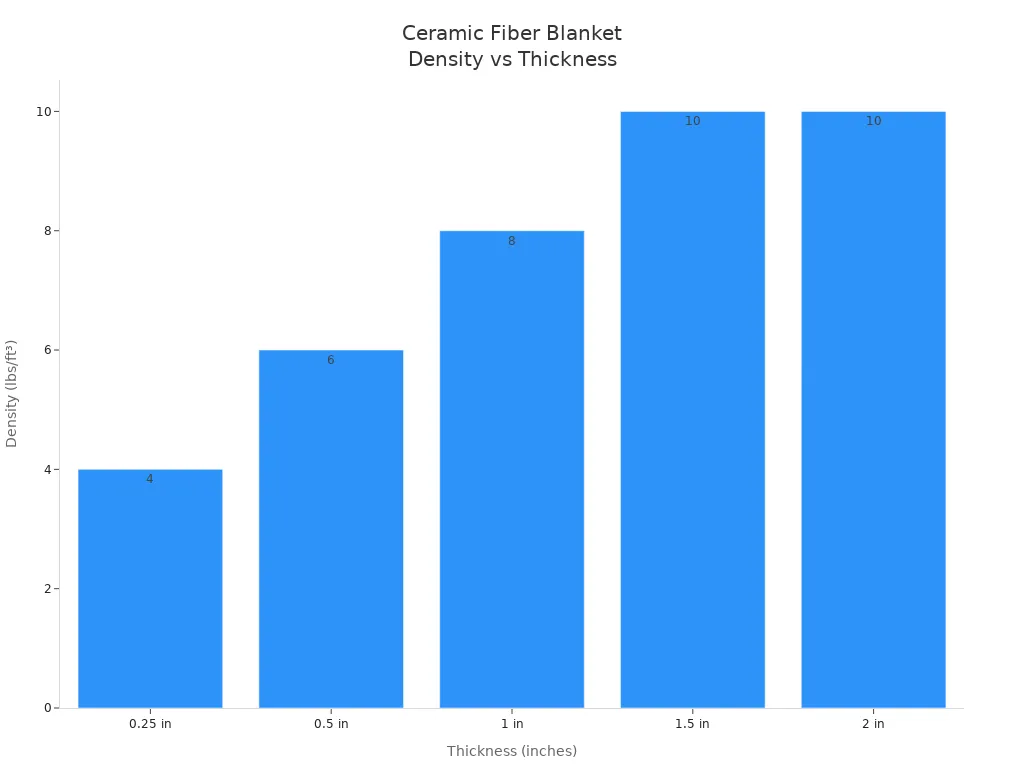

You can pick from many densities and thicknesses for ceramic fiber blanket insulation. Most industrial blankets are between 4 and 10 lbs/ft³ in density. They are between 0.25 and 2 inches thick. The most common density is 8 lbs/ft³. A usual thickness is 0.5 inches. These choices help you get the right insulation for your needs.
The way alumina silicate fibers are built also matters. The fibers shrink a bit when heated. They can form mullite, a special mineral. This changes how the blanket deals with heat. The fiber structure helps the blanket not break when temperatures change fast. The ceramic fiber insulation blanket keeps its shape and works well, even up to 1400°C.
When you use a ceramic fiber insulation blanket, you get many good things. Here are some key features that make it different from other insulation:
Made with alumina-silicate fibers for high heat stability.
Has very low thermal conductivity to keep heat in or out.
It is light, so it is easy to move and put in place.
It can handle fast temperature changes without cracking.
It is chemically safe and does not make fumes when first heated.
Comes in many densities and thicknesses for many uses.
Keeps working even after getting wet or touching chemicals.
Ceramic fiber blanket insulation does not store much heat. This means machines heat up and cool down faster. The blanket is lighter than old-style insulating bricks. It does not crack or break, even if you heat or cool it quickly. It has no binder and low chloride, so it is safe with stainless steel and other metals.
Here is a table that shows some usual properties of ceramic fiber insulation blankets:
Feature | Typical Range / Description | Importance / Distinguishing Aspect |
|---|---|---|
Composition | Alumina-silicate fibers | Basis of ceramic fiber insulation's high temperature stability |
Thermal Stability | Up to 1430°C | Higher than many other industrial insulations |
Density | 64–128 kg/m³ | Lightweight compared to insulating bricks |
Thermal Conductivity | 0.05–0.12 W/m·K at 500°C | Low thermal conductivity for energy efficiency |
Tensile Strength | 50–150 kPa | Mechanical durability and resistance to physical stress |
Linear Shrinkage | <3% after 24 hours at max temperature | Indicates dimensional stability under heat |
Chemical Resistance | Good acid and alkali resistance; low chloride content | Resists corrosion and chemical attack in harsh environments |
Binder Content | Inorganic and binder-free | Prevents fumes during initial heating |
Tip: You can use ceramic fiber insulation blankets in many industries. They are great for high heat insulation, fire safety, and saving energy. Their special build and features make them a top pick for tough jobs.
Ceramic fiber blanket insulation helps stop heat from leaving. The fibers inside trap air in many tiny pockets. These air pockets slow down heat moving through the blanket. This is why furnaces and kilns use it to keep heat inside. The blanket has low thermal conductivity, so heat does not escape easily. Your equipment stays hot inside but cool outside.
The fiber structure makes lots of small spaces that hold heat.
The blanket is light and does not keep much heat. Machines cool down fast when you need them to.
The material can handle quick temperature changes without cracking.
The blanket bends around odd shapes, so insulation covers everything.
Ceramic fiber blanket insulation works better than older materials. Fiberglass insulation cannot take heat above 500°C. Rock wool can go up to 1000°C, but it does not last as long in hotter places. Ceramic fiber blankets work at temperatures up to 1430°C (2600°F). This makes them a great pick for jobs with very high heat.
Material Type | Max Temperature | Thermal Conductivity | Flexibility | Weight |
|---|---|---|---|---|
Ceramic Fiber Blanket | 1430°C | Very Low | Highly Flexible | Ultra Lightweight |
Mineral Wool / Rock Wool | 650–1000°C | Moderate | Rigid Rolls | Medium |
Calcium Silicate Board | 650–1000°C | Moderate | Rigid Panels | Heavy |
Refractory Firebrick | 1200–1400°C | Moderate–High | Very Rigid | Very Heavy |
Note: Using ceramic fiber blanket insulation helps save energy and money. The blanket keeps heat where you want it and blocks it where you do not.
You need insulation that stays strong in tough places. Ceramic fiber blanket insulation gives you that safety. The blanket can face direct flames and high heat without falling apart. Makers use special ways to form the blanket so it keeps its shape. You do not have to worry about weak spots or holes.
The blanket does not collapse or turn to powder, even on hot surfaces. Some blankets have stainless steel wire for more strength. Others have coatings like vermiculite to help with fire resistance and surface strength. These things help the blanket last longer and protect your machines.
Ceramic fiber blanket insulation does not burn or make bad gases in a fire. The fibers stay strong, so the blanket keeps working. You can trust it to protect your machines and workers if there is an emergency.
The blanket keeps its shape even after long times in high heat.
It does not shrink, fray, or get damaged by chemicals.
You get good fire protection and do not need to fix it often.
Tip: Pick ceramic fiber blanket insulation for places where fire safety and lasting strength are important. The blanket’s design helps you meet safety rules and keeps your work running well.
It is important to know the temperature rating before picking a ceramic fiber insulation blanket. These blankets come in different grades. Each grade can handle a certain amount of heat. The main grades are 1050°C, 1260°C, 1400°C, and 1430°C. The highest number shows the most heat the blanket can take for a short time. For long use, you should choose a blanket with a rating about 200°C higher than your normal work temperature. For example, a 1260°C blanket is best for jobs up to 1000°C.

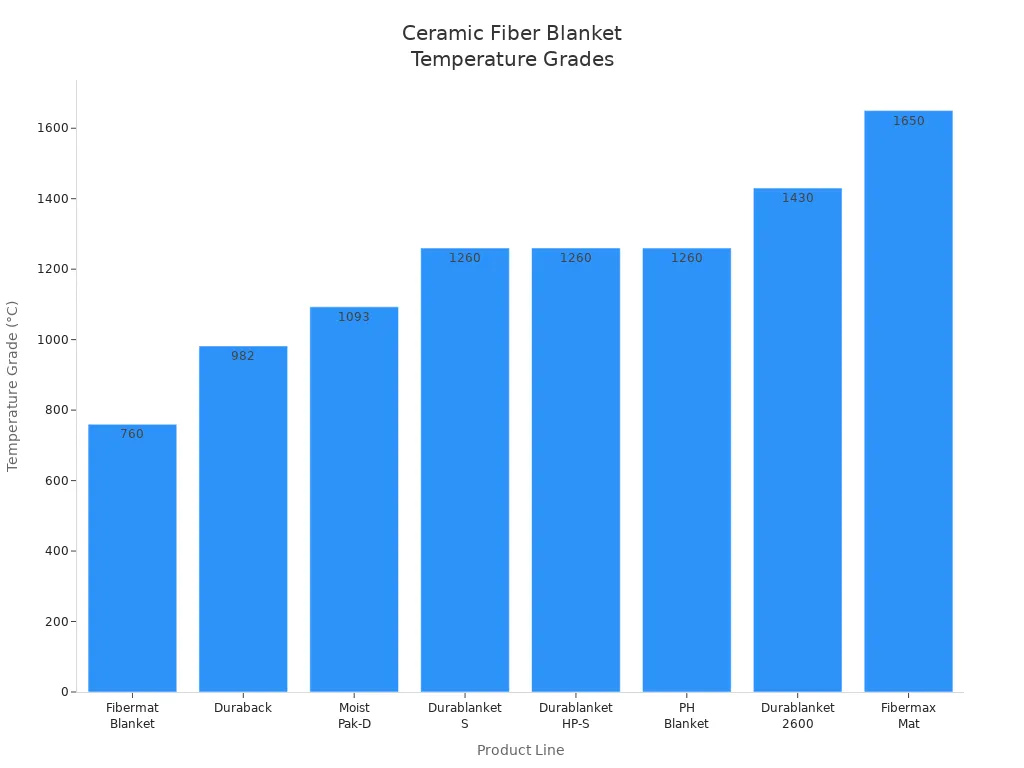

Here is a table that lists popular product lines and their temperature grades:
Product Line | Temperature Grade (°C/°F) | Recommended Operating Temperature (°F) | Melting Point (°C/°F) |
|---|---|---|---|
Duraback | 982°C (1800°F) | 1800°F | 1648°C (3000°F) |
Durablanket S | 1260°C (2300°F) | 2150°F | 1760°C (3200°F) |
Durablanket HP-S | 1260°C (2300°F) | 2200°F | 1760°C (3200°F) |
Durablanket 2600 | 1430°C (2600°F) | 2450°F | 1760°C (3200°F) |
PH Blanket | 1260°C (2300°F) | 2150°F | 1790°C (3260°F) |
Moist Pak-D | 1093°C (2000°F) | 1850°F | 1790°C (3260°F) |
Fibermat Blanket | 760°C (1400°F) | 1250°F | N/A |
Fibermax Mat | 1650°C (3000°F) | 2850°F | 1870°C (3400°F) |
You can see that each type is made for a different job. Some are for lower heat, while others are for very high heat in tough places.
Tip: Always pick the temperature grade of your ceramic fiber insulation blanket to match your equipment. This helps you get the best results and keeps things safe.
Each grade of ceramic fiber insulation blanket is good for a special job. If you use furnaces or kilns, you need a blanket that can take high heat. For general furnace lining or kiln insulation, a #6 density blanket (96 kg/m³, up to 1260°C) gives good flexibility and insulation. If you need more strength and higher heat resistance, a #8 density blanket (128 kg/m³, up to 1430°C) is better. This type is great for hard industrial jobs.
Some blankets have extra features. For example, a blanket with aluminum backing is stronger and reflects heat. You can also get ceramic fiber insulation blanket rolls and ceramic fiber insulation paper for special shapes or small spaces.
Grade/Property | Density (kg/m³) | Temperature Rating (°C) | Key Features | Suitable Industrial Applications |
|---|---|---|---|---|
#6 Density | 96 | Up to 1260 (Standard) | Balanced insulation and flexibility | Furnace lining, kiln insulation, general applications |
#8 Density | 128 | Up to 1430 (Zirconia) | High durability, strong heat resistance | Demanding furnace and kiln environments |
Aluminum Backing Option | N/A | N/A | Reflective, added strength | Mechanical reinforcement, reflective insulation |
You can use ceramic fiber insulation blanket rolls for pipes or curved surfaces. Ceramic fiber insulation paper and ceramic fiber paper insulation are good for gaskets or thin layers. These choices help you get the right fit for your project.
Note: Picking the right grade and type of ceramic fiber insulation blanket helps you save energy and keeps your equipment safe from heat loss.
Ceramic fiber insulation blankets are used in many industries. They help control heat, keep things safe, and save energy. Let’s see how different sectors use these materials.
Power plants use ceramic fiber insulation blanket rolls. These rolls keep heat inside boilers, turbines, and pipes. This helps save energy by stopping heat from escaping. The blankets also protect equipment from getting damaged. They help lower the cost to fix machines. When you cover gas turbines and exhaust systems, you make the plant safer. The plant can run for a longer time. The blankets are light, so you can put them in small spaces. Using them means you burn less fuel and make less pollution.
Tip: Ceramic fiber blanket insulation gives strong heat protection. It helps you reach your energy goals in power plants.
Steel mills and foundries need materials that can take a lot of heat. Ceramic fiber insulation blankets line furnaces, ladles, and rotary kilns. They keep heat inside, so you use less energy and save money. These blankets do not break when the temperature changes fast. They also do not get ruined by chemicals. This makes them last longer. You can use ceramic fiber insulation paper for gaskets and seals in hot places. The insulation keeps surfaces cooler, so workers are safer.
You use less energy.
Machines last longer.
Fixing things is faster and easier.
Chemical plants and glass factories deal with high heat and strong chemicals. Ceramic fiber insulation blanket rolls and ceramic fiber paper insulation help control heat in melting furnaces and reactors. They can cut heat loss by half. This means you pay less for energy and make less pollution. The insulation keeps workers and machines safe from hot surfaces. You can use ceramic fiber insulation blanket for quick repairs and to cover tanks and pipes.
Save energy in glass melting furnaces.
Keep temperature steady for better products.
Protect workers from very hot surfaces.
Make less pollution.
Stand up to chemicals from melted glass.
Solar and nuclear plants need insulation for very high heat and tough conditions. Ceramic fiber insulation blankets work well in these places. You can use them to cover boilers, flues, and pipes. The blankets bend around odd shapes and last a long time. They also help stop rust and lower noise. For jobs with high heat, you can trust ceramic fiber insulation blanket to keep things safe and working well.
️ Note: Special ceramic fiber insulation paper and blanket products meet strict safety and strength needs in solar and nuclear plants.
You can make your plant more energy efficient with ceramic fiber insulation. This material keeps heat inside furnaces, kilns, and pipes. When you use it, you lower energy use and save money. Many industries, like steel, power, and chemical plants, choose ceramic fiber insulation to cut energy loss. Here are some ways it helps:
Reduces heat transfer by up to 50% compared to old materials.
Lowers the amount of fuel you need, which means less carbon dioxide goes into the air.
Lightweight design makes it easy to install, saving time and labor.
Helps you meet energy-saving and emission rules.
A recent study found that switching to ceramic fiber insulation could cut global industrial CO2 emissions by over 8 million tons each year. You help the planet and your budget at the same time.
Ceramic fiber insulation lasts a long time, even in tough places. You can use it in high heat, up to 1400°C, without it breaking down. The fibers bend and fit around odd shapes, so you get full coverage. This flexibility means you can use it on pipes, tanks, and equipment with curves.
Ceramic fiber blankets have high thermal shock resistance and can last up to 12 years in ideal conditions. They work better than mineral wool in high-heat jobs, but you should protect them from strong impacts.
The strong fibers keep their shape and performance, even when machines vibrate or temperatures change fast. You get insulation that works well and does not need to be replaced often.
You can install ceramic fiber insulation quickly and safely. Follow these steps for best results:
Clean the area and measure the space.
Cut the blanket a bit larger for a snug fit.
Wear gloves and goggles for safety.
Place the blanket, smooth out wrinkles, and secure with metal pins or wire.
Seal the edges to stop heat loss.
Regular checks help you spot gaps or damage early. Removable blankets make maintenance easy. You spend less time and money on repairs because you can take them off and put them back fast. Over time, this saves you thousands in labor costs.
When you pick a ceramic fiber insulation blanket, you get many good things. This blanket can help you save up to 20% more energy. It also gives strong fire protection for your factory. The blanket stays tough, even in rough places. You can trust it because it meets ISO 9001 and CE rules. If you need help or want a price, talk to trusted suppliers. They can give you advice and support for your project.
Ceramic fiber insulation keeps heat inside furnaces and pipes. It helps save energy and protects machines from damage. Many factories use ceramic fiber insulation blanket for hot jobs.
First, measure the area you want to cover. Cut the ceramic fiber insulation blanket to fit the space. Use metal pins or wire to hold it in place. Always wear gloves and goggles for safety. You can use ceramic fiber insulation blanket roll for pipes or curved spots.
Ceramic fiber insulation paper stands up to most acids and alkalis. You can use it in chemical plants and glass factories. It stays strong and keeps heat in, even with harsh chemicals.
Ceramic fiber blanket insulation can take heat up to 1430°C (2600°F). Pick the right ceramic fiber insulation blanket for your job. Always check the temperature rating before you begin.
Ceramic fiber insulation is safe if you follow safety rules. Wear gloves, goggles, and a mask when working with it. The material does not burn or make harmful fumes.
