Silicon Carbide Plate Vs Cordierite Plate: Which Kiln Furniture Performs Better at High Temperature?

When evaluating high-temperature structural performance, Silicon Carbide (SiC) plates deliver vastly superior mechanical strength, high thermal conductivity, and heavy load-bearing capacity at extreme temperatures up to 1450°C to 1600°C. Conversely, Cordierite plates provide unmatched thermal shock resistance at lower initial costs, making them the premier choice for light-to-medium thermal cycles below 1300°C.

What you'll learn:

• Structural and material profiles of Silicon Carbide and Cordierite refractories

• Mechanical load and flexural strength evaluations under high temperatures

• Heat transfer mechanisms and energy efficiency in kiln operations

• Thermal expansion and shock resistance comparison

• Long-term atmospheric stability and chemical resistance

• Industry selection guidelines based on firing profiles and loads

• Maintenance protocols to maximize service life

Refractory Material Foundations: Silicon Carbide vs Cordierite

Understanding the performance of high-temperature kiln structural supports requires examining the physical microstructure of the refractory systems. Silicon Carbide features a rigid covalent crystal lattice that provides extreme hardness, thermal stability, and mechanical durability. Depending on the bonding phase—such as oxide-bonded, nitride-bonded, or recrystallized variations—the material properties adjust to meet specific operational stresses.

Cordierite is a magnesium aluminum silicate mineral frequently synthesized with mullite to form an optimized composite. This engineered composite combines the low thermal expansion of cordierite with the structural load-bearing capability of mullite at elevated temperatures.

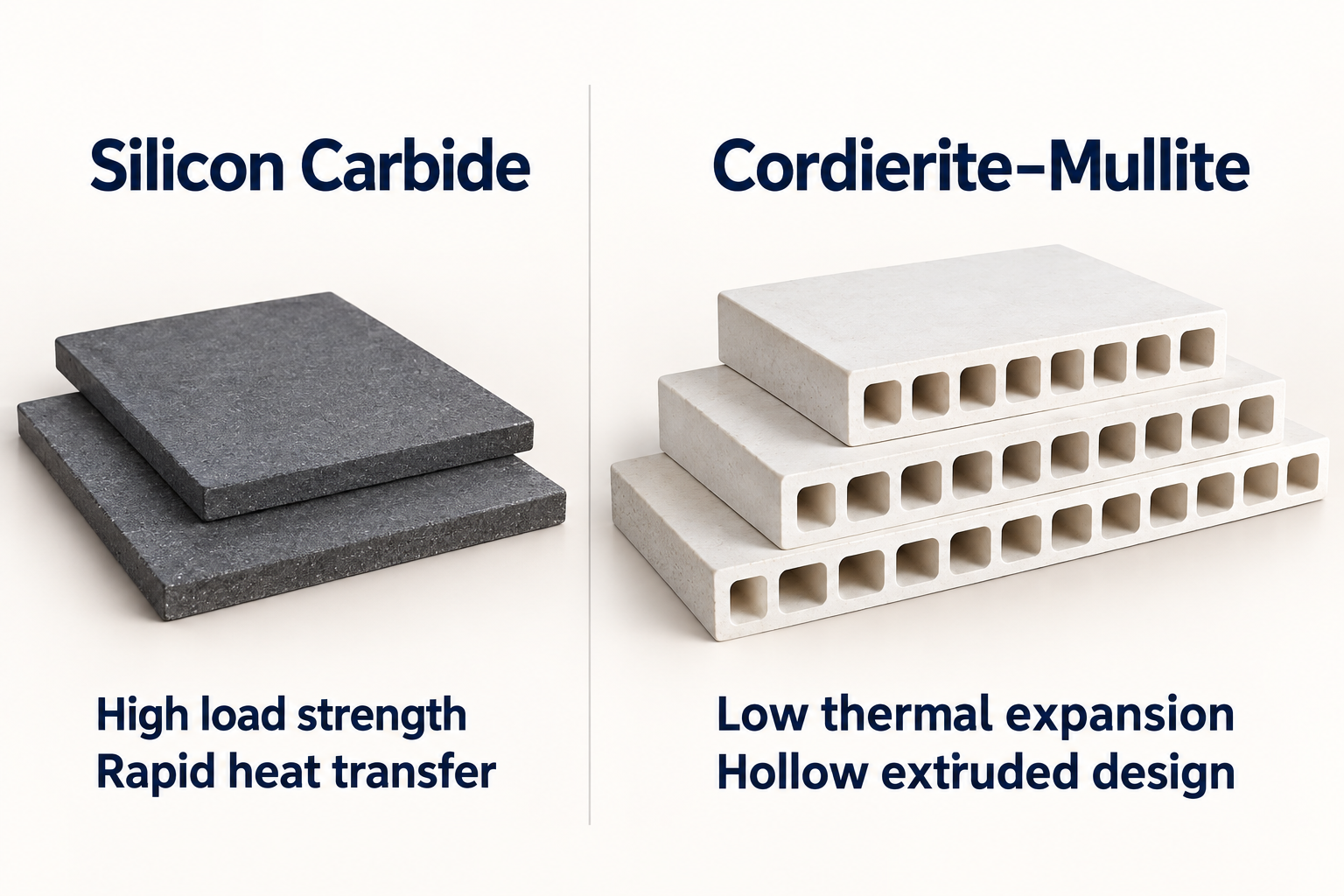

The manufacturing route dictates final density, porosity, and strength. Silicon Carbide plates are formed through high-pressure pressing or slip casting followed by high-temperature sintering, producing dense units capable of sustaining immense static loads. Engineered extruded cordierite mullite kiln furniture creates lightweight, hollow, or thin-walled structures that significantly reduce the thermal mass loaded into the kiln.

Microstructural Stability Under Thermal Load

The internal grain boundary distribution determines how each refractory resists structural deformation during extended high-temperature exposure. Silicon Carbide maintains a rigid structure that prevents intergranular sliding at elevated temperatures. Cordierite utilizes its silicate framework to accommodate thermal movement, though lower-grade compositions can undergo viscous softening near their upper temperature limits.

High-Temperature Mechanical Load and Flexural Strength

Mechanical strength at high temperatures is essential for kiln furniture performance. Kiln plates must withstand heavy product loads across wide spans without sagging, warping, or cracking over hundreds of firing cycles. Silicon Carbide exhibits remarkable flexural strength, retaining substantial load-bearing integrity well above 1350°C.

In contrast, Cordierite plates possess lower flexural strength and a higher volume of open porosity. As temperatures approach 1300°C, cordierite undergoes progressive thermal creep under continuous heavy loads, resulting in downward deflection over time.

To compensate for lower material strength, cordierite plates require greater wall thickness, which increases overall setting weight. Conversely, high-strength Silicon Carbide allows manufacturers to design ultra-thin plates that maximize usable firing space while supporting heavy product charges.

Load Deflection Dynamics

Under identical mechanical stress and thermal profiles, Silicon Carbide plates resist permanent deformation due to strong intergranular bonding. Cordierite plates require careful post spacing to prevent long-term deflection. Utilizing custom-extruded multi-channel hollow structures with Cordierite Kiln Furniture restores structural rigidity, enabling lighter profiles to carry higher loads safely.

Thermal Conductivity and Energy Efficiency in Kiln Operations

Thermal conductivity determines how rapidly heat passes through kiln furniture to the target product. Silicon Carbide offers high thermal conductivity, ensuring rapid heat distribution across the plate surface to minimize temperature gradients and improve firing consistency.

Cordierite exhibits much lower thermal conductivity, acting as a partial thermal insulator. This requires slower heating cycles to ensure uniform heat penetration, as rapid ramp rates can generate internal thermal stresses across thick plates.

From an energy management perspective, thin-section Silicon Carbide plates offer low thermal mass and rapid heat transfer, accelerating thermal response during fast-firing schedules. However, hollow-core cordierite profiles also effectively minimize structural weight, providing an energy-efficient alternative within standard firing limits.

Thermal Mass and Energy Utilization

The thermal mass of a kiln setting directly dictates energy consumption per product batch. Utilizing thin-wall designs made possible by dense Silicon Carbide or hollow cordierite profiles drastically reduces non-productive thermal weight, lowering fuel consumption and greenhouse gas emissions.

Thermal Shock Resistance and Expansion Dynamics

Thermal shock resistance allows refractory materials to endure sudden temperature changes without cracking or spalling. Cordierite is renowned for its low coefficient of thermal expansion, meaning it expands very little when heated.

Because cordierite develops minimal internal strain during rapid heating and cooling, it offers exceptional resistance to thermal shock spalling. This makes it ideal for firing schedules with frequent kiln openings or rapid cooling zones.

Silicon Carbide features a higher coefficient of thermal expansion but compensates through superior thermal conductivity, which rapidly dissipates localized heat concentrations. However, under extreme thermal quenching, dense Silicon Carbide plates can accumulate micro-cracks over repeated cycles.

Mechanics of Thermal Expansion Failure

When a refractory plate experiences temperature differentials across its surface, hotter regions expand more than cooler zones, generating tensile stress. In cordierite, low overall expansion limits internal strains to prevent crack initiation. In Silicon Carbide, rapid heat conduction quickly equalizes temperatures across the body to suppress thermal gradients.

Design Principle (Structural Optimization): To maximize service life under aggressive thermal cycles, industrial engineers incorporate stress-relief slots or rounded corners on rectangular plates to redistribute stress concentrations.

Degradation Mechanisms and High-Temperature Chemical Resistance

In oxidizing kiln atmospheres above 900°C, Silicon Carbide gradually forms a protective surface silica layer. Over many firing cycles, this silica layer slowly thickens, causing the plate to swell, gain weight, and eventually warp. In reducing atmospheres at extreme temperatures, Silicon Carbide can experience active degradation that weakens its structural matrix.

Cordierite is a fully oxidized material and is completely immune to high-temperature oxidation damage in both oxidizing and reducing atmospheres. However, cordierite is vulnerable to attack from volatile alkali compounds and aggressive glazes, which can form low-melting phases that cause localized surface softening and glaze adhesion.

Phase Transformations in Long-Term Firing

As Silicon Carbide plates age, the surface silica layer transitions into crystalline phases during thermal cycling, which can introduce localized strain during cooling. Cordierite remains dimensionally stable throughout its lifespan unless contaminated by aggressive chemical fluxes or overheated beyond its operating limit.

Application Environments and Kiln Furniture Selection Matrix

Selecting between Silicon Carbide and Cordierite plates requires matching their material properties to operational firing temperatures, atmospheric conditions, and load requirements. Silicon Carbide plates excel in demanding high-temperature, heavy-load, and fast-throughput environments such as technical ceramic sintering, powder metallurgy, and high-temperature porcelain production.

Cordierite plates are the industry standard for light-to-medium-duty operations below 1300°C, including tableware manufacturing, architectural tile firing, and electronic component production. Utilizing Cordierite Kiln Furniture allows plant managers to optimize initial capital costs while maintaining reliable performance within standard temperature limits.

Industrial Sector Comparison

1. Sanitaryware Manufacturing: High-capacity tunnel kilns utilize Silicon Carbide plates to support heavy vitrified loads, while lower-temperature operations rely on extruded cordierite-mullite batts to optimize refractory expenses.

2. Technical Ceramics: Sintering advanced structural substrates requires high dimensional stability and minimal sagging, making thin Silicon Carbide plates the preferred thermal support.

3. Tableware Production: High-volume ceramic dinnerware firing in fast-cycle kilns relies extensively on hollow extruded cordierite plates to handle rapid thermal ramping while saving energy.

Maintenance Protocols and Best Practices for Refractory Longevity

Extending refractory service life requires proper maintenance and handling. Both Silicon Carbide and Cordierite plates benefit from high-purity protective coatings—such as alumina or zircon washes—which act as sacrificial barriers to prevent glaze drips and molten fluxes from adhering to the plate surface.

Systematic inspection schedules help track plate planarity and surface condition. Plates exhibiting minor sagging should be flipped periodically to equalize gravitational creep stresses. When handling plates, operators must avoid mechanical impacts and point loads, as technical refractories are susceptible to brittle fracture.

Maintenance Protocol: All newly coated or repaired refractory plates must be completely dry before entering the firing zone. Residual moisture trapped inside the porous structure can rapidly expand into steam during early heating stages, leading to severe spalling or structural failure.
