Fused silica ceramic rolls have become the backbone of modern glass tempering furnaces and high-temperature material processing industries. As thermal processing technology advances, the demand for materials that can withstand extreme thermal shock while maintaining absolute dimensional stability has grown exponentially. These components serve as the critical transport mechanism within industrial ovens, ensuring that glass products maintain structural integrity under high heat without suffering surface defects.
Fused silica ceramic rollers are manufactured through a sophisticated process involving the precision casting and firing of high-purity amorphous silicon dioxide, followed by rigorous diamond grinding and quality inspection to ensure extreme thermal shock resistance and low thermal expansion.
Understanding the complexities of how these components are produced is essential for engineers, procurement specialists, and furnace operators aiming to optimize their thermal processing efficiency. By exploring the raw material selection, the slip casting techniques, the firing schedules, and the final finishing stages, we can better appreciate why these components remain the industry standard for high-temperature glass processing.
Introduction to Fused Silica Ceramic Rolls
Material Selection
Preparation Process
Manufacturing Fused Silica Ceramic Rollers
Quality Control
Applications
Application Areas
Advantages
Fused silica ceramic rolls are high-performance refractory components designed to withstand rapid temperature fluctuations while providing a stable, chemically inert surface for transporting materials in industrial glass tempering furnaces.
These rollers represent a pinnacle of material engineering, specifically tailored for the demanding environment of the glass industry. When glass is heated to its softening point, any inconsistency in the support surface or excessive thermal expansion of the rollers can lead to optical distortion or surface marking. Fused silica, with its unique amorphous structure, provides a near-zero coefficient of thermal expansion, ensuring that the rollers remain dimensionally stable even when subjected to the intense heat cycles of a tempering furnace.
The longevity and reliability of these components are not merely a product of the material itself but are heavily dependent on the precision of the manufacturing process. From the initial particle size distribution of the silica powder to the final assembly of the end-caps and shafts, every step is calculated to prevent crystallization (devitrification) and surface degradation. This introduction sets the stage for understanding how these essential parts are engineered to perform under the most grueling conditions.
The material selection process for fused silica ceramic rolls centers on utilizing high-purity amorphous silicon dioxide with extremely low levels of impurities to prevent early-stage devitrification during high-temperature operations.
The purity of the raw material is the most critical factor in determining the life cycle of fused silica rollers. Even trace amounts of alkali oxides, such as sodium or potassium, can act as catalysts that lower the viscosity of the glass phase and trigger the transformation of the amorphous structure into cristobalite. This transformation is detrimental, as it changes the volume of the material and ruins its thermal shock resistance.
Engineers prioritize materials with a $SiO_2$ content exceeding 99.8%. The particle size distribution is also carefully engineered to ensure optimal packing density during the forming process. A mix of fine and coarse particles allows for a dense green body, which translates into a stronger final product that is less prone to mechanical failure under the load of heavy glass sheets. By maintaining strict control over the raw material batches, manufacturers can ensure consistency in the physical properties of the finished rollers.
The preparation process involves blending ultra-pure silica sand with binding agents and water to create a stable slurry that can be cast into specialized molds without entrapping air bubbles.
Before the actual shaping begins, the silica powder must be refined to remove any contaminants that might cause "pinholes" or structural weak points. The slurry preparation is a delicate balancing act of rheology; if the slurry is too thin, particles will settle unevenly, leading to density gradients in the finished roller. If it is too thick, air bubbles become trapped, which will lead to surface defects when the roller is used in a high-speed furnace.
Once the slurry is optimized, it is degassed in a vacuum chamber. This step is vital to ensure that no microscopic air pockets exist in the body of the roller. The mixture is then ready for the casting stage. Manufacturers often add proprietary additives to improve the green strength of the product, allowing it to be handled safely before it enters the high-temperature kilns for final firing.
The manufacturing of fused silica ceramic rollers is primarily achieved through a high-precision slip casting method followed by a carefully controlled sintering process that vitrifies the silica without causing harmful phase changes.
Once the slurry is poured into the molds, the rollers undergo a solidification phase. This is often done using porous molds that draw the moisture out of the slurry at a uniform rate. Once the "green" roller has sufficient strength, it is removed from the mold. This raw form must be dried slowly to avoid cracking due to uneven shrinkage. The drying phase is the most sensitive time for the part, as it is still highly fragile.
After drying, the rollers are placed into industrial kilns. The firing profile is a closely guarded secret of the manufacturing trade. The temperature must rise at a rate that allows for the removal of binder materials without causing structural stress. The maximum temperature is kept just below the point where rapid devitrification occurs. This sintering process bonds the silica particles together, creating a solid, high-strength ceramic roll that is ready for precision machining.
Quality control for fused silica ceramic rolls involves a multi-stage inspection process that includes dimensional tolerance testing, ultrasonic flaw detection, and surface finish analysis to ensure high-speed operation reliability.
Because these rollers operate in environments where thousands of pieces of glass are processed every day, the margin for error is non-existent. A single roller with a slight deviation in diameter can cause the glass to vibrate or "ripple" during transit. Manufacturers utilize advanced laser measuring systems to ensure that the diameter of the roller is uniform across its entire length to within a fraction of a millimeter.
Beyond the physical dimensions, the rollers must undergo thermal cycling tests. Samples are moved in and out of hot zones to ensure they can withstand the stress without micro-cracking. By adhering to these stringent quality standards, producers ensure that the fused silica rollers provide the required lifespan and performance consistency for their end users.

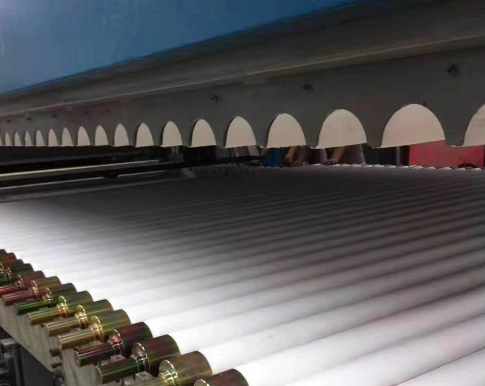

The primary application of fused silica ceramic rolls is found in continuous glass tempering furnaces, where they act as the transport medium for flat glass sheets subjected to heating and cooling cycles.
The unique properties of these rollers make them indispensable in industries where high-precision heat treatment is required. Their low thermal expansion coefficient allows them to pass through multiple heating and cooling stages without warping or cracking, which would be catastrophic for the delicate glass material being processed.
Beyond glass tempering, these rollers are also used in:
Solar panel manufacturing for heat treatment of photovoltaic cells.
Laboratory high-temperature furnaces.
Conveyor systems for ceramic tile firing.
Specialized industrial kilns for metal annealing.
In each of these scenarios, the fused silica ceramic roller serves a dual purpose: it provides the structural support needed to move the material through the furnace and acts as a heat-stable platform that does not react with the product being processed.
Fused silica ceramic rollers are predominantly applied in the automotive and architectural glass industries where precision tempering is required for safety and structural strength.
In the automotive sector, glass panels must be perfectly tempered to ensure they shatter into safe, blunt fragments upon impact. This requires that the glass be heated uniformly. The fused silica rollers facilitate this by ensuring even heat distribution across the surface of the glass, preventing "hot spots" that would lead to uneven stress distribution.
Similarly, in architectural glass, large sheets must be processed to create high-strength tempered glass for facades and windows. The weight of these large sheets necessitates high-strength rollers that do not sag or deform under the combination of weight and high heat. The widespread adoption of fused silica rollers in these sectors underscores their role as critical infrastructure in the global glass manufacturing ecosystem.
The primary advantages of fused silica ceramic rollers include exceptional thermal shock resistance, low thermal expansion, excellent chemical inertness, and a smooth surface finish that prevents scratching of delicate glass products.
These advantages combine to create a component that lowers the total cost of ownership for furnace operators. Because the rollers do not need to be replaced as frequently as metal or lower-grade ceramic rollers, downtime is minimized. Furthermore, the chemical inertness of the fused silica means that it will not react with the glass or the atmosphere inside the furnace, preventing the formation of deposits that could mar the glass surface.
Thermal Stability: Maintains shape under extreme temperature fluctuations.
Wear Resistance: Surface remains smooth even after thousands of hours of operation.
Cost Efficiency: High durability leads to fewer replacements and lower furnace maintenance costs.
Precision: Allows for the production of glass with superior optical clarity and flatness.
In summary, the engineering that goes into how fused silica ceramic rolls are made is a testament to the importance of precision in modern industrial manufacturing. By selecting the right materials and maintaining strict quality control, manufacturers provide the glass industry with the reliable, high-performance tools necessary to meet the demands of modern architecture and automotive design.
