| Size:7320 x 610 x 25 mm: | |
|---|---|
| Quantity: | |
YUFENG WOOL® BIO1000 BLANKET, YUFENG WOOL® BIO1300 BLANKET
YUFENGWOOL®
68061010

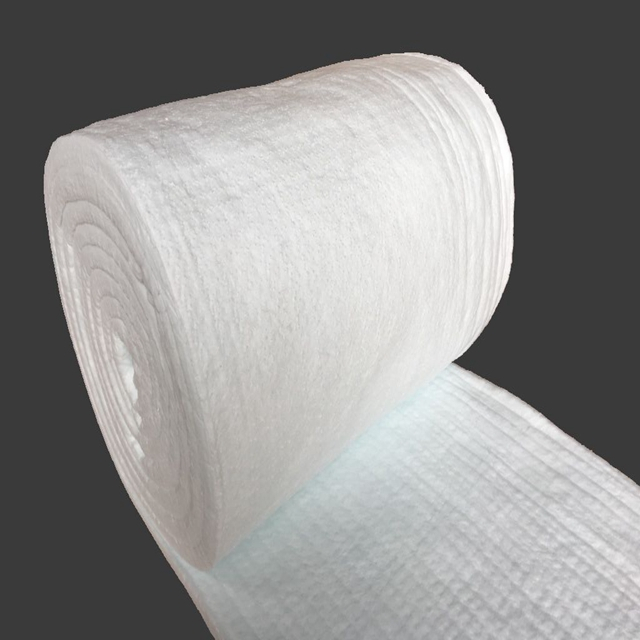

YUFENG WOOL®Bio Soluble Fiber Blanket is a body soluble fiber that utilizing a unique spinning technology and mechanical properties .
These special fibers are made from a blend of calcium ,silica and magnesium which give fiber the ability to support continuous applications under high temperature conditions.
Yufeng Wool® Soluble Fiber Blanket is flexible and competent in treating with the refractory linings ,thermal insulation and metals transfer , it has been proven superior and eco-friendly to traditional refractory ceramic fibers
The Soluble Fiber Blanket meets European regulatory requirement : Directive 97/69/EC
Standard Densities: 6, 8, lbs./cu. ft. (96, 128 kg/m3)
Standard Thicknesses: 1", 2"
Standard Widths: 24" and 48"
(Other specifications manufacture according to the customer request.)
Standard Packaging: Carton Boxes
Typical Applications
*Back-up insulation for dense refractory
*Annealing furnace linings
*Stress relieving blanket
*Heat treatment furnace linings
*Crude heater linings etc …
Key Features
* Low thermal conductivity.
*Very low heat storage.
*High tensile strength.
*Thermal shock resistance.
*Sound absorption.
*Light weight*Very low heat storage.
Technical Data
Unit | YUFENG WOOL® BIO1000 BLANKET | YUFENG WOOL® BIO1300 BLANKET | ||||
Classification Temperature | ℃ | 1100 | 1300 | |||
Max Working Temperature | ℃ | 1000 | 1100 | |||
Color | White | White | ||||
Density | Kg/M3 | 96 | 128 | 96 | 128 | |
lb/ft3 | 6 | 8 | 6 | 8 | ||
Tensile Strength | Mpa | ≥0.045 | ≥0.06 | ≥0.05 | ≥0.06 | |
Fiber Diameter | um | 3-5 | 3-5 | |||
Shot Content | % | ≤12 | ≤12 | |||
Linear Shrinkage after heating | % | ≤1.5(1000℃*24h) | ≤3.0 (1260℃*24h ) | |||
Thermal Conductivity at mean Temp. ℃(℉) | 200℃ | W/m.k | 0.065 | 0.049 | － | － |
400℃ | 0.098 | 0.087 | 0.11 | 0.10 | ||
600℃ | 0.153 | 0.145 | 0.15 | 0.14 | ||
800℃ | 0.212 | 0.191 | 0.22 | 0.20 | ||
Chemical Analysis | SiO2 | % | 55-65 | 70-80 | ||
CaO | % | 23-35 | 18-25 | |||
MgO | % | 5-10 | 0-4 | |||
The data are average results of test under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation.
